- mpnM22513-UNC1/4
- brandname: Walter Prototyp
- manufacturername: Walter Prototyp

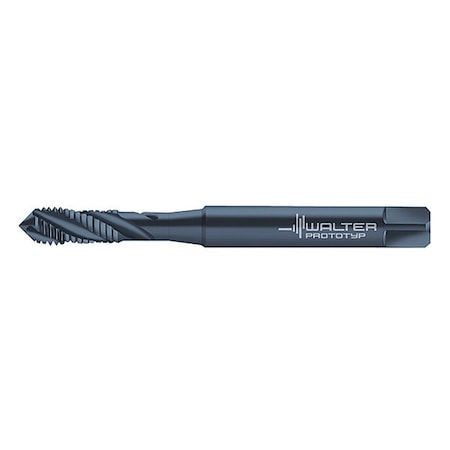

Walter Tools M22513-UNC1/4 Paradur HSS Machine Tap, VAP Finish, 7 mm Shank Diameter, 10 mm Cutting Length, 80 mm Overall Length, 1/4-20 Size
- Brand: Walter Tools
- PartNumber: M22513-UNC1/4
- Model: 6149931
- Size: 1/4-20
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Walter
- Label: Walter
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | #3 |
| 65% Thread Drill Size | #5 |
| 75% Thread Drill Size | #7 |
| Class of Fit | 2B |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | Germany |
| Cutting Direction - Mac. | Right Hand |
| Drill Bit Size | 0.2010 in |
| Extended Neck | Yes |
| Features | For Long Chipping Mater. |
| Helix Angle | 40 Degrees |
| Item | Spiral Flute Tap |
| List Number | M22513 |
| Measurement System | Fractional Inch |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 3-1/4", 80.00 mm |
| Pitch Diameter Limit | 2B |
| Primary Material Applic. | Stainless Steel |
| Primary Material Applic. | M |
| Secondary Material Appl. | Steel |
| Secondary Material Appl. | P |
| Series | Paradur X?pert P |
| Shank Dia. | 7.00 mm, 1/4" |
| Shank Length | 50.00 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 5.50mm |
| Standards | DIN 2184-1 |
| Tap Chamfer | Plug, Modified Bottom, . |
| Tap Dimension Type | Inch |
| Tap Finish | VAP, Steam Oxide |
| Tap Grouping | Individual |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 2184-1 |
| Tap Size | 1/4" |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1/4"-20 |
| Tap Thread Type | UNC |
| Thread Direction | Right Hand |
| Thread Length | 3/8", 10.00 mm |
| Thread Limit | H5, H6 |
| Thread Limit / Class of. | H5 / 2B, H6 / 2B, H5, H. |
| Thread Size | 1/4"-20 |
| Thread Standard | UNC |
| Threads per Inch | 20 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2518107 | 46.69 | 1 | In Stock | | Walter Prototyp | 0.02 | 46.69 @ 1 |
| Grainger | 428N79 | 49.66 | 1 | In Stock | | WALTER PROTOTYP | | 49.66 @ 1 |
