Walter Tools A1163-4.3

mpnA1163-4.3
brandname: Walter Titex
manufacturername: Walter Titex

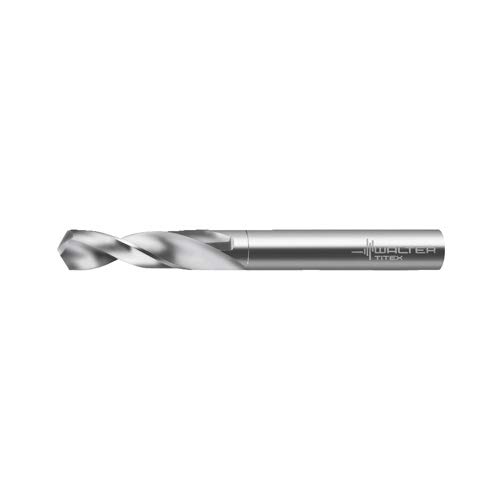

Walter Tools A1163-4.3 4.3 mm Solid Carbide Twist Drill, 16 mm Length of Cut, 12.9 mm Maximum Cut Depth, 24 mm Extension Length, 58 mm Overall Length

Walter Tools A1163-4.3 4.3 mm Solid Carbide Twist Drill, 16 mm Length of Cut, 12.9 mm Maximum Cut Depth, 24 mm Extension Length, 58 mm Overall Length

zoom

Brand: Walter Tools
PartNumber: A1163-4.3
Model: 5057572
PackageQuantity: 1
Binding: Misc.
Manufacturer: Walter
Label: Walter

Attributes

Key	Value
Coolant Fed	Non-Coolant Through
Cutting Direction	Right Hand
Decimal Equivalent	0.1693
Depth x Dia. Ratio	3xD
Depth:Dia. Ratio	3xD
Drill Bit Dimension Type	Metric
Drill Bit Finish	Bright (Uncoated)
Drill Bit Grouping	Drill Bit
Drill Bit Material	Carbide
Drill Bit Point Angle	118 Degrees
Drill Bit Size	4.30 mm
Drill Diameter Tolerance	H7
Drill Length Class	Jobber Length
Drill Point Length	1.29mm
Drilling Depth	16.00mm
Flute Length	24.00 mm
Flute Type	Spiral
Item	Jobber Length Drill Bit
Material	Carbide
Maximum Drilling Depth	24 mm
Number of Flutes	2
Overall Length	58.00 mm
Shank Dia.	4.30 mm
Shank Length	34.00 mm

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G8288996	28.99	1	In Stock		Walter Titex	0.02	28.99 @ 1
	sustainablesupply.com	C1421219	33.1	1	In Stock		Walter Tools	0.02	33.1 @ 1
	Raptor Supplies	AF8TLY	41.520726	1	In Stock		WALTER		41.520726 @ 1
