Walter Tools A3382XPL-20

B017BM85W4

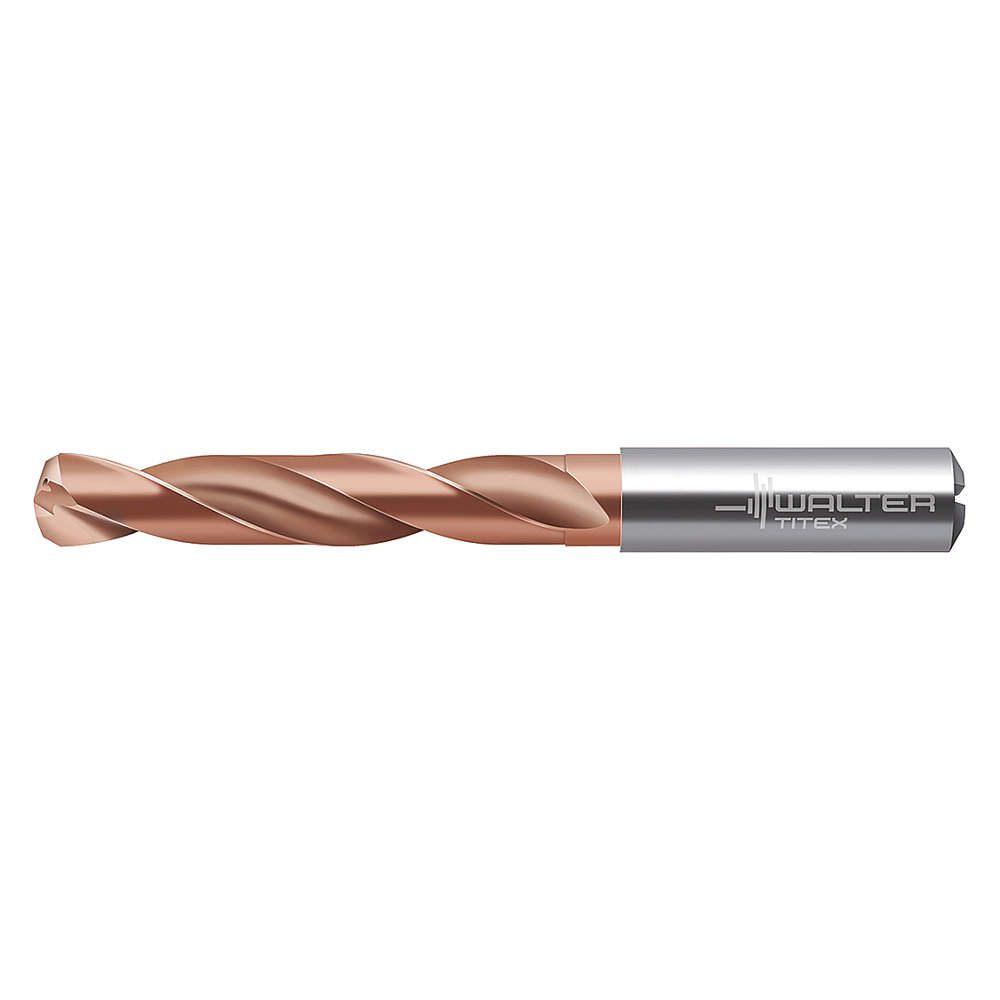

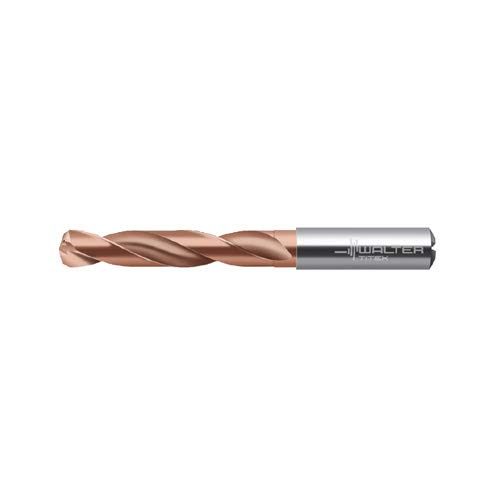

Walter Tools A3382XPL-20 X?treme CI 20 mm Solid Carbide Coolant Through Drill, 77 mm Length of Cut, 100 mm Maximum Cut Depth, 101 mm Extension Length, 153 mm Overall Length

Walter Tools A3382XPL-20 X?treme CI 20 mm Solid Carbide Coolant Through Drill, 77 mm Length of Cut, 100 mm Maximum Cut Depth, 101 mm Extension Length, 153 mm Overall Lengthzoom

Attributes

Key Value
ApplicationFor Cast Iron, High-Tem.
Coolant FedCoolant Through
Coolant ThroughYes
Country of Origin (subj.Germany
Cutting DirectionRight Hand
Decimal Equivalent0.7874
Depth x Dia. Ratio5xD
Depth:Dia. Ratio5xD
Drill Bit Dimension TypeMetric
Drill Bit FinishAlCrN
Drill Bit GroupingDrill Bit
Drill Bit MaterialSolid Carbide
Drill Bit Point Angle140 Degrees
Drill Bit Point TypeSelf-Centering Point
Drill Bit Size20.00mm
Drill Diameter ToleranceM7
Drill Length ClassJobber Length
Drill Point Length3.64mm
Drilling Depth77.00mm
Finish - MachiningAlCrN
Flute Length101.00 mm
Flute TypeSpiral
GradeK30F
ItemJobber Length Drill Bit
List NumberA3382XPL
Material - MachiningCarbide
Material Grade - Machin.K30F
Maximum Drilling Depth77 mm
Measurement SystemMetric
Number of Coolant Holes2
Number of Flutes2
Number of Pieces1
Overall Length153.00 mm
Point TypeSelf-centering
Primary Material Applic.Cast Iron
Primary Material Applic.N
Secondary Material Appl.Aluminum, Brass, Bronze.
Secondary Material Appl.N
SeriesX.Treme CI
Shank Dia.20.00 mm
Shank Length50 mm
Shank Type - MachiningStraight
Sheeter DrillNo
StandardsDIN 6537

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG8446225678.131In StockWalter Titex1.18678.13 @ 1
thumbzoomsustainablesupply.comC14231221041.471In StockWalter Tools1.181041.47 @ 1
thumbzoomRaptor SuppliesAF8UGU1211.7437281In StockWALTER1211.743728 @ 1
