- mpnA3486TIP-8.5
- brandname: WALTER TITEX
- manufacturername: WALTER TITEX

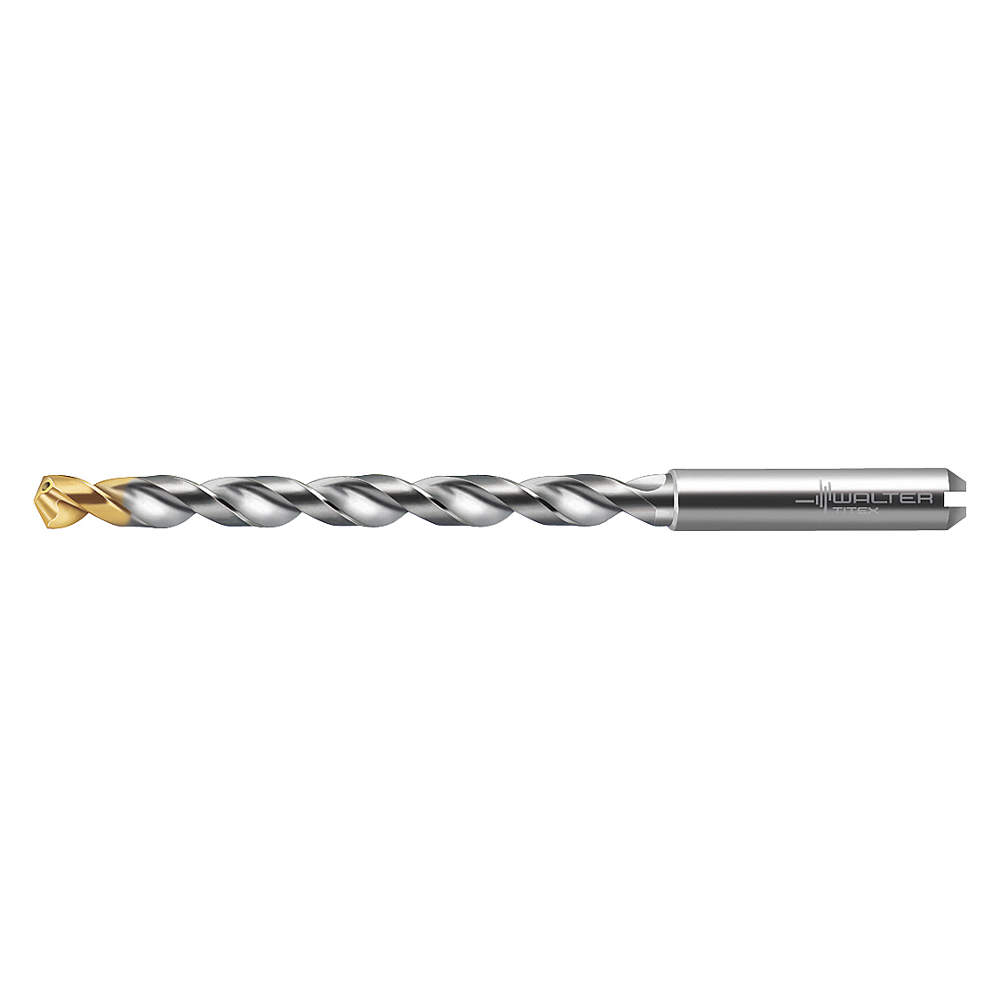

Walter Tools A3486TIP-8.5 Alpha 44 8.5 mm Solid Carbide Coolant Through Drill, 76 mm Length of Cut, 68 mm Maximum Cut Depth, 91 mm Extension Length, 133 mm Overall Length
- Brand: Walter Tools
- PartNumber: A3486TIP-8.5
- Model: 5064189
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Walter
- Label: Walter
Attributes
| Key | Value |
|---|
| Application | Steel, Stainless Steel,. |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Country of Origin (subj. | Germany |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.3346 |
| Depth x Dia. Ratio | 8xD |
| Depth:Dia. Ratio | 8xD |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | TiN Tip |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 130 Degrees |
| Drill Bit Point Type | Self-Centering Point |
| Drill Bit Size | 8.50 mm |
| Drill Diameter Tolerance | H6 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 1.98mm |
| Drilling Depth | 76.00mm |
| Flute Length | 91.00 mm |
| Flute Type | Spiral |
| Grade | K30F |
| Item | Jobber Length Drill Bit |
| List Number | A3486 |
| Material - Machining | Carbide |
| Material Grade - Machin. | K30F |
| Maximum Drilling Depth | 76 mm |
| Measurement System | Metric |
| Number of Coolant Holes | 2 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 133.00 mm |
| Point Type | Self-centering |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | K, P |
| Secondary Material Appl. | Cast Iron, Composite, N. |
| Secondary Material Appl. | K, M, O, S |
| Series | Alpha 44 |
| Shank Dia. | 10.00 mm |
| Shank Length | 40 mm |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | DIN 6537 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G6185627 | 304.59 | 1 | In Stock | | Walter Titex | 0.2 | 304.59 @ 1 |
 | Raptor Supplies | AF8QDG | 589.4579925 | 1 | In Stock | | WALTER | | 589.4579925 @ 1 |
