WALTER TITEX DC150-03-07.500A0-WJ30RE

mpnDC150-03-07.500A0-WJ30RE
brandname: WALTER TITEX
manufacturername: WALTER TITEX

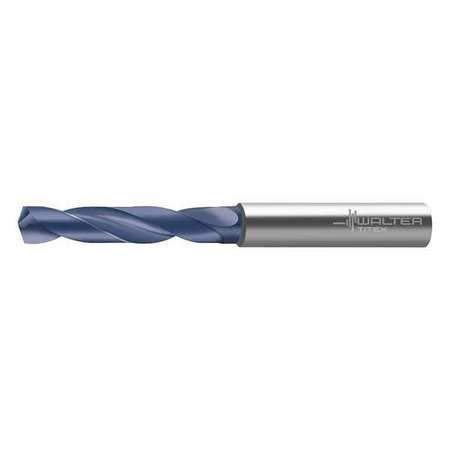

Jobber Drill,7.50mm,Carbide

Jobber Drill,7.50mm,Carbide

zoom

Brand: WALTER TITEX
PartNumber: DC150-03-07.500A0-WJ30RE
Manufacturer: WALTER TITEX
Label: WALTER TITEX

Attributes

Key	Value
Application	General mechanical engi.
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin (subj.	China
Cutting Direction	Right Hand
Decimal Equivalent	0.2953
Depth x Dia. Ratio	3xD
Depth:Dia. Ratio	3xD
Drill Bit Dimension Type	Metric
Drill Bit Finish	TiNAl
Drill Bit Grouping	Drill Bit
Drill Bit Material	Solid Carbide
Drill Bit Point Angle	140 Degrees
Drill Bit Point Type	Self-Centering Point
Drill Bit Size	7.50 mm
Drill Diameter Tolerance	M7
Drill Length Class	Jobber Length
Drill Point Length	1.36mm
Drilling Depth	29.00mm
Finish - Machining	TiNAl
Flute Length	41.00 mm
Flute Type	Spiral
Grade	WJ30RE
Item	Jobber Length Drill Bit
List Number	DC150-03
Material - Machining	Carbide
Material Grade - Machin.	WJ30RE
Maximum Drilling Depth	29 mm
Measurement System	Metric
Number of Flutes	2
Overall Length	79.00 mm
Point Type	Self-centering
Primary Material Applic.	Cast Iron, Steel
Primary Material Applic.	K, P
Secondary Material Appl.	Aluminum, Brass, Bronze.
Secondary Material Appl.	H, M, N, O, S
Series	Perform
Shank Dia.	8.00 mm
Shank Length	36 mm
Shank Type	Straight
Shank Type - Machining	Straight
Sheeter Drill	No
Standards	DIN 6537 K

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G0280616	47.86	1	In Stock		Walter Titex	0.1	47.86 @ 1
	Raptor Supplies	AH9NWU	81.8011935	1	In Stock		WALTER		81.8011935 @ 1
