- mpnDC150-12-04.100A1-WJ30TA
- brandname: WALTER TITEX
- manufacturername: WALTER TITEX

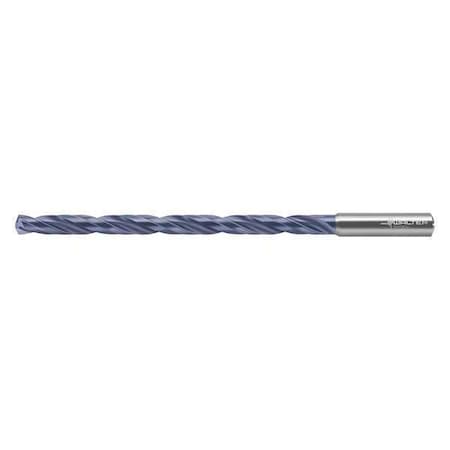

Walter Titex- DC150-12-04.100A1-WJ30TA Drill
- Brand: Walter
- PartNumber: DC150-12-04.100A1-WJ30TA
- Model: DC150-12-04.100A1-WJ30TA
- Color: Violet/grey
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Titex
- Label: Titex
Attributes
| Key | Value |
|---|
| Application | For General Drilling, G. |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Country of Origin (subj. | China |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1614 |
| Depth x Dia. Ratio | 12xD |
| Depth:Dia. Ratio | 12xD |
| Dimension Type | Metric |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | TiAlN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 140 Degrees |
| Drill Bit Point Type | Split point |
| Drill Bit Size | 4.10 mm |
| Drill Diameter Tolerance | M7 |
| Drill Length Class | Extra Long |
| Drill Point Length | 0.75mm |
| Finish | TiNAl |
| Finish - Machining | TiAlN |
| Flute Length | 64.00 mm |
| Flute Type | Spiral |
| Grade | WJ30TA |
| Item | Extra Long Drill Bit |
| List Number | DC150-12 |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machin. | WJ30TA |
| Maximum Drilling Depth | 56.00 mm |
| Measurement System | Metric |
| Metric Size | 0.16mm |
| Number of Coolant Holes | 2 |
| Number of Flutes | 2 |
| Overall Length | 102.00 mm |
| Point Angle | 140 Degrees |
| Point Type | Split point |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | H, K, N, P, S |
| Secondary Material Appl. | Composite, Graphite, St. |
| Secondary Material Appl. | M, O |
| Series | Perform |
| Shank Dia. | 6.00 mm |
| Shank Length | 36.00 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 4.10mm |
| Standards | TP-NORM 65 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G7257778 | 124.29 | 1 | In Stock | | Walter Titex | 0.06 | 124.29 @ 1 |
