Walter Tools DCGT11T302FS-1 WDN10

B08XNYH1KL

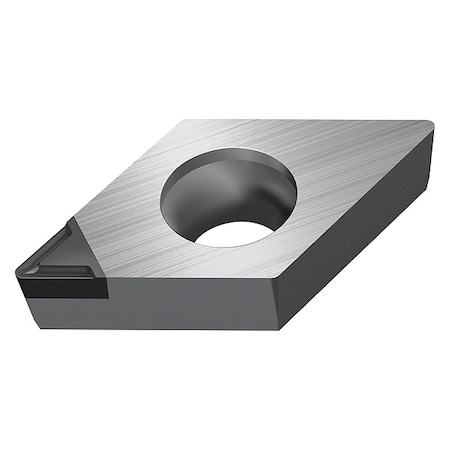

Diamond Turning Insert,DCGT,PCD

Diamond Turning Insert,DCGT,PCDzoom

Attributes

Key Value
ANSI CodeDCGT3(2.5)0.5FS-1
ANSI NumberDCGT3(2.5)0.5FS-1 WDN10
BrandWALTER VALENITE
Cast Iron (K) Compatibi.No
Catalog PageN/A
Chip-BreakerYes
Chip-Breaker CodeFS-1
Clearance Angle7 Degrees, 7 ?
CoatingUncoated
Corner Radius0.0080 in, .5
Country of OriginGermany
Country of Origin (subj.Germany
Cutting ApplicationTurning
Cutting DirectionNeutral
Cutting Edge Length11.63mm
Depth of Cut0.10 to 3.50mm
For Use WithToolholders, Boring Bars
GradeWDN10
Hardened (H) Compatibil.No
Included Angle55 ?, 55 Degrees
Inscribed Circle3/8 in, 3
Insert ApplicationFinishing
Insert CodeDCGT32.5.5
Insert Holding Type40 Degrees to 60 Degre.
Insert MaterialPCD
Insert ShapeDiamond
Insert Size32.50.5
Insert StyleDCGT
Insert Thickness0.1560"
ISO NumberDCGT11T302FS-1
ItemDiamond Turning Insert
Item?449W64
Manufacturer GradeWDN10
MaterialPCD
Material - MachiningPolycrystalline Diamond
Measurement SystemFractional Inch
Mfr. Model?DCGT11T302FS-1 WDN10
Mounting Hole Dia.0.173"
Mounting StyleScrew
No. of Edges1
Non Ferrous (N) Compati.Yes
Nose Radius0.008"
Number of Cutting Edges1
Primary Material Applic.Aluminum, Brass, Bronze.
Primary Material Applic.N
RakePositive
Relief Angle7 Degrees
ShapeRhombic
Stainless (M) Compatibi.No
Steel (P) CompatibilityNo
Super Alloy (S) Compati.No
Thickness2.5, 5/32 in
UNSPSC23171618
Workpiece CompatibilityNonferrous (N)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG479877782.4422Walter Valenite0.0582.44 @ 2
Grainger449W6489.7712WALTER VALENITE89.77 @ 2
