Walter Tools DCMT070202-PF4 WPP01

B017BJAPWK

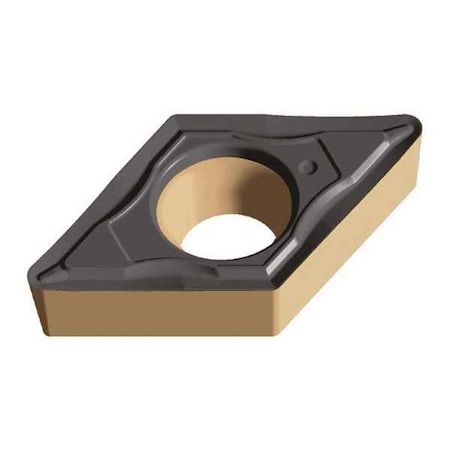

Walter Tools DCMT070202-PF4 WPP01 Carbide Tiger-Tec Positive Indexable Turning Insert, 0.008" Corner Radius, 1/4" IC, 3/32" Thick, 0.004" - 0.039" Depth of Cut (Pack of 10)

Walter Tools DCMT070202-PF4 WPP01 Carbide Tiger-Tec Positive Indexable Turning Insert, 0.008" Corner Radius, 1/4" IC, 3/32" Thick, 0.004" - 0.039" Depth of Cut (Pack of 10)zoom

Attributes

Key Value
ANSI CodeDCMT2(1.5)0.5-PF4 WPP01
ANSI NumberDCMT3(2.5)1
Cast Iron (K) Compatibi.Yes
Chip-BreakerYes
Chip-Breaker CodePF4
Clearance Angle7 Degrees
CoatingCVD
Corner Radius0.0080"
Country of Origin (subj.Germany
Cutting ApplicationTurning
Cutting DirectionNeutral
Cutting Edge Length7.75mm
Finish - MachiningTiCN+Al2O3+TiN
For Use WithToolholders, Boring Bars
GradeWPP01
Hardened (H) Compatibil.No
Included Angle55 Degrees
Inscribed Circle1/4"
Insert ApplicationFinishing
Insert Holding Type40 Degrees to 60 Degre.
Insert MaterialCarbide
Insert ShapeDiamond
Insert Size21.50.5
Insert StyleDCMT
Insert Thickness0.0940"
ISO NumberDCMT070202-PF4 WPP01
ItemDiamond Turning Insert
Manufacturer GradeWPP01
MaterialCarbide
Material - MachiningCarbide
Measurement SystemFractional Inch
Mounting Hole Dia.0.110"
Mounting StyleScrew
No. of Edges2
Non Ferrous (N) Compati.No
Nose Radius0.0080"
Number of Cutting Edges2
Primary Material Applic.Steel
Primary Material Applic.P
RakePositive
Relief Angle7 Degrees
ShapeRhombic
Stainless (M) Compatibi.No
Steel (P) CompatibilityYes
Super Alloy (S) Compati.No
Thickness3/32"
Workpiece CompatibilityCast Iron (K), Hardened.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG792133594.51010Walter Valenite94.5 @ 10
