Attributes
| Key | Value |
|---|---|
| ANSI Code | SNMG433-RM5 |
| ANSI Number | SNMG433-RM5 WMP20S |
| ANSI Project - Inscribed Circle | 4 |
| Cast Iron (K) Compatibility | No |
| Chip-Breaker | Yes |
| Chip-Breaker Code | RM5 |
| Clearance Angle | 0 Degrees |
| Coating | CVD |
| Coating Process | CVD |
| Corner Radius | 3/64 in |
| Country of Origin (subject to change) | Germany |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.70mm |
| Depth of Cut | 1.50 to 5.00mm |
| Finish - Machining | TiCN+Al2O3+TiCN |
| For Use With | Toolholders, Boring Bars |
| Grade | WMP20S |
| Hardened (H) Compatibility | No |
| Included Angle | 90 Degrees |
| Inscribed Circle | 1/2 in |
| Insert Application | Roughing |
| Insert Code | SNMG433 |
| Insert Holding Type | Straight Hole |
| Insert Material | Carbide |
| Insert Shape | Square |
| Insert Size | 433 |
| Insert Style | SNMG |
| Insert Thickness | 0.1880" |
| ISO Number | SNMG120412-RM5 |

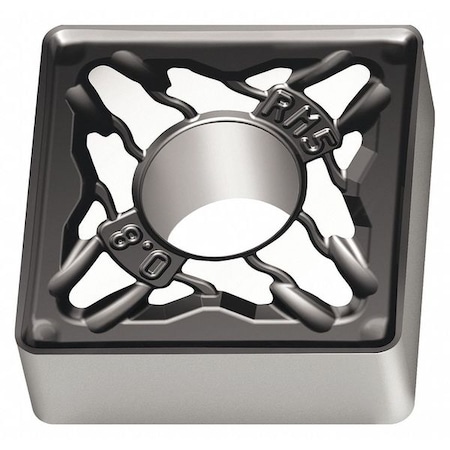

| Item | Square Turning Insert |
| Manufacturer Grade | WMP20S |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Clamp |
| No. of Edges | 8 |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.047" |
| Number of Cutting Edges | 8 |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application ISO Code | M, P |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Shape | Square |
| Stainless (M) Compatibility | Yes |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | Yes |
| Thickness | 3 |
| Workpiece Compatibility | Stainless (M), Steel (P), Super Alloy (S) |
