Walter Tools TCGT090204-PF2 WK1

B017BJ5SOA

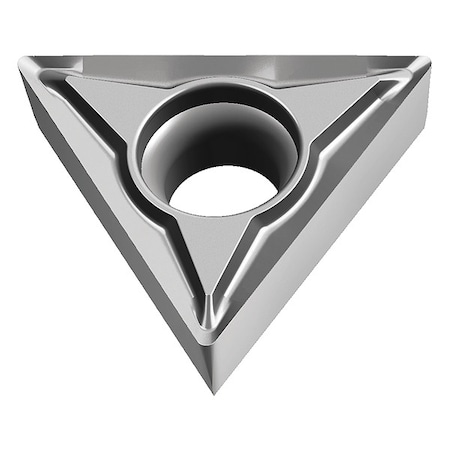

Walter Tools TCGT090204-PF2 WK1 Carbide Tiger-Tec Positive Indexable Turning Insert, 1/64" Corner Radius, 7/32" IC, 3/32" Thick, 0.008" - 0.098" Depth of Cut (Pack of 10)

Walter Tools TCGT090204-PF2 WK1 Carbide Tiger-Tec Positive Indexable Turning Insert, 1/64" Corner Radius, 7/32" IC, 3/32" Thick, 0.008" - 0.098" Depth of Cut (Pack of 10)zoom

Attributes

Key Value
ANSI CodeTCGT1.8(1.5)1-PF2 WK1
ANSI NumberTCGT1.8(1.5)1-PF2
Cast Iron (K) Compatibi.No
Chip-BreakerYes
Chip-Breaker CodePF2
Clearance Angle7 Degrees
CoatingUncoated
Corner Radius0.4 mm
Country of Origin (subj.Germany
Cutting ApplicationTurning
Cutting DirectionNeutral
Cutting Edge Length9.62 mm
Depth of Cut0.20 mm to 2.50 mm
Finish - MachiningBright (Uncoated)
For Use WithSeries STFCR, STFCL, ST.
GradeWK1
Hardened (H) Compatibil.No
Included Angle60 Degrees
Inscribed Circle7/32 in
Insert ApplicationFinishing
Insert Holding Type40 Degrees to 60 Degre.
Insert MaterialCarbide
Insert ShapeTriangle
Insert Size1.81.51
Insert StyleTCGT
Insert Thickness0.0937"
ISO NumberTCGT090204-PF2 WK1
ItemTriangle Turning Insert
Manufacturer GradeWK1
MaterialCarbide
Material - MachiningCarbide
Measurement SystemMetric
Mounting StyleScrew Clamp
No. of Edges3
Non Ferrous (N) Compati.Yes
Nose Radius0.0157"
Number of Cutting Edges3
Primary Material Applic.Aluminum, Brass, Bronze.
Primary Material Applic.N
RakePositive
Relief Angle7 Degrees
Secondary Material Appl.Nickel, Titanium
Secondary Material Appl.S
ShapeTriangle
Stainless (M) Compatibi.No
Steel (P) CompatibilityNo
Super Alloy (S) Compati.No
Thickness2.38 mm
Through Hole Inside Dia.2.5 mm
Workpiece CompatibilityNonferrous (N)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomsustainablesupply.comC142650316.92110Walter Tools0.5516.92 @ 10
thumbzoomZoroG9687343123.01010Walter Valenite0.55123.0 @ 10
