WEG 00118ET3H143TC-W22

B08VDM5H48

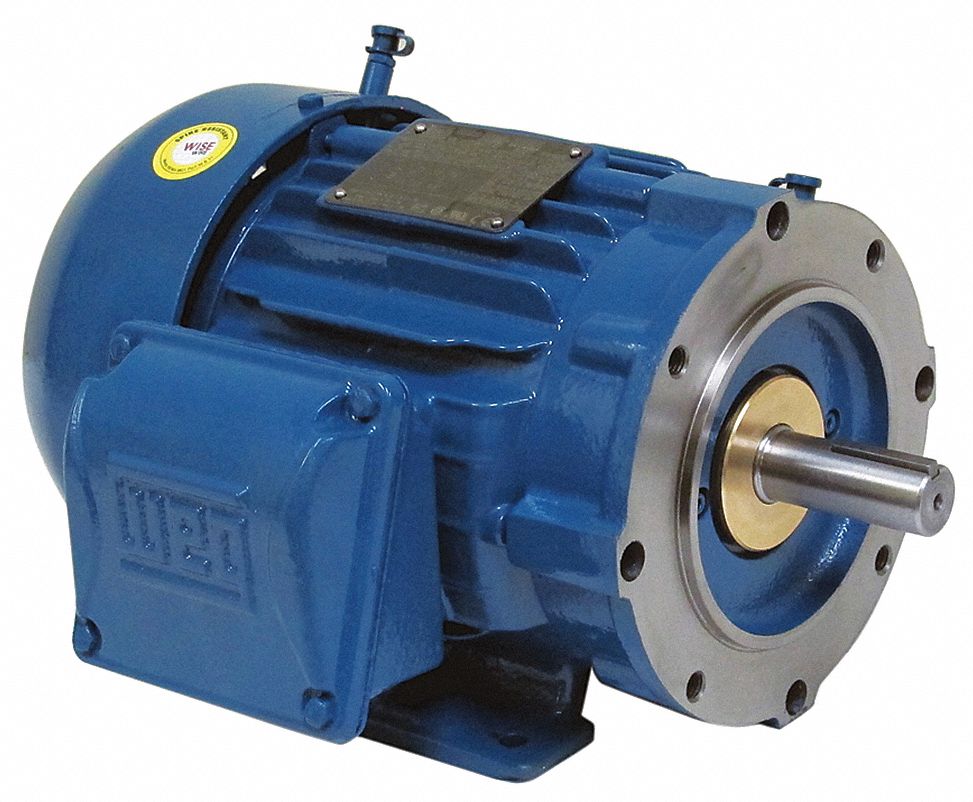

Weg 1 HP General Purpose Motor, 3-Phase, 1765 Nameplate RPM, Voltage 575, Frame 143TC - 00118ET3H143TC-W22

Weg 1 HP General Purpose Motor, 3-Phase, 1765 Nameplate RPM, Voltage 575, Frame 143TC - 00118ET3H143TC-W22zoom

Attributes

Key Value
Amperage Rating1.18 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 1HP 4P 143/5TC WF.
Dimensions13.358 in L
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %85.5 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight49.00
Family SeriesWEG Electric Motors
FL Amps1.13
FL Efficiency85.5
FlangesFlange C
Footnotes20:1 CT and 1000:1 VT
FRAME143/5TC
Frame143-5TC, 143TC, 145TC, .
Frame MaterialCast Iron
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps1.18
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Ins. ClassF
Insulation ClassClass F
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number00118ET3H143TC-W22
Kw0.75
Length Less Shaft11 1/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00118ET3H143TC-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:00118ET3H143TC-W22
Model12445606
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Enclosure DesignTEFC
Motor Frame MaterialCast Iron
Motor Mounting TypeFOOT
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
Nameplate RPM1800
NEMA DesignNone
NEMA Frame143TC
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency85.5
Nominal Voltage575 VAC, 600 VAC
Number of Poles4
Number of Speeds1
Output Rating1 hp
Overall Length13.358
Part Number00118ET3H143TC-W22
Phase3, Three, 3 ph
Product TypeGeneral Purpose
RotationCW/CCW
RPM1760, 1,800 RPM, 1800
RPM Group1701-1800
RPM Range1,701-1,800
Service Factor1.25
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Shaft Size7/8 in Dia x 2-1/4 in L
Speed (RPM)1800
StandardNEMA MG-1
StandardsCE, CSA, NOM, UL
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxLeft position
UPC:7909158051304
Usable @ 200VNo
Usable @ 208VNo
Voltage575 V, 575V AC, 575V, 5.
VOLTAGE575
Voltage (AC)575 VAC
Voltage Compatibility575V AC
Volts575
Weight46.7 lb, 48.850000
WEIGHT50

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial00118ET3H143TC-W22416.251In Stock17WEG416.25 @ 1
thumbzoommotorsandcontrol.com00118ET3H143TC-W22416.251In StockWEG Electric49.0416.25 @ 1
thumbzoomZoroG6633313416.251In Stock26Weg94.8416.25 @ 1
kscdirect.comWEG 00118ET3H143TC-W22426.231In StockWEG ELECTRIC CORP426.23 @ 1
thumbzoomMRO Supply1312125438.311In StockWEG438.31 @ 1
thumbzoomGalco00118ET3H143TC-W22-WEG455.841In StockWEG Electric455.84 @ 1
thumbzoomindustrialrefrigerationparts.com00118ET3H143TC-W22485.581In StockWEG48.85485.58 @ 1
thumbzoomDealers Electric00118ET3H143TC-W22506.731In StockWeg49.0506.73 @ 1
thumbzoomPurvis00118ET3H143TC-W22507.271In StockWEG507.27 @ 1
thumbzoomRadwell00118ET3H143TC-W22520.01In StockWEG520.0 @ 1
thumbzoomvfds.com00118ET3H143TC-W22555.01In StockWEG555.0 @ 1
thumbzoomNational Supply NetworkB873235761.121In StockWeg Electric Motors761.12 @ 1
thumbzoomsustainablesupply.comC1487774770.971In StockWEG94.8770.97 @ 1
thumbzoomRaptor SuppliesAA4JCW800.90530651In StockWEG800.9053065 @ 1
