WEG 00136EG3E143T-W22

B00BC8HJM6

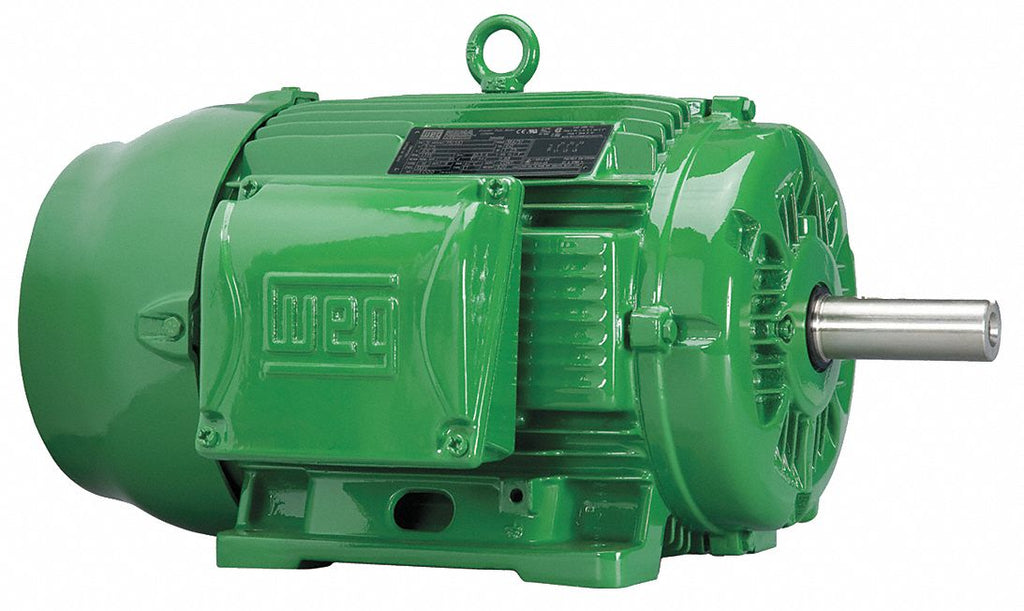

WEG 00136EG3E143T-W22 NEMA Super Premium Efficiency Severe Duty and General Purpose Electric Motor, 1 HP, 3-Phase, 3485 RPM, 208-230/460 V, 50/60 Hz, Frame 143/5T

WEG 00136EG3E143T-W22 NEMA Super Premium Efficiency Severe Duty and General Purpose Electric Motor, 1 HP, 3-Phase, 3485 RPM, 208-230/460 V, 50/60 Hz, Frame 143/5Tzoom

Attributes

Key Value
Amperage Rating2.7/1.35 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationSuper Premium
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Degree of ProtectionIP55
Description:MOTOR 1HP 2P 143/5T WFF2
Dimensions13.358 in L
Drive End Flange TypeStandard
Efficiency %84 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight42.00
Family SeriesWEG Electric Motors
FL Amps1.35
FL Efficiency84.0
FlangesWithout Flanges
Frame143T, 143/5T
Frame RemarksFooted, Super Premium
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps2.7/1.40
Gross Weight0 lbs
Hertz60
Horsepower1 hp
HP1
Hz60
Insulation ClassClass F
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number00136EG3E143T-W22
Length Less Shaft11 1/4 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00136EG3E143T-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
MFG Part #:00136EG3E143T-W22
Model12604504
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Nameplate RPM3,485
NEMA Frame143T
Net Weight0 lbs
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating1 hp
Overall Length13 1/2 in
Part Number00136EG3E143T-W22
Phase3, 3 ph
Product TypeGeneral Purpose
RotationCW/CCW
RPM3600, 3485, 3,600 RPM
RPM Range3,001-3,600
Service Factor1.25
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Shaft Size7/8 in Dia x 2-1/4 in L
Speed (RPM)3600
StandardNEMA MG-1
StandardsCE, CSA, NOM, UL
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Terminal BoxLeft position
UPC:7909158388615
Voltage208-230/460//380 V, 230.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight45.950000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial00136EG3E143T-W22426.751In Stock17WEG426.75 @ 1
thumbzoommotorsandcontrol.com00136EG3E143T-W22426.751In StockWEG Electric42.0426.75 @ 1
kscdirect.comWEG 00136EG3E143T-W22436.981In StockWEG ELECTRIC CORP436.98 @ 1
thumbzoomMRO Supply1312127449.361In StockWEG449.36 @ 1
thumbzoomGalco00136EG3E143T-W22-WEG467.331In StockWEG Electric467.33 @ 1
thumbzoomDealers Electric00136EG3E143T-W22467.551In StockWeg42.0467.55 @ 1
thumbzoomindustrialrefrigerationparts.com00136EG3E143T-W22497.821In StockWEG45.95497.82 @ 1
thumbzoomZoroG7134023536.991In StockWeg44.0536.99 @ 1
thumbzoomPurvis00136EG3E143T-W22578.11In StockWEG578.1 @ 1
thumbzoomRadwell00136EG3E143T-W22600.01In StockWEG600.0 @ 1
thumbzoomsustainablesupply.comC1491228710.341In StockWEG44.0710.34 @ 1
thumbzoomNational Supply NetworkB873765780.071In StockWeg Electric Motors780.07 @ 1
thumbzoomRaptor SuppliesAC8BEN875.99122651In StockWEG875.9912265 @ 1
