Weg Electric 00136ET3EAL80-W22

mpn00136ET3EAL80-W22
brandname: WEG
manufacturername: WEG

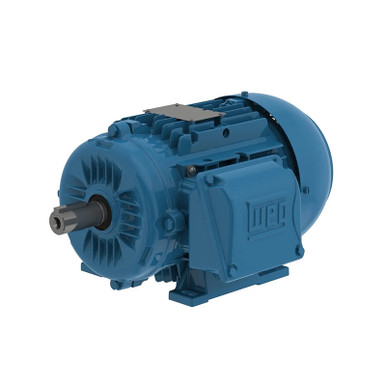

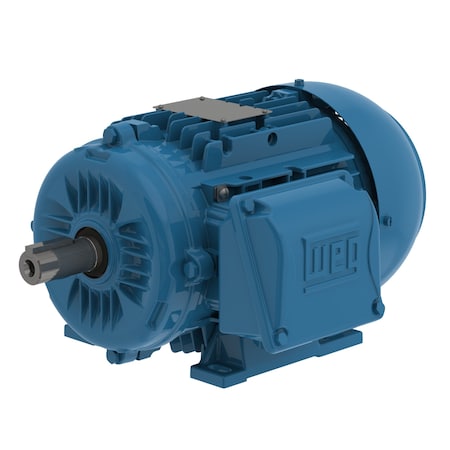

WEG Electric 00136ET3EAL80-W22, 1.5HP, 3600 RPM, 3PH, 230V/460V, 80 Frame, Standard Flange, Foot Mount, TEFC, IEC Metric Motor

WEG Electric 00136ET3EAL80-W22, 1.5HP, 3600 RPM, 3PH, 230V/460V, 80 Frame, Standard Flange, Foot Mount, TEFC, IEC Metric Motor

zoom

Brand: Weg Electric
PartNumber: 00136ET3EAL80-W22
Manufacturer: Weg Electric
Label: Weg Electric

Attributes

Key	Value
Amperage Rating	4.06/2.03 A
Application Type	General Purpose AC Moto.
Bearing Type	Ball
Classification	IEC-AL
Condition	New
Constant Torque Speed R.	20:1
Construction	Aluminum
Country of Origin (subj.	Brazil
Degree of Protection	IP55
Description:	MOTOR 1.5HP 2P 80 WAF1
Dimensions	10.866 in L
Drive End Flange Type	Standard
Enclosure	TEFC, IC411 -TEFC
Enclosure Type	Totally Enclosed Fan Co.
Estimated Weight	29.00
FL Amps	2.03
FL Efficiency	84.0
Flanges	Without Flanges
FRAME	80
Frame	80
Frame Remarks	Aluminum, W22 Sev Duty
Frequency	60 Hz
Frequency Rating	60 Hz
Full Load Amps	2.03
Hertz	50, 60
Horsepower	1.5 hp
HP	1.5, 1.1, 1.3
Hz	60/50
Insulation Class	Class F
Item Condition	Factory New
Manufacturer	WEG Electric, WEG, WEG .
Material	Cast Iron
MFG Part #:	00136ET3EAL80-W22
Model	13971582
Motor Enclosure Design	TEFC
Mounting	FOOT, Foot Mount, Foot-.
Mounting Type	Footed
Nameplate RPM	3600//3000
Number of Poles	2
Number of Speeds	1
Output Rating	1.5 hp
Overall Length	10.866
Part Number	00136ET3EAL80-W22
Phase	3, 3 ph
Product Type	IEC Metric
Replaces	00136ET3EAL80
Rotation	CW/CCW
RPM	3600
Service Factor	1.25
Special Features	IEC Metric Motors
Speed	3450 rpm
Speed (RPM)	3000, 3600
Standard	NEMA MG-1
Supplier:	WEG ELECTRIC CORP
Synchronous Speed	3600 rpm
Terminal Box	Right position
UPC:	7909323256282
VOLTAGE	230/460//190/380
Voltage	190V, 230V, 380V, 460V,.
Volts	208/230/460
WEIGHT	29
Weight	31.110000

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Walker Industrial	00136ET3EAL80-W22	333.0	1	In Stock	17	WEG		333.0 @ 1
	MRO Supply	5739446	350.64	1	In Stock		WEG		350.64 @ 1
	motorsandcontrol.com	00136ET3EAL80-W22	351.79	1	In Stock		WEG Electric	29.0	351.79 @ 1
	kscdirect.com	WEG 00136ET3EAL80-W22	377.93	1	In Stock		WEG ELECTRIC CORP		377.93 @ 1
	industrialrefrigerationparts.com	00136ET3EAL80-W22	388.46	1	In Stock		WEG	31.11	388.46 @ 1
	Zoro	G202666919	417.91	1	In Stock	7	Weg	29.0	417.91 @ 1
	Dealers Electric	00136ET3EAL80-W22	440.31	1	In Stock		Weg	29.0	440.31 @ 1
	vfds.com	00136ET3EAL80-W22	444.0	1	In Stock		WEG		444.0 @ 1
