Weg Electric 00156OT3H143JM-SG

B07BQ4GSCJ

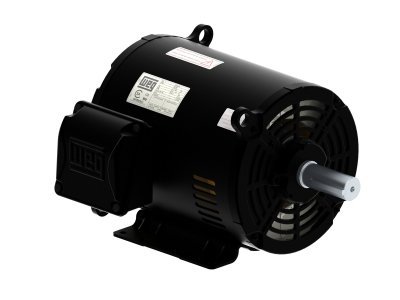

WEG Electric 00156OT3H143JM-SG, 1.5HP, 3600 RPM, 3PH, 575V, 143/5JM Frame, C-Face Flange, Foot Mount, Open, Close Coupled Pump Motor

WEG Electric 00156OT3H143JM-SG, 1.5HP, 3600 RPM, 3PH, 575V, 143/5JM Frame, C-Face Flange, Foot Mount, Open, Close Coupled Pump Motorzoom

Attributes

Key Value
Amperage Rating1.5 A
Application TypeJet Pump (JM/JP) Motors
ClassificationJM-JP & Jet Pump
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Description:MOTOR 1.5HP 2P 143/5JM .
Dimensions13.701 in L
Drive End Flange TypeC-Face
EnclosureODP, Open, IC01 - ODP
Enclosure TypeOpen Drip-Proof
Estimated Weight33.00
Family SeriesWEG Electric Motors
FL Amps1.50
FL Efficiency84.0
FlangesFlange C
Frame143JM, 143/5JM
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1.5 hp, 1-1/2 hp
HP1.5
Item ConditionFactory New
Item Number00156OT3H143JM-SG
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00156OT3H143JM-SG
MFG Part #:00156OT3H143JM-SG
Model14375577
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
NEMA Frame143/5JM
Net Weight0 lbs
Nominal Voltage575 VAC, 600 VAC
Number of Poles2
Number of Speeds1
Output Rating1.5 hp
Part Number00156OT3H143JM-SG
Phase3, 3 ph
Product TypePump
RPM3600, 3,600 RPM
Service Factor1.15
Speed3600 rpm
Speed (RPM)3600
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Terminal BoxLeft position
TypeClosed Couple Pump
UPC:7909492005278
Variable Torque Speed R.1000:1
Voltage575V, 575 V
Voltage (AC)575 VAC
Voltage Rating575 VAC
Volts575
Weight31.650000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply5739482485.281In Stock14WEG33.0485.28 @ 1
thumbzoomWalker Industrial00156OT3H143JM-SG505.51In Stock17WEG505.5 @ 1
thumbzoommotorsandcontrol.com00156OT3H143JM-SG505.51In StockWEG Electric33.0505.5 @ 1
kscdirect.comWEG 00156OT3H143JM-SG509.61In StockWEG ELECTRIC CORP509.6 @ 1
thumbzoomGalco00156OT3H143JM-SG-WEG553.571In StockWEG Electric553.57 @ 1
thumbzoomindustrialrefrigerationparts.com00156OT3H143JM-SG589.681In StockWEG31.65589.68 @ 1
thumbzoomDealers Electric00156OT3H143JM-SG615.381In StockWeg34.0615.38 @ 1
