brand:
manufacturer:
Description:

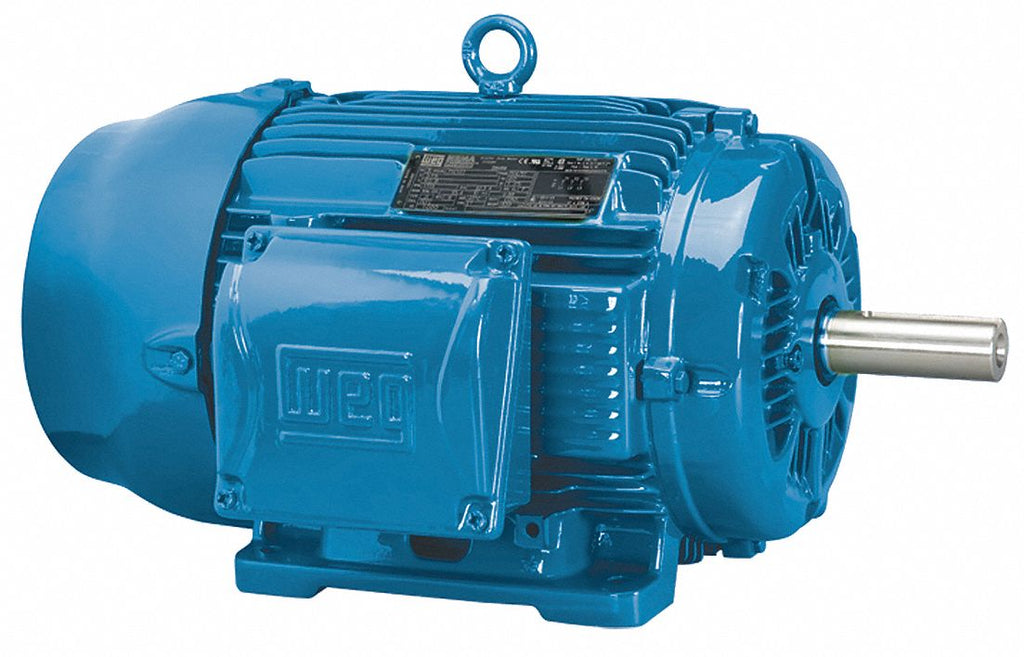

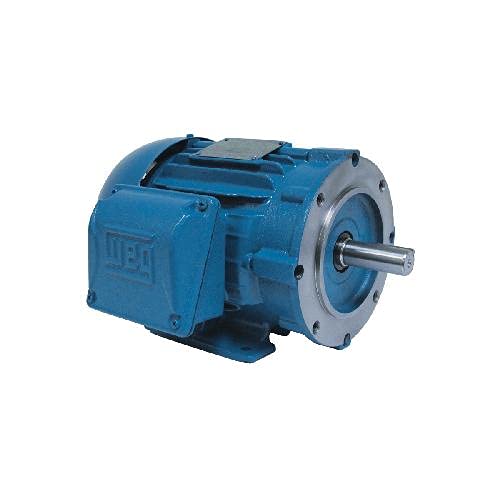

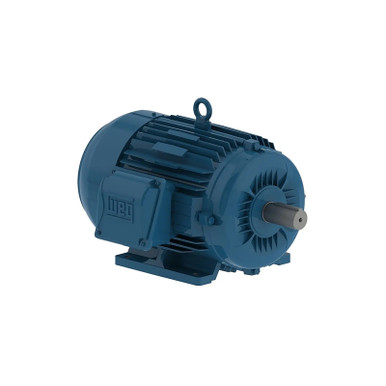

00158ET3E145T-W22 1.5HP 1800 3 60 208-230/460V TEFC-NEMA Pr
Weight:
3.75
Weight:
25.0 LB
Preferred Price:
536.3
Price:
536.3
Min Simple Price:
303.0
Absolute Min Price:
430.26
Min Price:
430.26
Dimensions:
[17.0, 11.0, 9.0]
qty:
21
simpleSku:
NTY0MA:::00158ET3E145T-W22
sku:
NTY0MA::JA:00158ET3E145T-W22@y0
condition:
11
seller:
electricmotorwholesale.com
amzMan:
weg
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Amperage Rating | 4.36 to 4.04/2.02 A |
| Application Type | General Purpose AC Motors |
| Bearing Type | Ball |
| Classification | Three Phase |
| Composition, Construction, Material, Motor Frame Material | Cast Iron |
| Condition | New |
| Constant Torque Speed Range | 20:1 |
| Degree of Protection | IP55 |
| Description: | MOTOR 1.5HP 4P 143/5T WFF2 |
| Dimensions | 13.358 in L |
| Drive End Flange Type | Standard |
| Efficiency % | 86.5 % |
| Enclosure | IC411 -TEFC |
| Enclosure, Enclosure Type | Totally Enclosed Fan Cooled |
| Enclosure, Motor Enclosure Design | TEFC |
| Estimated Weight | 54.00 |
| Family Series | WEG Electric Motors |
| FL Amps | 2.02 |
| FL Efficiency | 86.5 |
| Flanges | Without Flanges |
| Footnotes | 2 |
| Frame | 143T, 143/5T |
| Frame Remarks, Mounting Type | Footed |
| Frame, NEMA Frame | 145T |
| Frequency, Frequency Rating | 60 Hz |
| Gross Weight, Net Weight | 60 lbs |
| Hertz, Hz | 60 |
| Horsepower | 1-1/2 hp |
| Horsepower, Output Rating | 1.5 hp |
| HP | 1.5 |
| Insulation Class | Class F |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Item Number, Manufacturer Part Number, MFG Part #:, Part Number | 00158ET3E145T-W22 |
| Length Less Shaft | 11 1/8 in |
| Manufacturer | WEG Electric, WEG |
| Manufacturer, Supplier: | WEG ELECTRIC CORP |
| Manufacturers Warranty Length | 3 yr |
| Model | 11611199 |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | FOOT |
| Motor Service Factor, Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation, Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Mounting | Foot-mounted (F-1) |
| Mounting, Mounting Type | Foot Mount |
| Nameplate RPM, RPM, Speed (RPM) | 1800 |
| Nominal Voltage, Voltage (AC) | 208 VAC |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Overall Length | 13.358 |
| Phase | 3, 3 ph |
| Product Type | General Purpose |
| RPM | 1755, 1,800 RPM |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 7/8 in |
| Shaft Length | 2 1/4 in |
| Shaft Size | 7/8 in Dia x 2-1/4 in L |
| Standard | NEMA MG-1 |
| Standards | CE, CSA, NOM, UL |
| Synchronous Speed | 1800 rpm |
| Terminal Box | Left position |
| UPC: | 7891327536050 |
| Voltage | 230/460//380 V, 230/460V AC, 208-230/460, 208V, 230V, 460V |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
| Volts | 208/230/460 |
| Weight | 53.030000 |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | electricmotorwholesale.com | 00158ET3E145T-W22 | 303.0 | 303.0 | 1 | In Stock | WEG | 51.3 | 303.0 @ Qty: 1+ | |
 | Walker Industrial | 00158ET3E145T-W22 | 413.25 | 413.25 | 1 | In Stock | 17 | WEG | 413.25 @ Qty: 1+ | |
 | motorsandcontrol.com | 00158ET3E145T-W22 | 413.25 | 413.25 | 1 | 1 | WEG Electric | 54.0 | 413.25 @ Qty: 1+ | |
 | Zoro | G0641821 | 413.25 | 413.25 | 1 | 11 | Weg | 50.0 | 413.25 @ Qty: 1+ | |
| kscdirect.com | WEG 00158ET3E145T-W22 | 423.15 | 423.15 | 1 | In Stock | WEG ELECTRIC CORP | 423.15 @ Qty: 1+ | |||
 | MRO Supply | 1312145 | 435.15 | 435.15 | 1 | In Stock | WEG | 435.15 @ Qty: 1+ | ||
 | Galco | 00158ET3E145T-W22-WEG | 452.56 | 452.56 | 1 | In Stock | WEG Electric | 60.0 | 452.56 @ Qty: 1+ | |
 | French Gerleman | WEG00158ET3E145TW22 | 458.9 | 458.9 | 1 | In Stock | WEG | 458.9 @ Qty: 1+ | ||
 | industrialrefrigerationparts.com | 00158ET3E145T-W22 | 482.06 | 482.06 | 1 | In Stock | WEG | 53.03 | 482.06 @ Qty: 1+ | |
 | Dealers Electric | 00158ET3E145T-W22 | 503.1 | 503.1 | 1 | In Stock | Weg | 54.0 | 503.1 @ Qty: 1+ | |
 | Radwell | 00158ET3E145T-W22 | 540.0 | 540.0 | 1 | 1 | WEG | 540.0 @ Qty: 1+ | ||
 | vfds.com | 00158ET3E145T-W22 | 551.0 | 551.0 | 1 | In Stock | WEG | 551.0 @ Qty: 1+ | ||
| AmazonTP | B07DC63WDZ | 551.89 | 551.89 | 1 | In Stock | 5 | Weg Electric Motors | 551.89 @ Qty: 1+ | ||
| AmazonUNK | B07DC63WDZ | 551.89 | 551.89 | 1 | In Stock | Weg Electric Motors | 551.89 @ Qty: 1+ | |||
 | Purvis | 00158ET3E145T-W22 | 559.82 | 559.82 | 1 | In Stock | WEG | 559.82 @ Qty: 1+ | ||
| Airline Hydraulics | WEG 00158ET3E145T-W22 | 568.04 | 568.04 | 1 | In Stock | WEG | 568.04 @ Qty: 1+ | |||
 | National Supply Network | B873180 | 705.99 | 705.99 | 1 | In Stock | Weg Electric Motors | 705.99 @ Qty: 1+ | ||
 | sustainablesupply.com | C1566475 | 726.3 | 726.3 | 1 | In Stock | WEG | 50.0 | 726.3 @ Qty: 1+ | |
 | Raptor Supplies | AE7TUU | 852.9961635 | 852.9961635 | 1 | In Stock | WEG | 852.9961635 @ Qty: 1+ |
