WEG 00218EP3E145HP

B00BC8N9SE

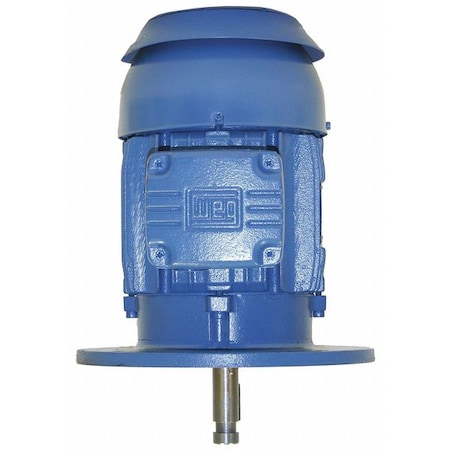

WEG 00218EP3E145HP P-Base High Efficiency Electric Pump Motor, 2 HP, 3-Phase, 1750 RPM, 230/460 V, 50/60 Hz, Frame 145HP

WEG 00218EP3E145HP P-Base High Efficiency Electric Pump Motor, 2 HP, 3-Phase, 1750 RPM, 230/460 V, 50/60 Hz, Frame 145HPzoom

Attributes

Key Value
Ambient Temperature40 Degrees C
BaseP-Base
ClassificationP Base
Country of Origin (subj.Multiple
DutyContinuous
EnclosureTEFC
FinishBlue Enamel
Frame145HP
Frame MaterialCast Iron
Frame RemarksHigh Efficiency, P Base
Full Load Amps6.13-5.54/2.77
HP2
Hz60
Ins. ClassF
ItemVertical Pump Motor
Item ConditionFactory New
Length Less Shaft11-5/8"
ManufacturerWEG
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupEnergy Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionVertical Shaft Down
Motor Mounting TypeFace
Motor Service Factor1.25
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
Nameplate RPM1750
NEMA StandardInverter NEMA MG 1 Part.
Nominal Efficiency84.0
Overall Length15-1/8"
Phase3
RPM1800, 1750
RPM Range1701-1800
Shaft Dia.7/8"
Shaft Length2-3/4"
StandardsUL, CSA, CE
Voltage230/460
Voltage Compatibility460, 230/460, 220-230/4.
Volts208/230/460
Warranty1-1/2 yr.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0405291303.161In Stock20Weg303.16 @ 1
thumbzoomMRO Supply1311727331.121In StockWEG331.12 @ 1
thumbzoomRadwell00218EP3E145HP540.01In StockWEG540.0 @ 1
thumbzoomDealers Electric00218EP3E145HP666.511In StockWeg59.0666.51 @ 1
