Weg Electric 00236AP3EAF143TZ-S

B07BQHFPNB

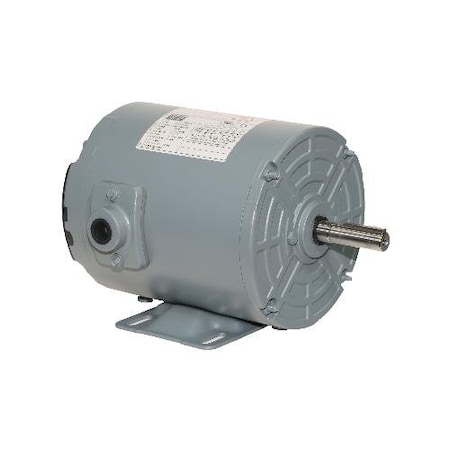

WEG Electric 00236AP3EAF143TZ-S, 2HP, 3600 RPM, 3PH, 230V/460V, 143/5TZ Frame, Standard Flange, Foot Mount, TEAO, Aeration Fan Motor

WEG Electric 00236AP3EAF143TZ-S, 2HP, 3600 RPM, 3PH, 230V/460V, 143/5TZ Frame, Standard Flange, Foot Mount, TEAO, Aeration Fan Motorzoom

Attributes

Key Value
Amperage Rating5.64 to 5.10/2.55 A
Application TypeAeration Fan Motors, Fa.
Bearing TypeBall
ClassificationFarm Duty
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Country of Origin (subj.Brazil
Degree of ProtectionIP55
Description:MOTOR 2HP 2P 143/5TZ WC.
Dimensions12.018 in L
Drive End Flange TypeStandard
EnclosureIC410-TEAO, TEAO, Total.
Enclosure TypeTotally Enclosed Air Ov.
Estimated Weight38.00
Family SeriesWEG Electric Motors
FL Amps2.55
FL Efficiency82.5
FlangesWithout Flange
FRAME143/5TZ
Frame143/5TZ, 143TZ
Frame MaterialRolled Steel
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps2.55
Gross Weight0 lbs
Hertz60
Horsepower2 hp
HP2
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number00236AP3EAF143TZ-S
Kw1.5
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00236AP3EAF143TZ-S
MaterialRolled Steel
MFG Part #:00236AP3EAF143TZ-S
Model13248528
Motor Enclosure DesignTEAO
Motor Mounting TypeFOOT
Motor Service Factor1.15
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
Nameplate RPM3600
NEMA Frame143/5TZ
Net Weight0 lbs
Nominal Efficiency82.5
Nominal Voltage208 VAC, 240 VAC
Number of Poles2
Number of Speeds1
Output Rating2 hp
Overall Length12.018
Part Number00236AP3EAF143TZ-S
Phase3, 3 ph
Product TypeAeration Fan
RotationCW/CCW
RPM3600, 3400 - 3600, 3,60.
Service Factor1.15
Speed3500 rpm
Speed (RPM)3600
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
Torque Rating2.96 ft-lb
UPC:7909265723439
VOLTAGE230/460
Voltage230V, 460V, 208-230/460.
Voltage (AC)230 VAC
Volts208-230/460*
WEIGHT38
Weight37.480000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial00236AP3EAF143TZ-S433.51In Stock17WEG433.5 @ 1
thumbzoomMRO Supply2853347456.471In StockWEG456.47 @ 1
thumbzoommotorsandcontrol.com00236AP3EAF143TZ-S457.961In StockWEG Electric38.0457.96 @ 1
thumbzoomGalco00236AP3EAF143TZ-S-WEG474.731In StockWEG Electric474.73 @ 1
kscdirect.comWEG 00236AP3EAF143TZ-S491.991In StockWEG ELECTRIC CORP491.99 @ 1
thumbzoomindustrialrefrigerationparts.com00236AP3EAF143TZ-S505.691In StockWEG37.48505.69 @ 1
thumbzoomDealers Electric00236AP3EAF143TZ-S527.731In StockWeg36.0527.73 @ 1
thumbzoomZoroG503435474534.921In StockWeg38.0534.92 @ 1
