WEG Electric Motor 00336ET3ESS182TC

B00BC99ITM

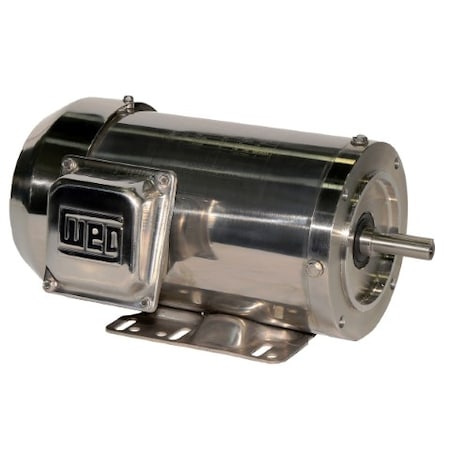

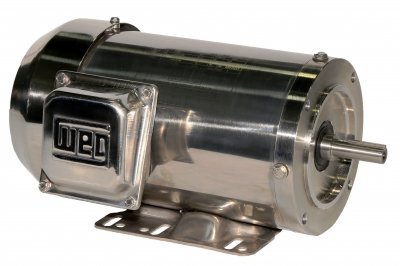

WEG Electric, 00336ET3ESS182TC, 3HP, 3600RPM, 3PH, 208V;230V;460V, 182TC Frame, C-Face Flange, Foot Mount, TEFC, Stainless Steel Motor.

WEG Electric, 00336ET3ESS182TC, 3HP, 3600RPM, 3PH, 208V;230V;460V, 182TC Frame, C-Face Flange, Foot Mount, TEFC, Stainless Steel Motor.zoom

Attributes

Key Value
Amperage Rating3.73 A
Application TypeGeneral Purpose AC Moto.
ClassificationWash Down & Stainless S.
CompositionStainless Steel
ConditionNew
ConstructionStainless Steel
Country of Origin (subj.Brazil
Degree of ProtectionIP56
Description:MOTOR 3HP 2P 182TC WCF2
Dimensions17.3 in L
Drive End Flange TypeC-Face
EfficiencyNEMA Premium Efficiency
Efficiency %86.5 %
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight95.00
Family SeriesWEG Electric Motors
FL Amps3.71
FL Efficiency86.5
FlangesC-Face Flange
FRAME182TC
Frame182TC
Frame MaterialStainless Steel
Frame RemarksFooted, Premium, Washdo.
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps3.73
Gross Weight0 lbs
Hertz60
Horsepower3 hp
HP3
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number00336ET3ESS182TC
Kw2.2
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00336ET3ESS182TC
MaterialStainless Steel
MFG Part #:00336ET3ESS182TC
Model14418881
Motor Enclosure DesignTEFC
Motor Mounting TypeFOOT
Motor Service Factor1.15
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
Nameplate RPM3600
NEMA Frame182TC
Net Weight0 lbs
Nominal Efficiency86.5
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating3 hp
Overall Length17.3
Part Number00336ET3ESS182TC
Phase3, 3 ph
Product TypeWashdown Duty
RPM3600, 3,600 RPM
Service Factor1.15
Special FeaturesWashdown Duty Motors
Speed3600 rpm
Speed (RPM)3600
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600rpm
Terminal BoxLeft position
UPC:7909492474494
VOLTAGE230/460
Voltage208V, 230V, 460V, 208-2.
Voltage (AC)208 VAC
Voltage Rating230/460 VAC
Volts208/230/460
WEIGHT100
Weight100.000000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00336ET3ESS182TC928.01In StockWEG928.0 @ 1
thumbzoomPurvis00336ET3ESS182TC1438.881In StockWEG1438.88 @ 1
thumbzoomRadwell00336ET3ESS182TC1450.01In StockWEG1450.0 @ 1
thumbzoomWalker Industrial00336ET3ESS182TC1491.751In Stock17WEG1491.75 @ 1
thumbzoomMRO Supply13119441548.941In StockWEG1548.94 @ 1
thumbzoomDealers Electric00336ET3ESS182TC1594.191In StockWeg95.01594.19 @ 1
thumbzoomGalco00336ET3ESS182TC-WEG1652.21In StockWEG Electric1652.2 @ 1
thumbzoomZoroG8025780631703.631In Stock11Weg100.01703.63 @ 1
thumbzoomindustrialrefrigerationparts.com00336ET3ESS182TC1704.921In StockWEG100.01704.92 @ 1
kscdirect.comWEG 00336ET3ESS182TC1733.681In StockWEG ELECTRIC CORP1733.68 @ 1
thumbzoommotorsandcontrol.com00336ET3ESS182TC1744.241In StockWEG Electric95.01744.24 @ 1
cbtcompany.com00336ET3ESS182TC1775.651In StockWEG1775.65 @ 1
Airline HydraulicsWEG 00336ET3ESS182TC2050.521In StockWEG2050.52 @ 1
thumbzoomNational Supply NetworkB8807122598.391In StockWeg Electric Motors2598.39 @ 1
