mpn:
brand:
manufacturer:
MPN:
Description:

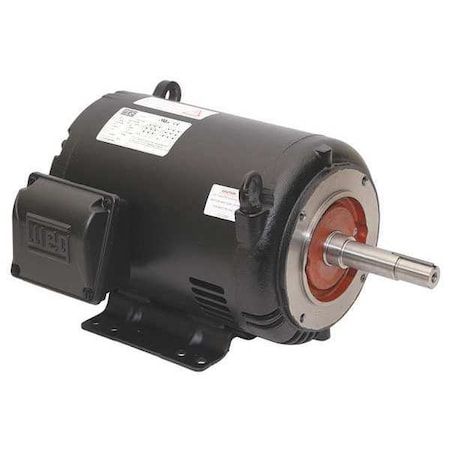

The 00518OP3E184JM-S is produced by WEG and is described as a WEG 00518OP3E184JM-S 5HP 1800 3 60 208-230/460 Close C.-ODP
Weight:
66.0
Weight:
66.0 LB
Preferred Price:
743.89
Price:
743.89
Min Simple Price:
420.28
Absolute Min Price:
596.79
Min Price:
596.79
Dimensions:
[17.0, 1.0, 1.0]
qty:
21
simpleSku:
jI0Mjg:::00518OP3E184JM-S
sku:
jI0Mjg::3K:00518OP3E184JM-S@y0
condition:
11
seller:
MRO Supply
amzMan:
weg
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Classification | JM-JP & Jet Pump |
| Country of Origin (subject to change) | Multiple |
| Duty | Continuous |
| Enclosure | ODP |
| Frame | 182JM, 182/4JM, 184JM |
| Frame Material | Rolled steel |
| Frame Remarks | Close Coupled Pump, Footed |
| Full Load Amps | 14.3-12.9/6.4 |
| Green Environmental Attribute | Does not Contain Phthalates, Formaldehyde, Toxic Metals, Aromatic and Halogenated Compounds, Butoxyethanol, 2-Methoxyethanl, Isophorone, Methyl Ethyl Ketone, Methyl Isobutyl Ketone, Acrolein, Acrylonitrile |
| HP | 5 |
| Hz | 60 |
| Ins. Class | F |
| Inverter Rated | Yes |
| Item | Close-Coupled Pump Motor |
| Item Condition | Factory New |
| Length Less Shaft | 12-17/32" |
| Manufacturer | WEG |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Close-Coupled Pump |
| Motor Thermal Protection | None |
| Nameplate RPM | 1750 |
| Nominal Efficiency | 87.5 |
| Overall Length | 16-5/8" |
| Phase | 3 |
| Replaces | 00518OP3E184JM |
| RPM | 1800 |
| RPM Range | 1701-1800 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4-7/64" |
| Voltage | 208-230/460 |
| Voltage Compatibility | 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460 |
| Volts | 208/230/460 |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | MRO Supply | 2519923 | 420.28 | 420.28 | 1 | In Stock | WEG | 420.28 @ Qty: 1+ | ||
 | Zoro | G8515202 | 605.87 | 605.87 | 1 | In Stock | 26 | Weg | 605.87 @ Qty: 1+ | |
 | Radwell | 00518OP3E184JM-S | 680.0 | 680.0 | 1 | In Stock | WEG | 680.0 @ Qty: 1+ | ||
 | Dealers Electric | 00518OP3E184JM-S | 775.15 | 775.15 | 1 | In Stock | Weg | 73.0 | 775.15 @ Qty: 1+ |
