WEG 00718OT3E213JP-S

B019TUXU7G

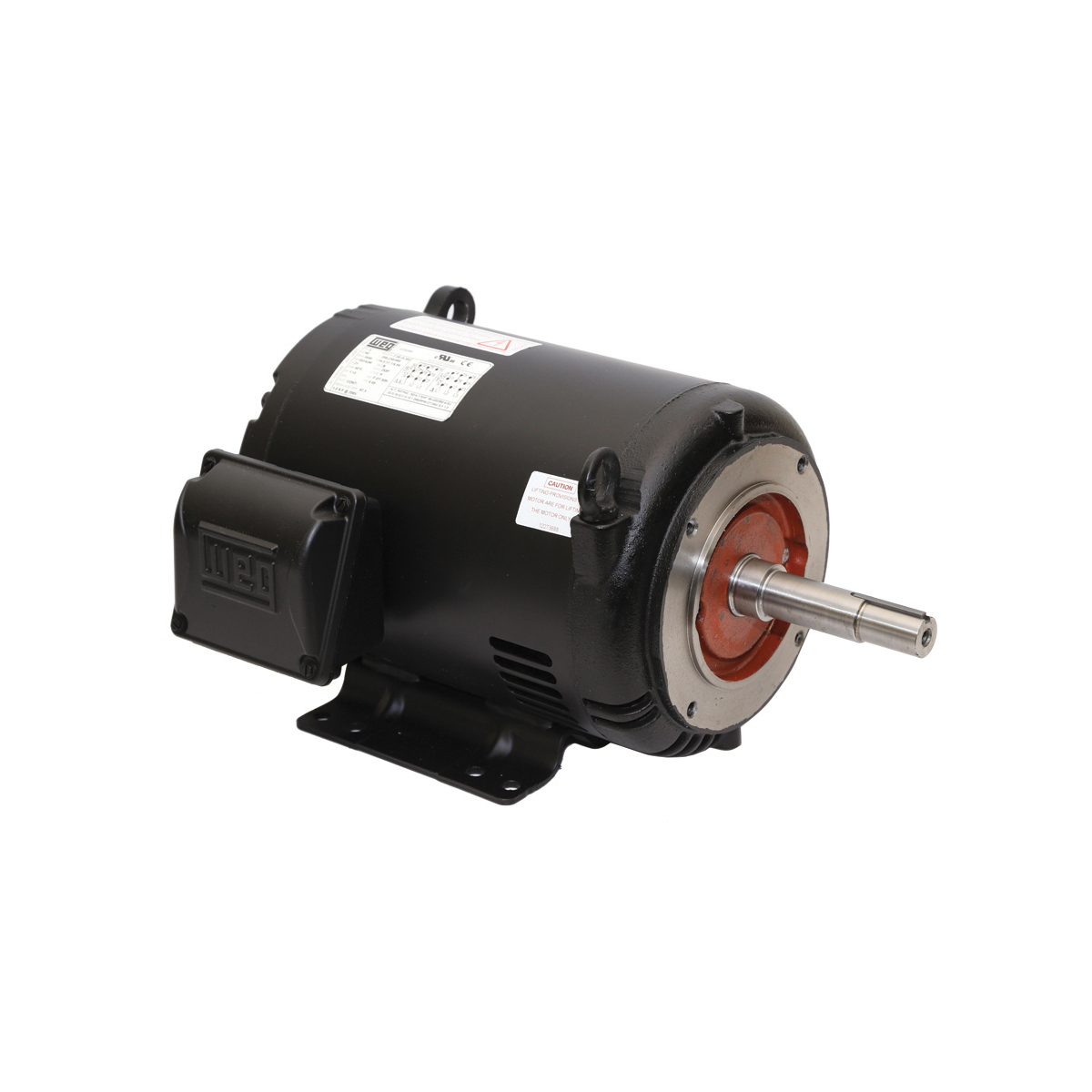

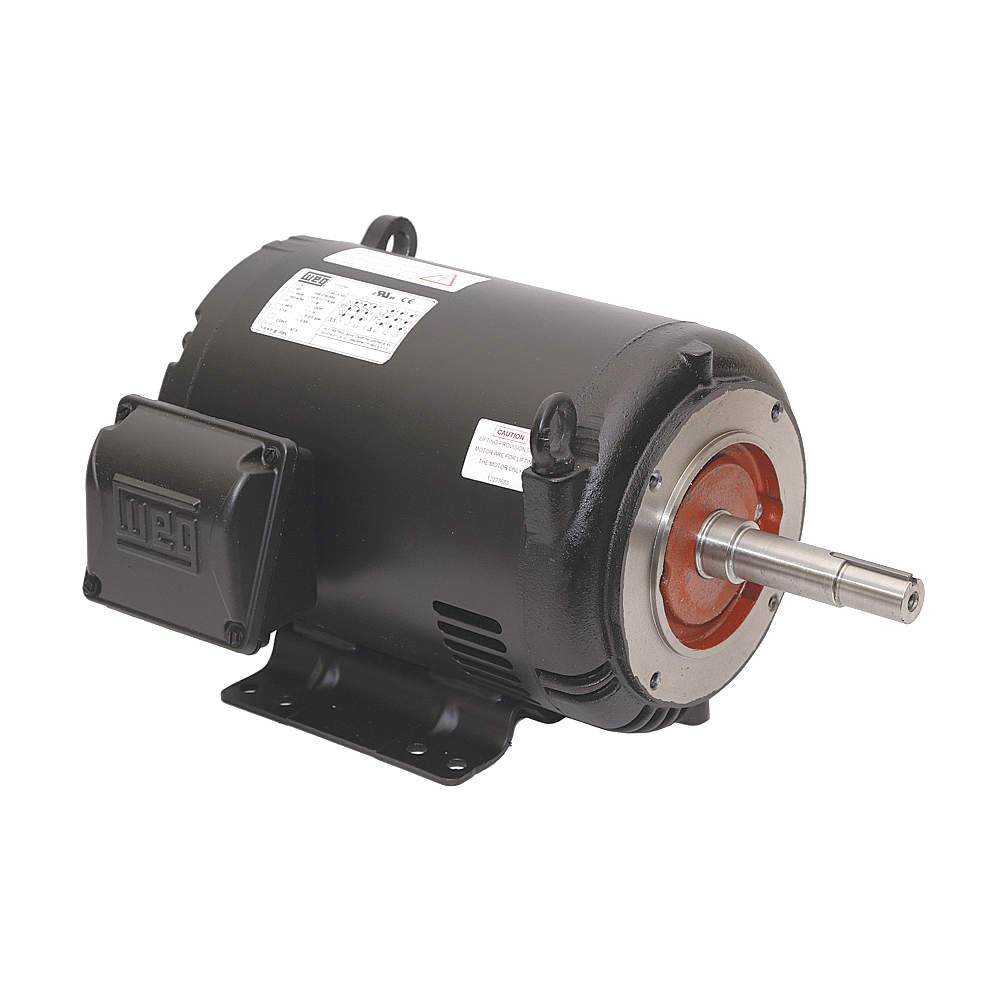

WEG 00718OT3E213JP-S ODP NEMA Premium Efficiency Close Coupled Pump Motor, 7.5 HP, 3-Phase, 1760 rpm, 208-230/460 V, 60 Hz, 213/5JP Frame

WEG 00718OT3E213JP-S ODP NEMA Premium Efficiency Close Coupled Pump Motor, 7.5 HP, 3-Phase, 1760 rpm, 208-230/460 V, 60 Hz, 213/5JP Framezoom

Attributes

Key Value
Amperage Rating20.5 to 18.5/9.25 A
Application TypeJet Pump (JM/JP) Motors
Bearing TypeBall
Body Dia.10.1 in
Bolt Circle Dia.7 1/4 in
CC NumberCC029A
ClassificationJM-JP & Jet Pump
Comments60 Hz
CompositionSteel
ConditionNew
Conduit Box LocationExterior
Conduit Box PositionF1
ConstructionRolled Steel
Country of Origin (subj.Multiple
Description:MOTOR 7.5HP 4P 213/5JP .
Dimensions21.575 in L
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
EfficiencyLeft position
EnclosureODP, Open, F-1
Enclosure TypeOpen Drip-Proof
Estimated Weight128.00
Family SeriesWEG Electric Motors
FL Amps9.14
FL Efficiency91.0
Frame213/5JP, 213JP, 215JP
Frame MaterialRolled Steel
Frame RemarksClose Coupled Pump, Foo.
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps20.5-18.5/9.2
Green Environmental Att.Does not Contain Phthal.
Gross Weight0 lbs
Height10 3/16 in
Hertz60
Horsepower7.5 hp, 7-1/2 hp
HP7 1/2, 7.5
HP @ 50Hz7 1/2
Hz60
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
Inverter Rating1000:1
ItemClose-Coupled Pump Motor
Item ConditionFactory New
Item Number00718OT3E213JP-S
Length Less Shaft13 7/16 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00718OT3E213JP-S
Manufacturers Warranty .3 yr
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
MFG Part #:00718OT3E213JP-S
Model12682725
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.15
Motor Shaft DesignJP Threaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
MountingFoot Mount
Mounting TypeFooted, Foot Mount
Nameplate RPM1,770
NEMA DesignB
NEMA Frame213/5JP
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency91 %
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating7.5 hp
Overall Length21 9/16 in
Part Number00718OT3E213JP-S
Phase3, 3 ph, Three
Product TypePump
Regreasable BearingsRegreasable Bearings
Replaces00718OP3E213JP, 00718OP.
RotationCW/CCW
RPM1,800 RPM, 1700 - 1800,.
RPM @ 50Hz1,445
RPM Range1,701-1,800
Service Factor1.15
Service Factor @ 50Hz1.15
Shaft Dia.1 1/4 in
Shaft Length8 1/8 in
Shaft MaterialCarbon Steel
Shaft Size1-1/4 in Dia x 7-29/32 .
Speed1770 rpm
Speed (RPM)1800
StandardNEMA MG-1
StandardsCSA (LR38324), CSA (LR5.
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxC
UPC:7909158551446
Usable @ 200VYes
Usable @ 208VYes
Voltage230/460//190-220/380-41.
Voltage (AC)208 VAC
Voltage @ 50Hz190/380, 220/415
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight129 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00718OT3E213JP-S632.01In StockWEG129.0632.0 @ 1
thumbzoomWalker Industrial00718OT3E213JP-S840.01In Stock17WEG840.0 @ 1
thumbzoommotorsandcontrol.com00718OT3E213JP-S840.01In StockWEG Electric128.0840.0 @ 1
kscdirect.comWEG 00718OT3E213JP-S846.811In StockWEG ELECTRIC CORP846.81 @ 1
thumbzoomMRO Supply2520071884.511In StockWEG884.51 @ 1
thumbzoomGalco00718OT3E213JP-S-WEG919.891In StockWEG Electric919.89 @ 1
thumbzoomDealers Electric00718OT3E213JP-S920.311In StockWeg128.0920.31 @ 1
thumbzoomindustrialrefrigerationparts.com00718OT3E213JP-S966.081In StockWEG966.08 @ 1
thumbzoomRadwell00718OT3E213JP-S1050.01In StockWEG1050.0 @ 1
AmazonTPB019TUXU7G1087.791In Stock2WEG1087.79 @ 1
AmazonUNKB019TUXU7G1087.791In StockWEG1087.79 @ 1
thumbzoomPurvis00718OT3E213JP-S1243.21In StockWEG1243.2 @ 1
thumbzoomZoroG85153061265.671In Stock26Weg137.01265.67 @ 1
motionindustries.com061433421569.541In StockWEG Electric Corporation1569.54 @ 1
thumbzoomRaptor SuppliesAG3FBR2117.92575151In StockWEG2117.9257515 @ 1
