WEG 00718OT3E213TC-S

B07C987XGC

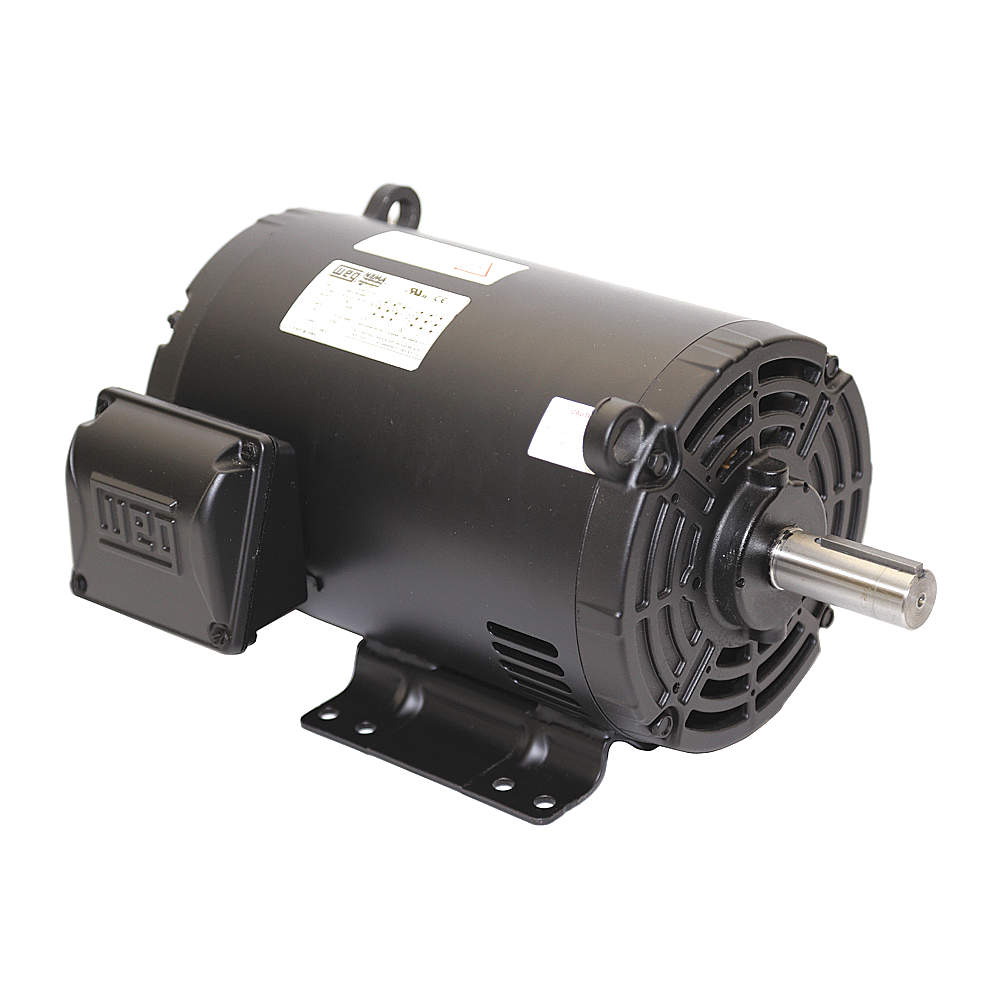

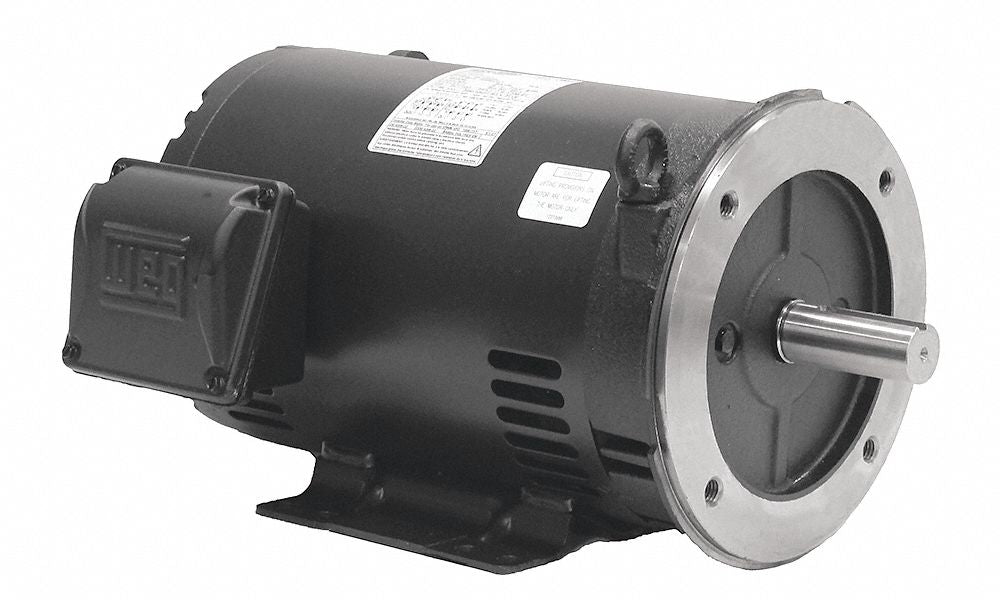

WEG Motor,3-Ph,7-1/2 HP,213/5TC,230/460V (00718OT3E213TC-S)

WEG Motor,3-Ph,7-1/2 HP,213/5TC,230/460V (00718OT3E213TC-S)zoom

Attributes

Key Value
Amperage Rating20.5 to 18.5/9.25 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
Capacitor RequiredNo
CC NumberCC029A
ClassificationThree Phase
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Country of Origin (subj.Multiple
Description:MOTOR 7.5HP 4P 213/5TC .
Dimensions16.575 in L
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
EfficiencyLeft position
EnclosureODP, Open, F-1
Enclosure TypeOpen Drip-Proof
Estimated Weight128.00
Family SeriesWEG Electric Motors
FL Amps9.14
FL Efficiency91.0
Frame213-5TC, 213/5TC, 213TC.
Frame MaterialRolled Steel
Frame RemarksFooted
Frequency60 Hz, 60//50 Hz
Frequency Rating60 Hz
Full Load Amps18.5/9.25
Full Load Amps @ 50Hz20.0/10.6, 22.2/11.1
Green Certification or .NEMA Premium Rated, NEM.
Green Environmental Att.Does not Contain Formal.
Gross Weight0 lbs
Hertz60
Horsepower7.5 hp, 7-1/2 hp
HP7 1/2, 7.5
HP @ 50Hz7 1/2
Hz60
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number00718OT3E213TC-S
Length Less Shaft13 3/16 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00718OT3E213TC-S
Manufacturers Warranty .3 yr
MaterialRolled Steel
Max. Ambient Temp.40 Degrees C, 40 Degre.
MFG Part #:00718OT3E213TC-S
Model12651240
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignOpen Dripproof
Motor Frame MaterialSteel
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount
Mounting TypeFoot Mount, C-Face Foot.
Nameplate RPM1,770
NEMA DesignNone
NEMA Frame213/5TC
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency91 %
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating7.5 hp
Overall Length16 9/16 in
Part Number00718OT3E213TC-S
Phase3, 3 ph, Three
Product TypeGeneral Purpose
Replaces00718OT3E213TC
RotationCW/CCW
RPM1,800 RPM, 1700 - 1800,.
RPM @ 50Hz1,460
RPM Group1701-1800
RPM Range1,701-1,800
Service Factor1.15
Service Factor @ 50Hz1.15
Shaft Dia.1 3/8 in
Shaft Length3 3/8 in
Shaft Size1-3/8 in Dia x 3-3/8 in.
Speed1770 rpm
Speed (RPM)1800
StandardNEMA MG-1
StandardsUL (E104590, CSA (70014.
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxC
UPC:7909158479405
Usable @ 200VNo
Usable @ 208VYes
Voltage230/460//190-220/380-41.
Voltage (AC)208 VAC
Voltage @ 50Hz220/380V AC, 240/415, 4.
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight125 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00718OT3E213TC-S559.01In StockWEG126.0559.0 @ 1
thumbzoomWalker Industrial00718OT3E213TC-S720.751In Stock17WEG720.75 @ 1
kscdirect.comWEG 00718OT3E213TC-S720.751In StockWEG ELECTRIC CORP720.75 @ 1
thumbzoommotorsandcontrol.com00718OT3E213TC-S720.751In StockWEG Electric128.0720.75 @ 1
thumbzoomMRO Supply2520073758.951In StockWEG758.95 @ 1
thumbzoomGalco00718OT3E213TC-S-WEG789.311In StockWEG Electric789.31 @ 1
thumbzoomDealers Electric00718OT3E213TC-S789.691In StockWeg128.0789.69 @ 1
thumbzoomZoroG8515683816.71111Weg129.0816.71 @ 1
thumbzoomindustrialrefrigerationparts.com00718OT3E213TC-S828.931In StockWEG828.93 @ 1
thumbzoomRadwell00718OT3E213TC-S880.01In StockWEG880.0 @ 1
thumbzoomvfds.com00718OT3E213TC-S961.01In StockWEG961.0 @ 1
thumbzoomPurvis00718OT3E213TC-S976.381In StockWEG976.38 @ 1
Airline HydraulicsWEG 00718OT3E213TC-S990.721In StockWEG990.72 @ 1
grainger.caWWG33HP151139.217839541In StockWEG129.01139.21783954 @ 1
thumbzoomsustainablesupply.comC15551791169.91In StockWEG129.01169.9 @ 1
thumbzoomNational Supply NetworkB8736151220.791In StockWeg Electric Motors1220.79 @ 1
thumbzoomRaptor SuppliesAG3FCY1338.26126851In StockWEG1338.2612685 @ 1
