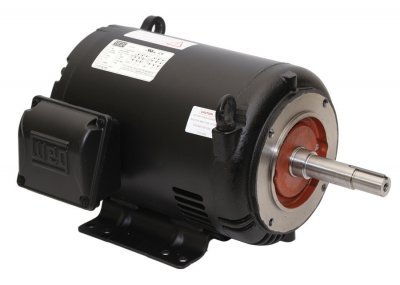

WEG Electric 00736OT3H184JP-S, 7.5HP, 3600 RPM, 3PH, 575V, 182/4JP Frame, C-Face Flange, Foot Mount, Open, Close Coupled Pump Motor

WEG Electric 00736OT3H184JP-S, 7.5HP, 3600 RPM, 3PH, 575V, 182/4JP Frame, C-Face Flange, Foot Mount, Open, Close Coupled Pump Motorzoom

Attributes

Key Value
Amperage Rating6.9 A
Application TypeJet Pump (JM/JP) Motors
ClassificationJM-JP & Jet Pump
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Description:MOTOR 7.5HP 2P 182/4JP .
Dimensions19.724 in L
Drive End Flange TypeC-Face
EnclosureODP, Open
Enclosure TypeOpen Drip-Proof
Estimated Weight89.00
Family SeriesWEG Electric Motors
FL Amps6.90
FL Efficiency88.5
Frame184JP, 182/4JP
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower7.5 hp, 7-1/2 hp
HP7.5
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number00736OT3H184JP-S
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00736OT3H184JP-S
MaterialRolled Steel
MFG Part #:00736OT3H184JP-S
MountingFoot Mount
Mounting TypeFooted, Foot Mount
NEMA Frame182/4JP
Net Weight0 lbs
Nominal Voltage575 VAC, 600 VAC
Number of Speeds1
Part Number00736OT3H184JP-S
Phase3, 3 ph
Product TypePump
RPM3600, 3400 - 3600, 3,60.
Service Factor1.15
Speed3600 rpm
Speed (RPM)3600
Supplier:WEG ELECTRIC CORP
Temperature Rating-20 to 40 deg C
Torque Rating11.1 ft-lb
TypeClosed Couple Pump Cont.
UPC:7899058013727
Variable Torque Speed R.1000:1
Voltage575V, 575
Voltage (AC)575 VAC
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial00736OT3H184JP-S814.51In Stock17WEG814.5 @ 1
thumbzoommotorsandcontrol.com00736OT3H184JP-S814.51In StockWEG Electric89.0814.5 @ 1
kscdirect.comWEG 00736OT3H184JP-S821.111In StockWEG ELECTRIC CORP821.11 @ 1
thumbzoomMRO Supply2520146857.671In StockWEG857.67 @ 1
thumbzoomGalco00736OT3H184JP-S-WEG891.971In StockWEG Electric891.97 @ 1
thumbzoomindustrialrefrigerationparts.com00736OT3H184JP-S936.771In StockWEG936.77 @ 1
thumbzoomDealers Electric00736OT3H184JP-S991.561In StockWeg77.0991.56 @ 1
thumbzoomPurvis00736OT3H184JP-S992.61In StockWEG992.6 @ 1
motionindustries.com061433811393.021In StockWEG Electric Corporation1393.02 @ 1
