WEG 01012ET3E256JM-W22

B073W295CW

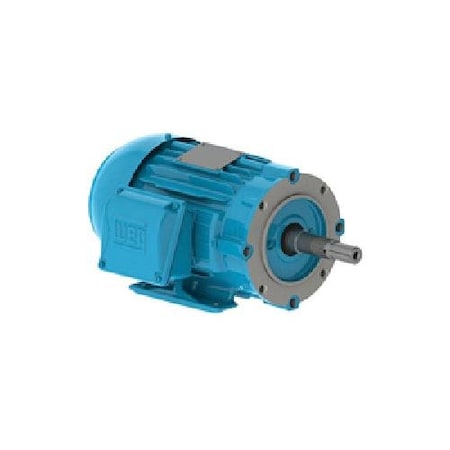

WEG 3PH 10 HP Electric Motor

WEG 3PH 10 HP Electric Motorzoom

Attributes

Key Value
Amperage Rating28.5 to 26.6/13.3 A
Application TypeJet Pump (JM/JP) Motors
Bearing TypeBall
CategoryElectric Motor
CompositionCast Iron
ConditionNew
ConstructionCast Iron
Country of Origin (subj.Brazil
Degree of ProtectionIP55
Description:MOTOR 10HP 6P 254/6JM W.
Dimensions26.226 in L
Drive End Flange TypeC-Face
Efficiency %91 %
EnclosureTEFC, IC411 -TEFC, Tota.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight309.00
Family SeriesWEG Electric Motors
FL Amps12.9
FL Efficiency91.0
FlangesFlange C
FRAME254/6JM
Frame254/6JM, 256JM
Frame MaterialCast Iron
Frame Number256
Frame RemarksFOOTED
Frame SuffixJM
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps12.9
Gross Weight0 lbs
Hertz60
Horsepower10 hp
HP10
Hz60
Insulation ClassClass F
Item ConditionNew Surplus
Item Number01012ET3E256JM-W22
Kw7.5
ManufacturerWEG Electric, Weg, WEG .
Manufacturer Part Number01012ET3E256JM-W22
MaterialCast Iron
MFG Part #:01012ET3E256JM-W22
Motor Enclosure DesignTEFC
Motor Mounting TypeFOOT
Motor Service Factor1.25
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, FOOTED
Nameplate RPM1200
NEMA Frame256JM
Net Weight0 lbs
Nominal Efficiency91
Nominal Voltage208 VAC
Number of Poles6
Number of Speeds1
Output Rating10 hp
Overall Length26.226
Part Number01012ET3E256JM-W22
Phase3, 3 ph
Product TypePump
RotationCW/CCW
RPM1,200 RPM, 1175, 1200
Service Factor1.25
Speed1175 rpm
Speed (RPM)1200
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1200 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
Torque Rating44.1 ft-lb
UPC:7894171422319
VOLTAGE230/460
Voltage230/460//380 V, 208-230.
Voltage (AC)208 VAC
Volts208/230/460
WEIGHT327
Weight313.030000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
motionindustries.com04701864255.471In StockWEG Electric Corporation255.47 @ 1
thumbzoomDealers Electric01012ET3E256JM-W221250.01In StockWeg300.01250.0 @ 1
thumbzoomelectricmotorwholesale.com01012ET3E256JM-W221673.01In StockWEG291.01673.0 @ 1
thumbzoomWalker Industrial01012ET3E256JM-W222234.251In Stock17WEG2234.25 @ 1
thumbzoommotorsandcontrol.com01012ET3E256JM-W222234.251In StockWEG Electric309.02234.25 @ 1
thumbzoomMRO Supply13136942279.581In StockWEG2279.58 @ 1
thumbzoomGalco01012ET3E256JM-W22-WEG2446.751In StockWEG Electric2446.75 @ 1
thumbzoomZoroG8034353032493.561In Stock11Weg327.02493.56 @ 1
AmazonTPB073W295CW2512.351In Stock2Weg2512.35 @ 1
thumbzoomindustrialrefrigerationparts.com01012ET3E256JM-W222523.741In StockWEG313.032523.74 @ 1
kscdirect.comWEG 01012ET3E256JM-W222535.711In StockWEG ELECTRIC CORP2535.71 @ 1
thumbzoomRadwell01012ET3E256JM-W222700.01In StockWEG2700.0 @ 1
thumbzoomPurvis01012ET3E256JM-W223306.71In StockWEG3306.7 @ 1
thumbzoomNational Supply NetworkB8813013751.591In StockWeg Electric Motors3751.59 @ 1
