Weg Electric 01018EP3EHP215TYZ7F3

mpn01018EP3EHP215TYZ7F3
brandname: WEG
manufacturername: WEG

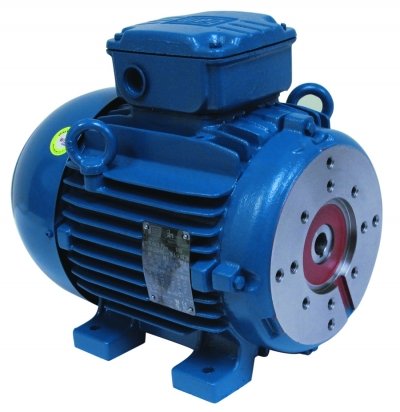

WEG Electric, 01018EP3EHP215TYZ7F3, 10HP, 1800RPM, 3PH, 208V;230V;460V, 215TYZ Frame, Standard Flange, Foot Mount, TEFC, Hydraulic Pump Motor.

WEG Electric, 01018EP3EHP215TYZ7F3, 10HP, 1800RPM, 3PH, 208V;230V;460V, 215TYZ Frame, Standard Flange, Foot Mount, TEFC, Hydraulic Pump Motor.

zoom

Brand: Weg Electric
PartNumber: 01018EP3EHP215TYZ7F3
Manufacturer: Weg Electric
Label: Weg Electric

Attributes

Key	Value
Amperage Rating	15.7 to 31.4/15.7 A
Application Type	General Purpose AC Moto.
Bearing Type	Ball
Classification	Hydraulic Pump
Composition	Cast Iron
Condition	New
Construction	Cast Iron
Degree of Protection	IP55
Description:	MOTOR 10HP 4P 215TYZ WF.
Dimensions	16.312 in L
Drive End Flange Type	Standard
Efficiency %	89.5 %
Enclosure	TEFC, IC411 - TEFC, Tot.
Enclosure Type	Totally Enclosed Fan Co.
Estimated Weight	189.00
Family Series	WEG Electric Motors
FL Amps	15.0
FL Efficiency	89.5
Flanges	Special
Frame	215TYZ
Frame Remarks	High Efficiency, Footed.
Frequency	60 Hz
Frequency Rating	60 Hz
Gross Weight	0 lbs
Hertz	60
Horsepower	10 hp
HP	10
Hz	60
Insulation Class	Class F
Item Condition	Factory New
Item Number	01018EP3EHP215TYZ7F3
Manufacturer	WEG Electric, WEG, WEG .
Manufacturer Part Number	01018EP3EHP215TYZ7F3
Material	Cast Iron
MFG Part #:	01018EP3EHP215TYZ7F3
Model	13565753
Mounting	Foot Mount, Foot-mounte.
Mounting Type	Foot Mount, Footed
NEMA Frame	215TYZ
Net Weight	0 lbs
Nominal Voltage	208 VAC
Number of Poles	4
Number of Speeds	1
Output Rating	10 hp
Part Number	01018EP3EHP215TYZ7F3
Phase	3, 3 ph
Product Type	General Purpose
Rotation	CW/CCW
RPM	1,800 RPM, 1800
Service Factor	1.15
Speed	1775 rpm
Speed (RPM)	1800
Standard	NEMA MG-1
Supplier:	WEG ELECTRIC CORP
Synchronous Speed	1800 rpm
Temperature Rating	-20 to 40 deg C
Terminal Box	Top
Torque Rating	29.2 ft-lb
UPC:	7909322436265
Voltage	208V, 230V, 460V, 208-2.
Voltage (AC)	208 VAC
Volts	208/230/460
Weight	185.720000

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Walker Industrial	01018EP3EHP215TYZ7F3	933.0	1	In Stock	17	WEG		933.0 @ 1
	motorsandcontrol.com	01018EP3EHP215TYZ7F3	985.66	1	In Stock		WEG Electric	189.0	985.66 @ 1
	MRO Supply	1311988	995.19	1	In Stock		WEG		995.19 @ 1
	Galco	01018EP3EHP215TYZ7F3-WEG	1021.73	1	In Stock		WEG Electric		1021.73 @ 1
	kscdirect.com	WEG 01018EP3EHP215TYZ7F3	1058.89	1	In Stock		WEG ELECTRIC CORP		1058.89 @ 1
	industrialrefrigerationparts.com	01018EP3EHP215TYZ7F3	1073.04	1	In Stock		WEG	185.72	1073.04 @ 1
	Dealers Electric	01018EP3EHP215TYZ7F3	1135.77	1	In Stock		Weg	189.0	1135.77 @ 1
	Purvis	01018EP3EHP215TYZ7F3	1137.02	1	In Stock		WEG		1137.02 @ 1
	Radwell	01018EP3EHP215TYZ7F3	1150.0	1	In Stock		WEG		1150.0 @ 1
