mpn:
brand:
manufacturer:
MPN:
Description:

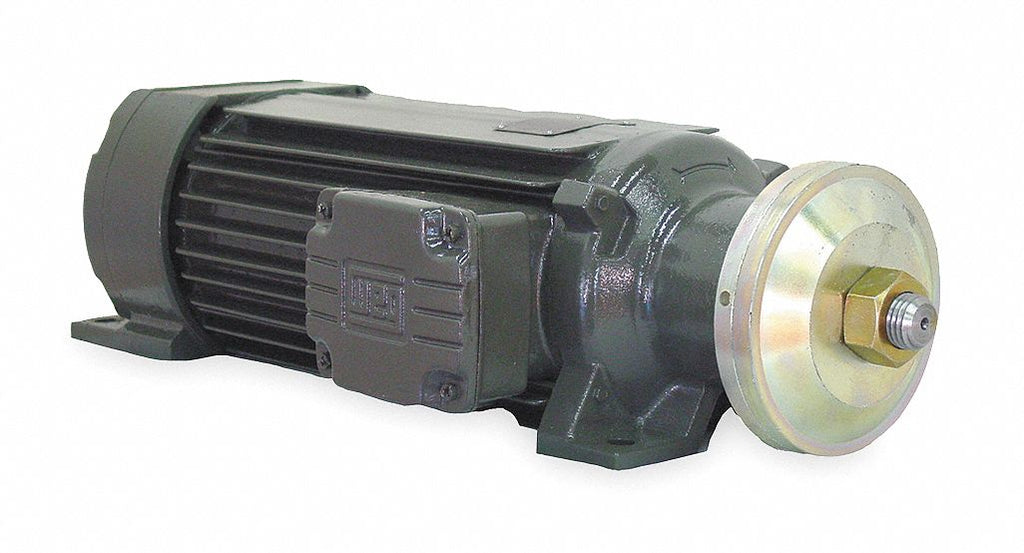

01036ES3HSA90LL 10HP 3600 3 60 575V Saw Arbor
Weight:
11.2525
Weight:
166.0 LB
Preferred Price:
1237.23
Price:
1237.23
Min Simple Price:
699.0
Absolute Min Price:
992.58
Min Price:
992.58
Dimensions:
[30.0, 14.0, 12.0]
qty:
21
simpleSku:
jI0Mjg:::01036ES3HSA90LL
sku:
jI0Mjg::V0:01036ES3HSA90LL@y0
condition:
11
seller:
Global Industrial
amzMan:
weg
HazMat:
False
DropShip:
True
Attributes
| Key | Value |
|---|---|
| Ambient Temperature | 40 Degrees C |
| Amperage Rating | 9.84 A |
| Application Type | General Purpose AC Motors |
| Bearing Type | Ball |
| Classification | Saw Arbor |
| Composition | Cast Iron |
| Condition | New |
| Construction | Cast Iron |
| Country of Origin (subject to change) | Multiple |
| Description: | MOTOR 10HP 2P 90L/MS WFS1 |
| Dimensions | 26.476 in L |
| Drive End Flange Type | Standard |
| Efficiency % | 85 % |
| Enclosure | TEFC, Totally Enclosed Fan Cooled |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Estimated Weight | 170.00 |
| Family Series | WEG Electric Motors |
| FL Amps | 9.83 |
| FL Efficiency | 85.0 |
| Frame | 90L |
| Frame Remarks | Footed, Left Hand Thread |
| Frequency | 60 Hz |
| Frequency Rating | 60 Hz |
| Full Load Amps | 9.8 |
| Gross Weight | 170 lbs |
| Hertz | 60 |
| Horsepower | 10 hp |
| HP | 10 |
| Hz | 60 |
| Includes | PG Threaded Terminal Box |
| Ins. Class | F |
| Insulation Class | Class F |
| Item | Saw Arbor Motor |
| Item Condition | Factory New |
| Item Number | 01036ES3HSA90LL |
| Length Less Shaft | 24 1/4 in |
| Manufacturer | WEG Electric, WEG, WEG ELECTRIC CORP |
| Manufacturer Part Number | 01036ES3HSA90LL |
| Manufacturers Warranty Length | 1.5 yr |
| Material | Cast Iron |
| Max. Ambient Temp. | 40 Degrees C |
| MFG Part #: | 01036ES3HSA90LL |
| Motor Application | Power Tool |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air-Over |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | CWSE |
| Motor Thermal Protection | None |
| Mounting | Foot Mount |
| Mounting Type | Foot Mount, Footed |
| Nameplate RPM | 3,600 |
| NEMA Frame | 90L |
| Net Weight | 170 lbs |
| No. of Speeds | 1 |
| Nominal Efficiency | 85 % |
| Nominal Voltage | 575 VAC, 600 VAC |
| Number of Speeds | 1 |
| Part Number | 01036ES3HSA90LL |
| Phase | 3, 3 ph, Three |
| Product Type | General Purpose |
| Rotation | CW |
| RPM | 3480, 3600, 3,600 RPM |
| RPM Range | 3,001-3,600 |
| Service Factor | 1, 1.15 |
| Shaft Dia. | 1 3/16 in |
| Shaft Length | 2 1/2 in |
| Shaft Size | 30 mm Dia x 2-1/2 in L |
| Speed | 3480 rpm |
| Speed (RPM) | 3600 |
| Standards | NEMA MG-1 |
| Supplier: | WEG ELECTRIC CORP |
| Temperature Rating | -20 to 40 deg C |
| UPC: | 7909322452661 |
| Usable @ 200V | No |
| Usable @ 208V | No |
| Voltage | 575V AC, 575V, 575 |
| Voltage (AC) | 575 VAC |
| Voltage Compatibility | 575V AC |
| Volts | 575 |
| Weight | 180.040000, 180 lb |
All Prices
| Img | Seller | Supplier SKU | Requested Price | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Global Industrial | WBB881431 | 699.0 | 699.0 | 1 | In Stock | 18 | WEG | 699.0 @ Qty: 1+ | ||
 | Walker Industrial | 01036ES3HSA90LL | 1464.75 | 1464.75 | 1 | In Stock | 17 | WEG | 1464.75 @ Qty: 1+ | |
 | MRO Supply | 1315153 | 1494.47 | 1494.47 | 1 | In Stock | WEG | 1494.47 @ Qty: 1+ | ||
 | motorsandcontrol.com | 01036ES3HSA90LL | 1547.41 | 1547.41 | 1 | In Stock | WEG Electric | 170.0 | 1547.41 @ Qty: 1+ | |
 | Galco | 01036ES3HSA90LL-WEG | 1604.07 | 1604.07 | 1 | In Stock | WEG Electric | 170.0 | 1604.07 @ Qty: 1+ | |
 | industrialrefrigerationparts.com | 01036ES3HSA90LL | 1654.54 | 1654.54 | 1 | In Stock | WEG | 180.04 | 1654.54 @ Qty: 1+ | |
| kscdirect.com | WEG 01036ES3HSA90LL | 1662.38 | 1662.38 | 1 | In Stock | WEG ELECTRIC CORP | 1662.38 @ Qty: 1+ | |||
 | Zoro | G0944587 | 1694.75 | 1694.75 | 1 | In Stock | 15 | Weg | 178.0 | 1694.75 @ Qty: 1+ |
 | Purvis | 01036ES3HSA90LL | 1785.04 | 1785.04 | 1 | In Stock | WEG | 1785.04 @ Qty: 1+ | ||
 | Radwell | 01036ES3HSA90LL | 1800.0 | 1800.0 | 1 | In Stock | WEG | 1800.0 @ Qty: 1+ | ||
 | Dealers Electric | 01036ES3HSA90LL | 1939.01 | 1939.01 | 1 | In Stock | Weg | 170.0 | 1939.01 @ Qty: 1+ | |
 | National Supply Network | B881431 | 2463.99 | 2463.99 | 1 | In Stock | Weg Electric Motors | 2463.99 @ Qty: 1+ | ||
 | sustainablesupply.com | C2848527 | 2549.81 | 2549.81 | 1 | In Stock | WEG | 178.0 | 2549.81 @ Qty: 1+ | |
 | Raptor Supplies | AD7RUQ | 3144.401676 | 3144.401676 | 1 | In Stock | WEG | 3144.401676 @ Qty: 1+ |
