Weg Electric 01036ET3E215JP-S

B07BQDR65G

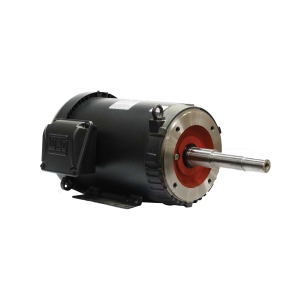

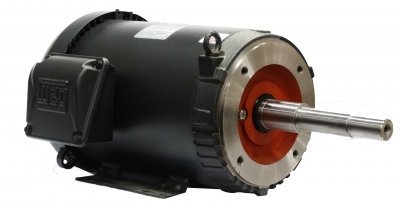

WEG Electric, 01036ET3E215JP-S, 10HP, 3600RPM, 3PH, 208V;230V;460V, 213/5JP Frame, Standard Flange, Foot Mount, TEFC, Close Coupled Pump Motor.

WEG Electric, 01036ET3E215JP-S, 10HP, 3600RPM, 3PH, 208V;230V;460V, 213/5JP Frame, Standard Flange, Foot Mount, TEFC, Close Coupled Pump Motor.zoom

Attributes

Key Value
Amperage Rating11.5 A
Application TypeJet Pump (JM/JP) Motors
ClassificationJM-JP & Jet Pump
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Degree of ProtectionIP55
Description:MOTOR 10HP 2P 213/5JP W.
Dimensions26.654 in L
Drive End Flange TypeC-Face
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight173.00
Family SeriesWEG Electric Motors
FL Amps11.5
FL Efficiency90.2
FlangesFlange C
Frame215JP, 213JP, 213/5JP
Frame RemarksClose Coupled Pump, Foo.
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower10 hp
HP10
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number01036ET3E215JP-S
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number01036ET3E215JP-S
MaterialRolled Steel
MFG Part #:01036ET3E215JP-S
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, C-Face Foot.
NEMA Frame213/5JP
Net Weight0 lbs
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating10 hp
Part Number01036ET3E215JP-S
Phase3, 3 ph
Product TypePump
Replaces01036EP3E215JP-S
RPM3600, 3400 - 3600, 3,60.
Service Factor1.15
Speed3600 rpm
Speed (RPM)3600
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
Torque Rating14.7 ft-lb
TypeClosed Couple Pump Cont.
UPC:7909322301327
Variable Torque Speed R.1000:1
Voltage230/460//190-220/380-41.
Voltage (AC)208 VAC
Volts208/230/460
Weight184.200000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotorsandcontrol.com01036ET3E215JP-S1335.541In StockWEG Electric173.01335.54 @ 1
thumbzoomWalker Industrial01036ET3E215JP-S1350.751In Stock17WEG1350.75 @ 1
kscdirect.comWEG 01036ET3E215JP-S1361.711In StockWEG ELECTRIC CORP1361.71 @ 1
thumbzoomMRO Supply25202331378.161In StockWEG1378.16 @ 1
thumbzoomGalco01036ET3E215JP-S-WEG1479.231In StockWEG Electric1479.23 @ 1
thumbzoomindustrialrefrigerationparts.com01036ET3E215JP-S1525.761In StockWEG184.21525.76 @ 1
thumbzoomDealers Electric01036ET3E215JP-S1644.351In StockWeg173.01644.35 @ 1
thumbzoomPurvis01036ET3E215JP-S1646.111In StockWEG1646.11 @ 1
thumbzoomRadwell01036ET3E215JP-S1650.01In StockWEG1650.0 @ 1
thumbzoommotionindustries.com061434332164.631In StockWEG Electric Corporation2164.63 @ 1
