WEG Electric Motor 01518ET3ER254TC-W22

B00BC8W700

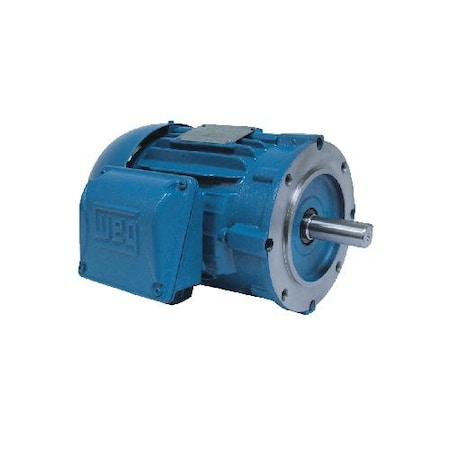

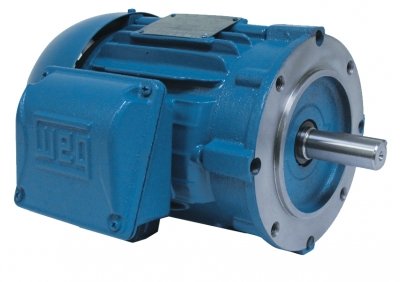

WEG Electric, 01518ET3ER254TC-W22, 15HP, 1800RPM, 3PH, 208V;230V;460V, 254TC Frame, C-Face Flange, Footless, TEFC, General Purpose Motor.

WEG Electric, 01518ET3ER254TC-W22, 15HP, 1800RPM, 3PH, 208V;230V;460V, 254TC Frame, C-Face Flange, Footless, TEFC, General Purpose Motor.zoom

Attributes

Key Value
Amperage Rating39.8 to 36/18 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationThree Phase
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Brazil
Degree of ProtectionIP55
Description:MOTOR 15HP 4P 254TC WFF2
Dimensions25.063 in L
Drive End Flange TypeC-Face
Efficiency %92.4 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight332.00
Family SeriesWEG Electric Motors
FL Amps18.0
FL Efficiency92.4
FlangesFlange C
FRAME254TC
Frame254TC
Frame MaterialCast Iron
Frame RemarksRound Body, Footless
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps18
Gross Weight0 lbs
Hertz60
Horsepower15 hp
HP15
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number01518ET3ER254TC-W22
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number01518ET3ER254TC-W22
MaterialCast Iron
MFG Part #:01518ET3ER254TC-W22
Model11622394
Motor Enclosure DesignTEFC
Motor Mounting TypeFootless
Motor Service Factor1.25
MountingFootless (W-6), Footless
Mounting TypeC-Face Footless, Footle.
Nameplate RPM1800
NEMA Frame254TC
Net Weight266 lbs
Nominal Efficiency92.4
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating15 hp
Overall Length25.063
Part Number01518ET3ER254TC-W22
Phase3, 3 ph
Product TypeGeneral Purpose
Replaces01518EP3ER254TC-W22
RotationCW/CCW
RPM1,800 RPM, 1800
Service Factor1.25
Speed1800 rpm
Speed (RPM)1800
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7891327560390
VOLTAGE230/460
Voltage230/460//380 V, 208-230.
Voltage (AC)208 VAC
Volts208/230/460
WEIGHT348
Weight335.210000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com01518ET3ER254TC-W221168.01In StockWEG306.01168.0 @ 1
thumbzoomWalker Industrial01518ET3ER254TC-W221481.251In Stock17WEG1481.25 @ 1
thumbzoommotorsandcontrol.com01518ET3ER254TC-W221481.251In StockWEG Electric332.01481.25 @ 1
thumbzoomMRO Supply13122821511.31In StockWEG1511.3 @ 1
kscdirect.comWEG 01518ET3ER254TC-W221516.751In StockWEG ELECTRIC CORP1516.75 @ 1
thumbzoomGalco01518ET3ER254TC-W22-WEG1622.131In StockWEG Electric266.01622.13 @ 1
thumbzoomindustrialrefrigerationparts.com01518ET3ER254TC-W221673.181In StockWEG335.211673.18 @ 1
thumbzoomZoroG4024844811725.441In Stock11Weg348.01725.44 @ 1
thumbzoomRadwell01518ET3ER254TC-W221800.01In StockWEG1800.0 @ 1
thumbzoomDealers Electric01518ET3ER254TC-W221803.191In StockWeg332.01803.19 @ 1
thumbzoomPurvis01518ET3ER254TC-W221805.151In StockWEG1805.15 @ 1
thumbzoomvfds.com01518ET3ER254TC-W221975.01In StockWEG1975.0 @ 1
Airline HydraulicsWEG 01518ET3ER254TC-W222036.081In StockWEG2036.08 @ 1
thumbzoomNational Supply NetworkB8734702639.111In StockWeg Electric Motors2639.11 @ 1
