Weg Electric 02036XT3H256T

B00BC88CU4

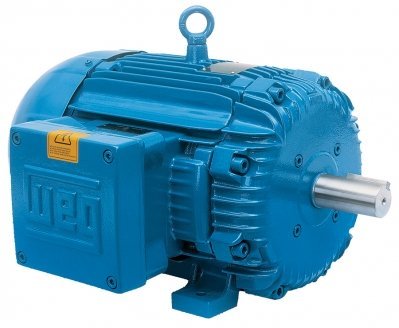

WEG Electric, 02036XT3H256T, 20HP, 3600RPM, 3PH, 575V, 256T Frame, Standard Flange, Foot Mount, TEFC, Explosion Proof Motor.

WEG Electric, 02036XT3H256T, 20HP, 3600RPM, 3PH, 575V, 256T Frame, Standard Flange, Foot Mount, TEFC, Explosion Proof Motor.zoom

Attributes

Key Value
Amperage Rating18.6 A
Bearing TypeBall
ClassificationThree Phase
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Degree of ProtectionIP55
Description:MOTOR 20HP 2P 256T WFX1
Dimensions24.923 in L
Drive End Flange TypeStandard
EfficiencyLeft position
EnclosureTEFC, XP, XPFC, F-1
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight374.00
Explosion Proof RatingClass I (Group C,D) Cla.
FL Amps18.5
FL Efficiency91.7
Frame256T
Frame RemarksFooted
Frequency60 Hz
Frequency Rating60 Hz
Hertz60
Horsepower20 HP
HP20
Hz60
Insulation ClassClass F
Item ConditionFactory New
ManufacturerWEG Electric, WEG, WEG .
MaterialCast Iron
MFG Part #:02036XT3H256T
Model14406978
MountingFoot Mount
Mounting TypeFooted
Number of Poles2
Number of Speeds1
Output Rating20 HP
Part Number02036XT3H256T
Phase3, 3 ph
Product TypeExplosion Proof
RotationCW/CCW
RPM3530, 3600
Service Factor1.15
Special FeaturesExplosion Proof AC Moto.
Speed3530 rpm
Speed (RPM)3600
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxWithout
UPC:7909492060253
Voltage575 V, 575V, 575
Volts575

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Global IndustrialWBB880962774.01In Stock18WEG774.0 @ 1
thumbzoomWalker Industrial02036XT3H256T2312.251In Stock17WEG2312.25 @ 1
thumbzoomMRO Supply13143622359.171In StockWEG2359.17 @ 1
thumbzoommotorsandcontrol.com02036XT3H256T2442.741In StockWEG Electric374.02442.74 @ 1
thumbzoomindustrialrefrigerationparts.com02036XT3H256T2611.841In StockWEG2611.84 @ 1
kscdirect.comWEG 02036XT3H256T2624.231In StockWEG ELECTRIC CORP2624.23 @ 1
thumbzoomPurvis02036XT3H256T2817.861In StockWEG2817.86 @ 1
thumbzoomDealers Electric02036XT3H256T3060.911In StockWeg374.03060.91 @ 1
thumbzoomNational Supply NetworkB8809623882.391In StockWeg Electric Motors3882.39 @ 1
motionindustries.com048687013954.561In StockWEG Electric Corporation3954.56 @ 1
