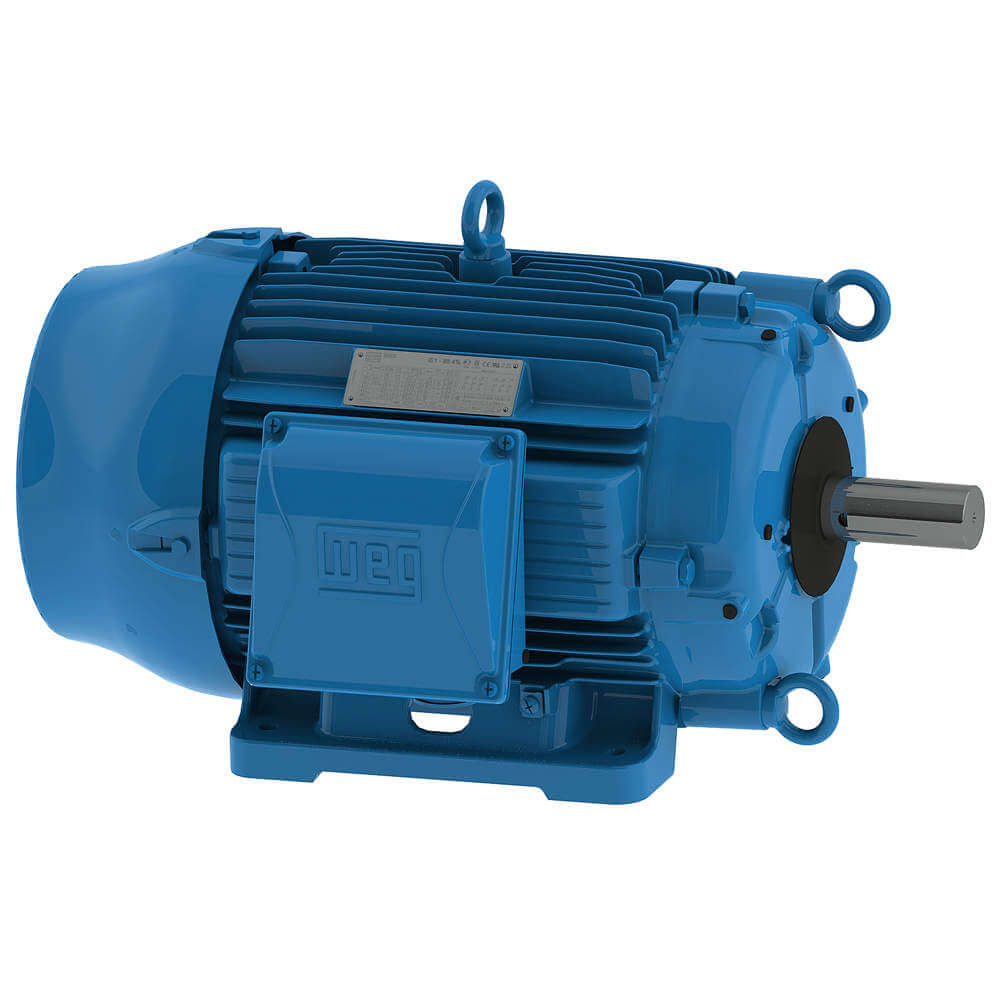

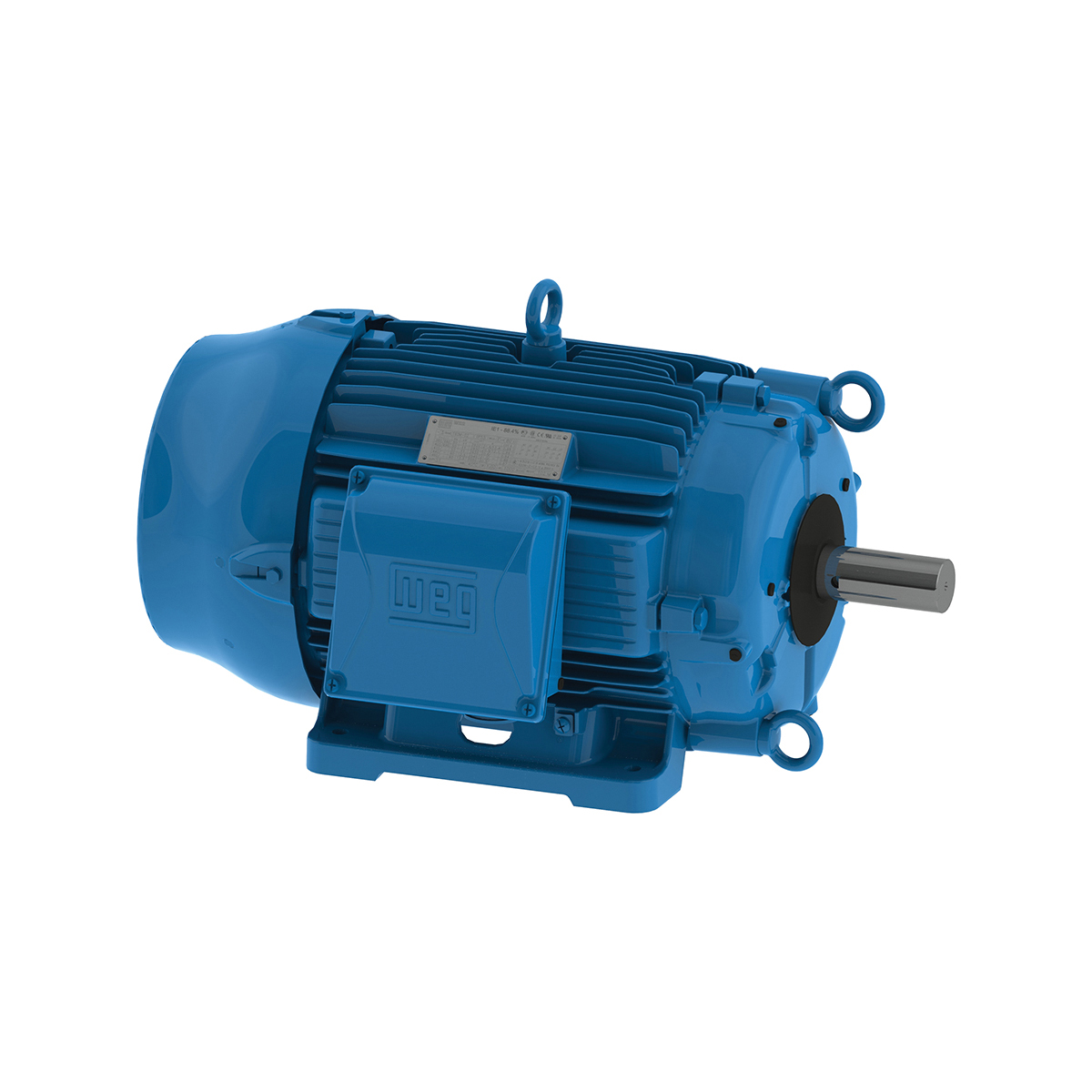

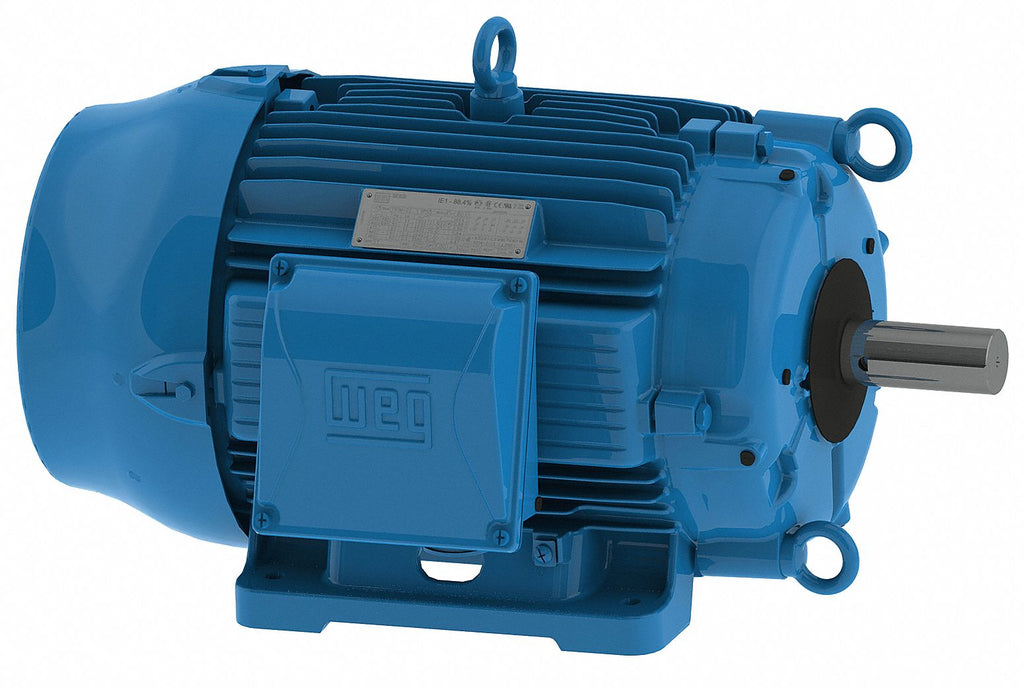

WEG 02518ET3ECT284TF1-W2 NEMA Premium TEFC Definite Purpose Cooling Tower Electric Motor, Cast Iron 284T Frame, Base Mount, 25HP, 3-Phase, 1765 RPM, 208-230/460V, 50/60Hz

WEG 02518ET3ECT284TF1-W2 NEMA Premium TEFC Definite Purpose Cooling Tower Electric Motor, Cast Iron 284T Frame, Base Mount, 25HP, 3-Phase, 1765 RPM, 208-230/460V, 50/60Hzzoom

Attributes

Key Value
Ambient Temperature40 Degrees C
Amperage Rating65.2 to 59/29.5 A
Application TypeAir Handling Motors, Ch.
Bearing TypeBall
Body Dia.13 3/4 in
CategoryElectric Motor
CC NumberCC029A
CompositionCast Iron
ConditionNew
Conduit Box LocationExterior
Conduit Box PositionF1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 25HP 4P 284T WFF2
Dimensions26.433 in L
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
Efficiency %93.6 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight435.00
Family SeriesWEG Electric Motors
FeaturesDurable synthetic ename.
FinishPainted
FL Amps29.5
FL Efficiency93.6
FlangesWithout Flanges
Frame284T
Frame MaterialCast Iron
Frame Number284
Frame RemarksCooling Tower
Frame SuffixT
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps59.0/29.5
Full Load Amps @ 50Hz27.5, 28.2, 29.1, 33.2,.
Green Certification or .NEMA Premium Rated
Green Environmental Att.Product Contributes To .
Gross Weight0 lbs
Hertz60
Horsepower25 hp
HP25
HP @ 50Hz25
Hz60
IncludesSpace Heater
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
ItemCooling Tower Motor
Item ConditionFactory New
Item Number02518ET3ECT284TF1-W2
Length Less Shaft21 13/16 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number02518ET3ECT284TF1-W2
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:02518ET3ECT284TF1-W2
Motor ApplicationCooling Tower
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionAll Angle
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
mountingRigid Base
Mounting TypeFoot Mount, Footed
Nameplate RPM1,765
NEMA Frame284T
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency93.6 %
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating25 hp
Output Watts18500 W
Overall Length26 7/16 in
Part Number02518ET3ECT284TF1-W2
Phase3, Three, 3 ph
Product TypeGeneral Purpose
Removable BaseYes
RotationCW/CCW
RPM1,800 RPM, 1800, 1765
RPM @ 50Hz1,470
RPM Range1,701-1,800
Service Factor1.25
Service Factor @ 50Hz1.25
Shaft Dia.1 7/8 in
Shaft Length4 5/8 in
Shaft Size1-7/8 in Dia x 3-1/4 in.
Speed1765 rpm
Speed (RPM)1800
StandardNEMA MG-1
StandardsCE, CSA Certified (LR38.
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7909018258300
Usable @ 200VNo
Usable @ 208VYes
Voltage230/460//380 V, 230/460.
Voltage (AC)208 VAC
Voltage @ 50Hz380V AC, 400V AC, 415V .
Voltage Compatibility200-230/440V AC, 200-23.
Volts208-230/460
Warranty3 yr
Weight439.700000, 410 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial02518ET3ECT284TF1-W22427.01In Stock17WEG2427.0 @ 1
thumbzoomMRO Supply13130342476.251In StockWEG2476.25 @ 1
thumbzoommotorsandcontrol.com02518ET3ECT284TF1-W22563.971In StockWEG Electric435.02563.97 @ 1
thumbzoomZoroG44795012627.012Weg440.02627.0 @ 1
thumbzoomGalco02518ET3ECT284TF1-W2-WEG2657.841In StockWEG Electric2657.84 @ 1
thumbzoomindustrialrefrigerationparts.com02518ET3ECT284TF1-W22741.461In StockWEG439.72741.46 @ 1
kscdirect.comWEG 02518ET3ECT284TF1-W22754.471In StockWEG ELECTRIC CORP2754.47 @ 1
thumbzoomDealers Electric02518ET3ECT284TF1-W22824.01In StockWeg404.02824.0 @ 1
thumbzoomPurvis02518ET3ECT284TF1-W23591.961In StockWEG3591.96 @ 1
thumbzoomNational Supply NetworkB8879194013.191In StockWeg Electric Motors4013.19 @ 1
thumbzoomsustainablesupply.comC15444034309.681In StockWEG440.04309.68 @ 1
thumbzoomRaptor SuppliesAA8MCY5314.6752751In StockWEG5314.675275 @ 1
