WEG 04036ET3E324JP-W22

B007PB1CVS

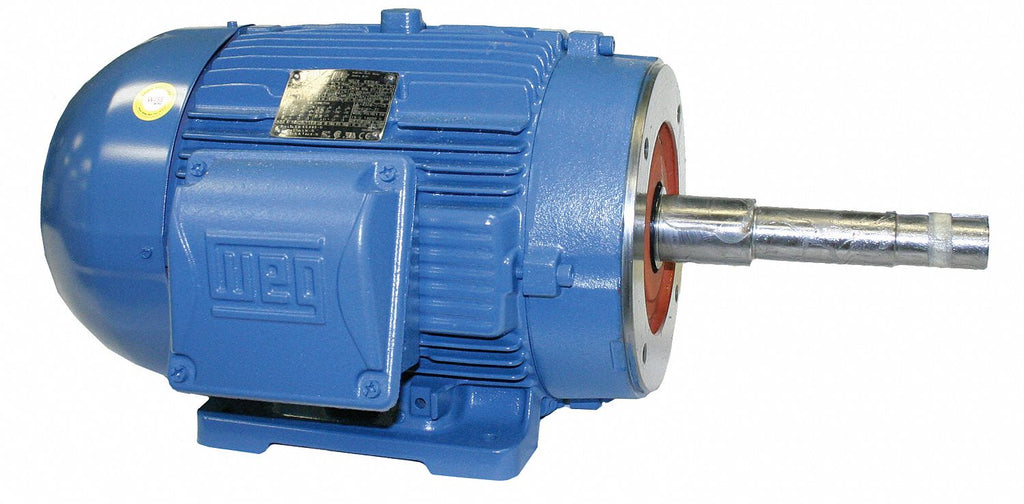

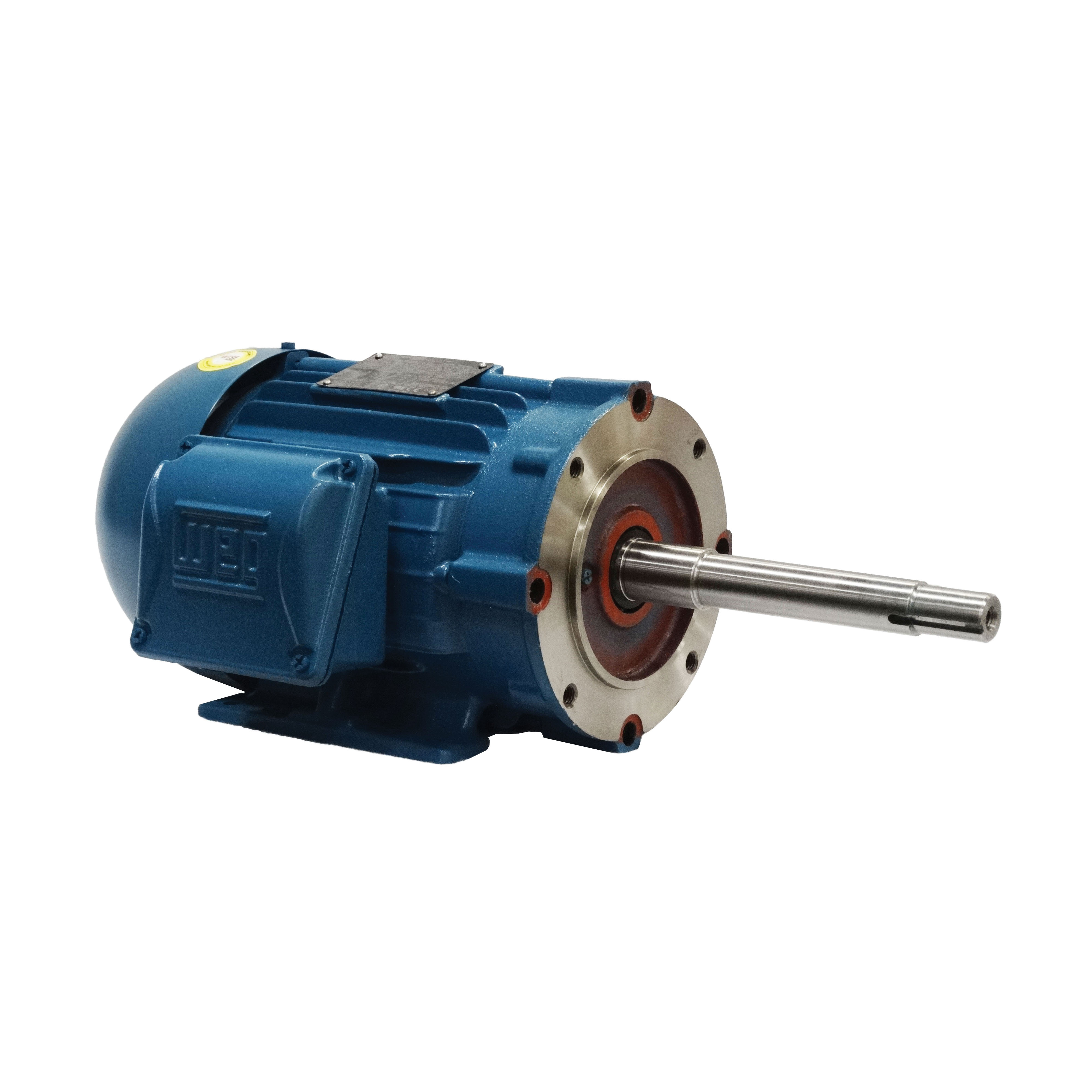

WEG 04036ET3E324JP-W22 JP Type TEFC NEMA Premium Close Coupled Pump Motor, 40 HP, 3-Phase, 3555 rpm, 208-230/460 V, 60 Hz, Frame 324JP

WEG 04036ET3E324JP-W22 JP Type TEFC NEMA Premium Close Coupled Pump Motor, 40 HP, 3-Phase, 3555 rpm, 208-230/460 V, 60 Hz, Frame 324JPzoom

Attributes

Key Value
Amperage Rating101 to 91.6/45.8 A
ApplicationIndustrial and Commerci.
Application TypeJet Pump (JM/JP) Motors
Bearing TypeBall
Body Dia.15.9 in
Bolt Circle Dia.11 in
CC NumberCC029A
ClassificationJM-JP & Jet Pump
CompositionCast Iron
ConditionNew
Conduit Box LocationExterior
Conduit Box PositionF1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 40HP 2P 324/6JP W.
Dimensions34.021 in L
Drive End Flange TypeC-Face
DutyContinuous
Duty CycleContinuous
Efficiency %92.4 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight579.00
Family SeriesWEG Electric Motors
FL Amps45.8
FL Efficiency92.4
FlangesC-Face Flange
Frame326JP, 324JP, 324/6JP
Frame MaterialCast Iron
Frame RemarksClose Coupled Pump, Foo.
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps101.0-91.6/45.8
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Height15 15/16 in
Hertz60
Horsepower40 hp
HP40
Hz60
Ins. ClassF
Insulation ClassClass F
Inverter RatedYes
Inverter Rating1000:1
ItemClose-Coupled Pump Motor
Item ConditionFactory New
Item Number04036ET3E324JP-W22
Length Less Shaft25 7/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number04036ET3E324JP-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:04036ET3E324JP-W22
Model12603096
Motor ApplicationPump
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeFace/Base
Motor Service Factor1.25
Motor Shaft DesignJP Threaded
Motor Shaft RotationCW/CCW
Motor Sub ApplicationClose-Coupled Pump
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
Nameplate RPM3,555
NEMA DesignB
NEMA Frame324JP
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency92.4 %
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating40 hp
Overall Length34 in
Part Number04036ET3E324JP-W22
Phase3, 3 ph, Three
Product TypePump
Regreasable BearingsRegreasable Bearings
Replaces04036EP3E324JP-W22
RotationCW/CCW
RPM3555, 3600, 3,600 RPM
RPM Range3,001-3,600
Service Factor1.25
Shaft Dia.1 1/4 in
Shaft Length8 1/8 in
Shaft MaterialCarbon Steel
Shaft Size1-1/4 in Dia x 7-7/8 in.
Speed3555 rpm
Speed (RPM)3600
StandardNEMA MG-1
StandardsCSA (LR38324), CSA (LR5.
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7909158384297
Usable @ 200VNo
Usable @ 208VYes
Voltage208-230/460V AC, 230/46.
Voltage (AC)208 VAC
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight568 lb, 604.350000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com04036ET3E324JP-W222830.01In StockWEG568.02830.0 @ 1
thumbzoomWalker Industrial04036ET3E324JP-W224221.01In Stock17WEG4221.0 @ 1
thumbzoommotorsandcontrol.com04036ET3E324JP-W224221.01In StockWEG Electric579.04221.0 @ 1
thumbzoomGalco04036ET3E324JP-W22-WEG4622.471In StockWEG Electric4622.47 @ 1
thumbzoomDealers Electric04036ET3E324JP-W224624.591In StockWeg579.04624.59 @ 1
thumbzoomindustrialrefrigerationparts.com04036ET3E324JP-W224681.211In StockWEG604.354681.21 @ 1
kscdirect.comWEG 04036ET3E324JP-W224790.521In StockWEG ELECTRIC CORP4790.52 @ 1
thumbzoomZoroG98580554984.641In Stock26Weg548.14984.64 @ 1
thumbzoomRadwell04036ET3E324JP-W225100.01In StockWEG5100.0 @ 1
thumbzoomPurvis04036ET3E324JP-W226247.081In StockWEG6247.08 @ 1
AmazonTPB007PB1CVS6598.191In Stock30WEG6598.19 @ 1
thumbzoomNational Supply NetworkB8819737127.391In StockWeg Electric Motors7127.39 @ 1
motionindustries.com047021467886.941In StockWEG Electric Corporation7886.94 @ 1
thumbzoomsustainablesupply.comC14928328089.941In StockWEG548.18089.94 @ 1
thumbzoomRaptor SuppliesAE8UHR10180.05294151In StockWEG10180.0529415 @ 1
