WEG 05036EG3E326TS-W22

B00BC8ZH66

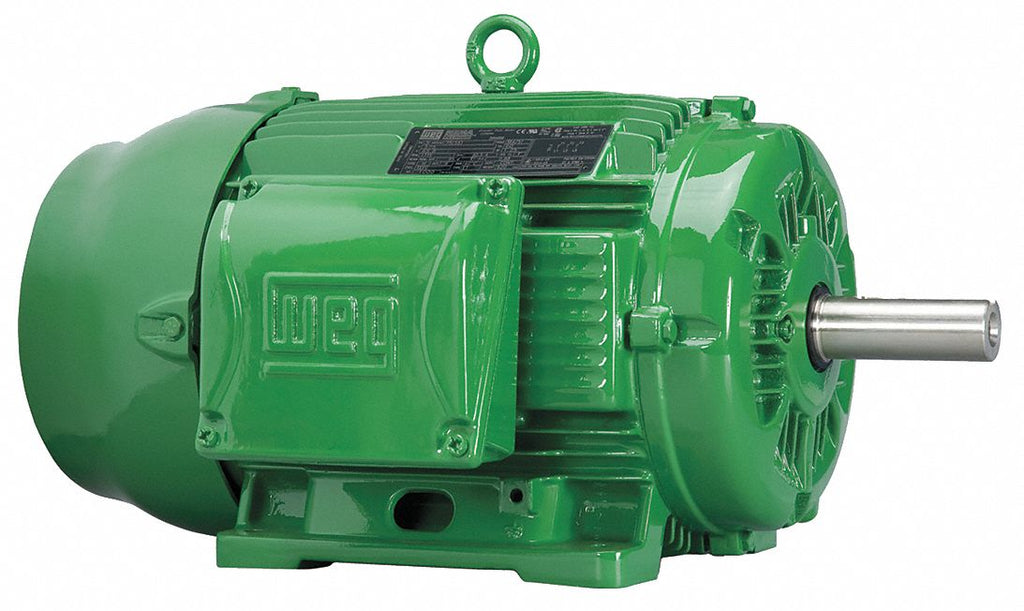

WEG 05036EG3E326TS-W22 NEMA Super Premium Efficiency Severe Duty and General Purpose Electric, 50 HP, 3-Phase, 3570 rpm, 208-230/460 V, 60 Hz, Frame 324/6TS

WEG 05036EG3E326TS-W22 NEMA Super Premium Efficiency Severe Duty and General Purpose Electric, 50 HP, 3-Phase, 3570 rpm, 208-230/460 V, 60 Hz, Frame 324/6TSzoom

Attributes

Key Value
Amperage Rating114/57.1 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationSuper Premium
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 50HP 2P 324/6TS W.
Dimensions29.616 in L
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
Efficiency %94.5 %
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight625.00
Family SeriesWEG Electric Motors
FL Amps57.1
FL Efficiency94.5
FlangesWithout
Footnotes20:1 CT & 1000:1 VT
Frame326TS, 324/6TS
Frame MaterialCast Iron
Frame RemarksFooted, Super Premium
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps114.0/57.1
Full Load Amps @ 50Hz62.6, 64.2, 67.1
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower50 hp
HP50
HP @ 50Hz50
Hz60
Ins. ClassF
Insulation ClassClass F
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number05036EG3E326TS-W22
Length Less Shaft25 7/8 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number05036EG3E326TS-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:05036EG3E326TS-W22
Model11792446
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Nameplate RPM3,570
NEMA DesignA
NEMA Frame326TS
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency94.5 %
Nominal Voltage208 VAC
Number of Poles4
Number of Speeds1
Output Rating25 HP
Overall Length29 5/8 in
Part Number05036EG3E326TS-W22
Phase3, 3 ph, Three
Product TypeGeneral Purpose
RotationCW/CCW
RPM3600, 3570, 3,600 RPM
RPM @ 50Hz2,960
RPM Group3001-3600
RPM Range3,001-3,600
Service Factor1.25
Service Factor @ 50Hz1.15, 1.25
Shaft Dia.1 7/8 in
Shaft Length3 3/4 in
Shaft Size1-7/8 in Dia x 3-3/4 in.
Speed (RPM)3600
StandardNEMA MG-1
StandardsCE, CSA, NOM, UL
Supplier:WEG ELECTRIC CORP
Synchronous Speed1800 rpm
Terminal BoxLeft position
UPC:7891327885417
Usable @ 200VNo
Usable @ 208VYes
Voltage575 V, 230/460V AC, 208.
Voltage (AC)208 VAC
Voltage @ 50Hz380V AC, 400V AC, 415V .
Voltage Compatibility200-230/440V AC, 200-23.
Volts208/230/460
Weight599 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial05036EG3E326TS-W224386.01In Stock17WEG4386.0 @ 1
thumbzoommotorsandcontrol.com05036EG3E326TS-W224386.01In StockWEG Electric625.04386.0 @ 1
kscdirect.comWEG 05036EG3E326TS-W224491.111In StockWEG ELECTRIC CORP4491.11 @ 1
thumbzoomGalco05036EG3E326TS-W22-WEG4803.161In StockWEG Electric4803.16 @ 1
thumbzoomZoroG98889524812.551In Stock26Weg636.04812.55 @ 1
thumbzoomindustrialrefrigerationparts.com05036EG3E326TS-W224864.21In StockWEG4864.2 @ 1
thumbzoomRadwell05036EG3E326TS-W225250.01In StockWEG5250.0 @ 1
thumbzoomDealers Electric05036EG3E326TS-W225339.271In StockWeg625.05339.27 @ 1
thumbzoomPurvis05036EG3E326TS-W225345.071In StockWEG5345.07 @ 1
thumbzoomsustainablesupply.comC14912356647.911In StockWEG636.06647.91 @ 1
thumbzoomNational Supply NetworkB8740577323.991In StockWeg Electric Motors7323.99 @ 1
motionindustries.com048635918195.241In StockWEG Electric Corporation8195.24 @ 1
thumbzoomRaptor SuppliesAC8BFX8198.16455251In StockWEG8198.1645525 @ 1
AmazonTPB00BC8ZH6613658.531In Stock15WEG13658.53 @ 1
