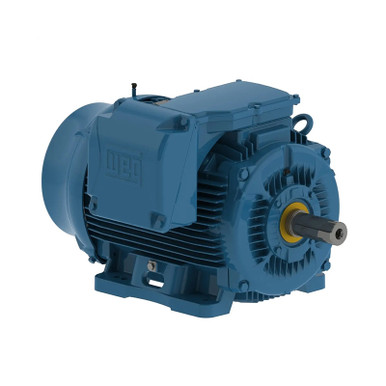

WEG Electric Motor 20012ST3HIERB449T-W2

B00BC8W0CK

WEG Electric, 20012ST3HIERB449T-W2, 200HP, 1200RPM, 3PH, 575V, 447/9T Frame, Standard Flange, Foot Mount, TEFC, IEEE 841 Motor.

WEG Electric, 20012ST3HIERB449T-W2, 200HP, 1200RPM, 3PH, 575V, 447/9T Frame, Standard Flange, Foot Mount, TEFC, IEEE 841 Motor.zoom

Attributes

Key Value
Amperage Rating190 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationIEEE 841
Comments60 Hz
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Degree of ProtectionIP55
Description:MOTOR 200HP 6P 447/9T W.
Dimensions56.338 in L
Drive End Flange TypeStandard
EnclosureTEFC, IC411-TEFC, Total.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight2936.00
Family SeriesWEG Electric Motors
FL Amps190
FL Efficiency95.8
FlangesWithout Flanges
Frame449T, 447T, 447/9T
Frame RemarksFooted, Premium, IEEE 8.
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower200 HP
HP200
Hz60
Insulation ClassClass F
Item ConditionFactory New
Item Number20012ST3HIERB449T-W2
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number20012ST3HIERB449T-W2
MaterialCast Iron
MFG Part #:20012ST3HIERB449T-W2
Model12037906
MountingFoot Mount, Foot-mounte.
Mounting TypeFoot Mount, Footed
NEMA Frame447/9T
Net Weight0 lbs
Nominal Voltage575 VAC, 600 VAC
Number of Poles6
Number of Speeds1
Output Rating200 HP
Part Number20012ST3HIERB449T-W2
Phase3, 3 ph
Product TypeSevere Duty & IEEE 841
RotationCW/CCW
RPM1,200 RPM, 1200
Service Factor1.15
Speed1185 rpm
Speed (RPM)1200
StandardNEMA MG-1
Supplier:WEG ELECTRIC CORP
Synchronous Speed1200 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
UPC:7909018396422
Voltage575 V, 575V, 575
Voltage (AC)575 VAC
Volts575
Weight3033.440000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomWalker Industrial20012ST3HIERB449T-W220667.751In Stock17WEG20667.75 @ 1
thumbzoommotorsandcontrol.com20012ST3HIERB449T-W221834.161In StockWEG Electric2936.021834.16 @ 1
thumbzoomindustrialrefrigerationparts.com20012ST3HIERB449T-W222581.551In StockWEG3033.4422581.55 @ 1
thumbzoomGalco20012ST3HIERB449T-W2-WEG22633.481In StockWEG Electric22633.48 @ 1
kscdirect.comWEG 20012ST3HIERB449T-W223456.371In StockWEG ELECTRIC CORP23456.37 @ 1
thumbzoomRadwell20012ST3HIERB449T-W224750.01In StockWEG24750.0 @ 1
thumbzoomDealers Electric20012ST3HIERB449T-W225159.81In StockWeg2936.025159.8 @ 1
thumbzoomPurvis20012ST3HIERB449T-W225187.11In StockWEG25187.1 @ 1
thumbzoomvfds.com20012ST3HIERB449T-W227557.01In StockWEG27557.0 @ 1
thumbzoomNational Supply NetworkB88118432035.591In StockWeg Electric Motors32035.59 @ 1
prev
