WEG 20036EG3G447TS-W22

B00BC8U6DK

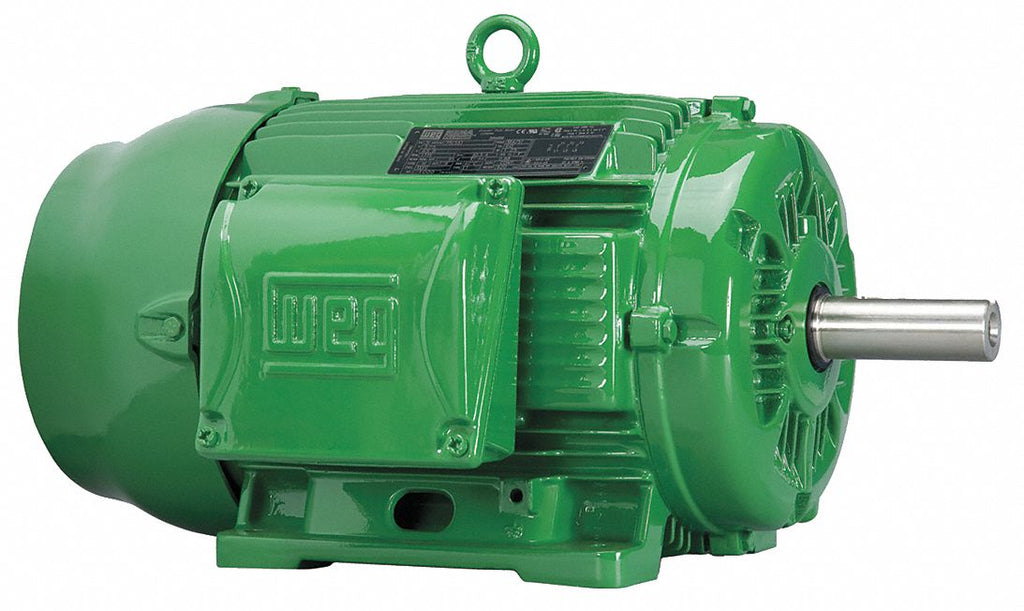

WEG 20036EG3G447TS-W22 Severe Duty and General Purpose Super Premium Electric Motor, 200 HP, 3-Phase, 3575 rpm, 460 V, 60 Hz, Frame 445/7TS

WEG 20036EG3G447TS-W22 Severe Duty and General Purpose Super Premium Electric Motor, 200 HP, 3-Phase, 3575 rpm, 460 V, 60 Hz, Frame 445/7TSzoom

Attributes

Key Value
Amperage Rating217 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
CC NumberCC029A
ClassificationSuper Premium
CompositionCast Iron
ConditionNew
Constant Torque Speed R.20:1
ConstructionCast Iron
Country of Origin (subj.Multiple
Degree of ProtectionIP55
Description:MOTOR 200HP 2P 445/7TS .
Dimensions44.951 in L
Drive End Flange TypeStandard
DutyContinuous
Duty CycleContinuous
Efficiency %96.2 %
EnclosureTEFC, IC411 - TEFC, Tot.
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight2342.00
Family SeriesWEG Electric Motors
FL Amps217
FL Efficiency96.2
FlangesWithout Flanges
Footnotes20:1 CT & 1000:1 VT
Frame445TS, 447TS, 445/7TS
Frame MaterialCast Iron
Frame RemarksFooted, Super Premium
Frequency60 Hz
Frequency Rating60 Hz
Full Load Amps217.0
Full Load Amps @ 50Hz244.0, 253.0, 261
Green Certification or .NEMA Premium(R) Rated
Gross Weight0 lbs
Hertz60
Horsepower200 hp
HP200
HP @ 50Hz200
Hz60
Ins. ClassF
Insulation ClassClass F
ItemGeneral Purpose Motor
Item ConditionFactory New
Item Number20036EG3G447TS-W22
Length Less Shaft40 1/4 in
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number20036EG3G447TS-W22
Manufacturers Warranty .3 yr
MaterialCast Iron
Max. Ambient Temp.40 Degrees C
MFG Part #:20036EG3G447TS-W22
Model11792551
Motor ApplicationGeneral Application
Motor BearingsBall
Motor Design3-Phase
Motor Efficiency GroupNEMA Premium Efficient
Motor Enclosure DesignTotally Enclosed Fan-Co.
Motor Frame MaterialCast Iron
Motor Mounting PositionHorizontal
Motor Mounting TypeRigid Base
Motor Service Factor1.25
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor Thermal ProtectionNone
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted, Foot Mount
Nameplate RPM3,575
NEMA DesignA
NEMA Frame445/7TS
Net Weight0 lbs
No. of Speeds1
Nominal Efficiency96.2 %
Nominal Voltage480 VAC
Number of Poles2
Number of Speeds1
Output Rating200 hp
Overall Length44 15/16 in
Part Number20036EG3G447TS-W22
Phase3, 3 ph, Three
Product TypeGeneral Purpose
RotationCW/CCW
RPM3575, 3600, 3,600 RPM
RPM @ 50Hz2,970
RPM Group3001-3600
RPM Range3,001-3,600
Service Factor1.25
Service Factor @ 50Hz1.15, 1.25
Shaft Dia.2 3/8 in
Shaft Length4 3/4 in
Shaft Size2-3/8 in Dia x 4-3/4 in.
Speed (RPM)3600
StandardNEMA MG-1
StandardsCE, CSA, NOM, UL
Supplier:WEG ELECTRIC CORP
Synchronous Speed3600 rpm
Terminal BoxLeft position
UPC:7891327885585
Usable @ 200VNo
Usable @ 208VNo
Voltage460V, 460 V, 460, 230/4.
Voltage (AC)460 VAC
Voltage @ 50Hz380V AC, 400V AC, 415V .
Voltage Compatibility200-230/440V AC, 200-23.
Volts460
Weight2,155 lb, 2327.620000

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotorsandcontrol.com20036EG3G447TS-W2219219.671In StockWEG Electric2342.019219.67 @ 1
Radwell20036EG3G447TS-W2219288.521In StockWEG19288.52 @ 1
thumbzoomWalker Industrial20036EG3G447TS-W2219438.51In Stock17WEG19438.5 @ 1
kscdirect.comWEG 20036EG3G447TS-W2219904.331In StockWEG ELECTRIC CORP19904.33 @ 1
thumbzoomZoroG988879421028.751In Stock26Weg2207.021028.75 @ 1
thumbzoomindustrialrefrigerationparts.com20036EG3G447TS-W2221238.481In StockWEG2327.6221238.48 @ 1
thumbzoomGalco20036EG3G447TS-W22-WEG21287.321In StockWEG Electric21287.32 @ 1
thumbzoomDealers Electric20036EG3G447TS-W2223663.381In StockWeg2342.023663.38 @ 1
thumbzoomPurvis20036EG3G447TS-W2223689.051In StockWEG23689.05 @ 1
thumbzoomcbtcompany.com20036EG3G447TS-W2224316.041In StockWEG24316.04 @ 1
thumbzoomsustainablesupply.comC149124229903.461In StockWEG1900.029903.46 @ 1
thumbzoomNational Supply NetworkB87321231111.591In StockWeg Electric Motors31111.59 @ 1
motionindustries.com0486546236320.841In StockWEG Electric Corporation36320.84 @ 1
thumbzoomRaptor SuppliesAC8BGR36876.7288891In StockWEG36876.728889 @ 1
