- mpn.5036OS3EA56
- brandname: WEG
- manufacturername: WEG

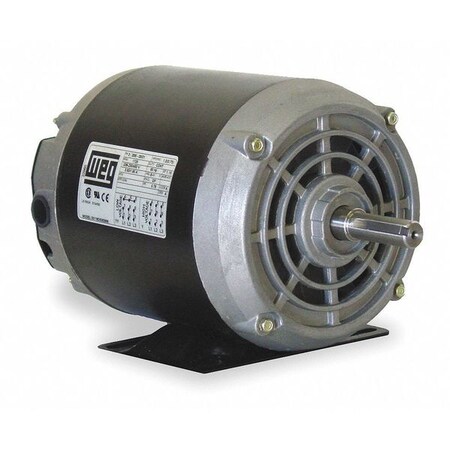

WEG .5036OS3EA56 1/2HP 3600 3 60 208-230/460V Nema 56 ODP
- Brand: WEG Electric Motor
- PartNumber: .5036OS3EA56
- PackageQuantity: 1
- Manufacturer: WEG
- Label: WEG
Attributes
| Key | Value |
|---|
| Classification | Three Phase |
| Country of Origin (subj. | Brazil |
| Duty | Continuous |
| Enclosure | ODP |
| Frame | 56, A56 |
| Frame Material | Rolled Steel |
| Frame Remarks | Footed |
| Full Load Amps | 1.9-1.8/0.91 |
| HP | 0.5, 1/2, .50 |
| Hz | 60 |
| Ins. Class | B |
| Item | General Purpose Motor |
| Item Condition | Factory New |
| Length Less Shaft | 8-7/16" |
| Manufacturer | WEG |
| Manufacturers Warranty . | 1-1/2 yr. |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 3480 |
| No. of Speeds | 1 |
| Nominal Efficiency | 66.0% |
| Overall Length | 10-5/16" |
| Phase | 3 |
| RPM | 3480, 3600 |
| RPM Group | 3001-3600 |
| RPM Range | 3001-3600 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1-7/8" |
| Standards | UL, CSA, CE |
| Voltage | 208-230/460 |
| Voltage Compatibility | 208, 230, 240, 460, 208. |
| Volts | 208/230/460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G2184375 | 159.8 | 1 | In Stock | 26 | Weg | | 159.8 @ 1 |
 | Dealers Electric | .5036OS3EA56 | 268.91 | 1 | In Stock | | Weg | 25.0 | 268.91 @ 1 |
