Weg Electric .7536ES3H56-S

B07BQDJT87

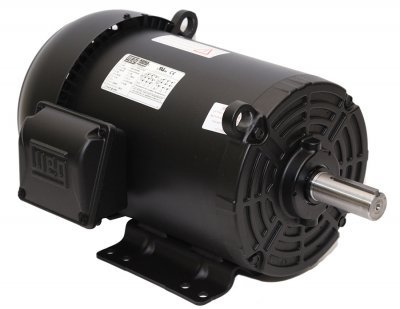

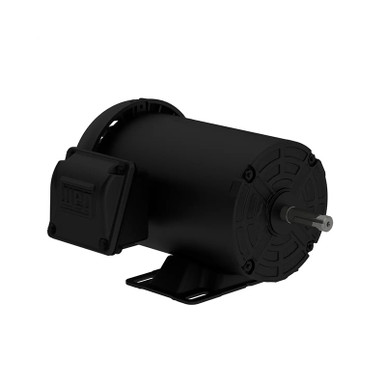

WEG Electric .7536ES3H56-S.75HP, 3600 RPM, 3PH, 575V, 56 Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motor

WEG Electric .7536ES3H56-S.75HP, 3600 RPM, 3PH, 575V, 56 Frame, Standard Flange, Foot Mount, TEFC, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating0.9 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
ClassificationThree Phase
ConditionNew
ConstructionRolled Steel
Description:MOTOR 0.75HP 2P 56 WCF2
Dimensions11.535 in L
Drive End Flange TypeStandard
duty / condition type:Continuous Duty
EnclosureTEFC, IC01 - ODP
Enclosure TypeTotally Enclosed Fan Co.
enclosure type:TEFC (Totally Enclosed .
Estimated Weight25.00
FL Amps0.90
FL Efficiency72.0
FlangesFlange C
Frame56
frame material:Rolled Steel
Frame RemarksFooted
frame size:56
Frequency60 Hz
Frequency Rating60 Hz
frequency rating:60 Hz
full load current:0.90 A
full load efficiency:72.00 %
Gross Weight0 lbs
harmonization code:8501.51.4040
Hertz60
Horsepower0.75 hp
HP.75, 0.75
Hz60
Insulation ClassClass F
insulation class:F
ip rating:55
Item ConditionFactory New
ManufacturerWEG Electric, WEG, WEG .
MaterialRolled Steel
MFG Part #:.7536ES3H56-S
Model12676242
motor horsepower:0.75 hp, 3/4 hp
motor phase:3 ph
motor supply voltage:575 V
MountingFoot Mount, Foot-mounte.
Mounting TypeFooted
mounting type:Footed
Number of Poles2
Number of Speeds1
Output Rating15 HP
overall length (c-dimen.11.54 in
Part Number.7536ES3H56-S
Phase3, 3 ph
Product TypeGeneral Purpose
Replaces.7536ES3HB56
RotationCW/CCW
RPM3600, 3400 - 3600
Service Factor1.15
service factor:1.15
Speed3475 rpm
Speed (RPM)3600
StandardNEMA MG-1
standards met:UL, CSA, CE
Supplier:WEG ELECTRIC CORP
synchronous rpm:3600 rpm
Synchronous Speed3600 rpm
Temperature Rating-20 to 40 deg C
Terminal BoxLeft position
Torque Rating1.12 ft-lb
UPC:7909158535293
Voltage200/400 V, 575V, 575
Volts575
volts @ frequency:575 V @ 60 Hz
Weight23.780000
weight:25 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kscdirect.comWEG .7536ES3H56-S216.01In StockWEG ELECTRIC CORP216.0 @ 1
thumbzoomWalker Industrial7536ES3H56-S216.01In Stock17WEG216.0 @ 1
thumbzoommotorsandcontrol.com.7536ES3H56-S216.01In StockWEG Electric25.0216.0 @ 1
thumbzoomMRO Supply2519292227.451In StockWEG227.45 @ 1
thumbzoomGalco.7536ES3H56-S-WEG236.551In StockWEG Electric236.55 @ 1
thumbzoommotionindustries.com06142994243.651In StockWEG Electric Corporation243.65 @ 1
thumbzoomindustrialrefrigerationparts.com.7536ES3H56-S251.961In StockWEG23.78251.96 @ 1
thumbzoomRadwell.7536ES3H56-S270.01In StockWEG270.0 @ 1
thumbzoomDealers Electric.7536ES3H56-S276.061In StockWeg25.0276.06 @ 1
thumbzoomvfds.com.7536ES3H56-S288.01In StockWEG288.0 @ 1
thumbzoomMisumi USA.7536ES3H56-S345.61In StockWEG345.6 @ 1
