- mpnDCGT3251AL3
- brandname: Widia
- manufacturername: Widia

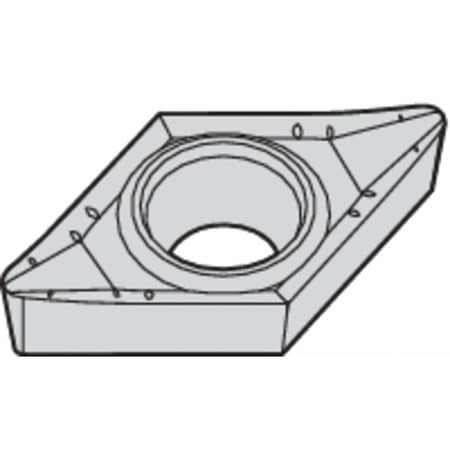

WIDIA DCGT3251AL3 HWK15 High Performance Aluminum Turning Inserts, DCGT-AL3, Carbide, 0.016" / 0.4mm Radius, AL3 Geometry, Grade HWK15
- Brand: WIDIA
- PartNumber: 2022331
- Model: 2022331
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: WIDIA Products Group
- Label: WIDIA Products Group
Attributes
| Key | Value |
|---|
| ANSI Code | DCGT3251AL3 |
| ANSI Number | DCGT3251AL3 |
| Brand | WIDIA |
| Cast Iron (K) Compatibi. | No |
| Catalog Page | N/A |
| Chip-Breaker | Yes |
| Chip-Breaker Code | AL3 |
| Chip-Breaker Style | On One Side |
| Clearance Angle | 7 Degrees, 7 ? |
| Coating | TiAlN, Uncoated |
| Coolant Fed | Non-Coolant Through |
| Corner Radius | 1, 1/64 in |
| Country of Origin | Varies |
| Country of Origin (subj. | Austria, Multiple |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 11.63mm |
| Finish - Machining | TiAlN, Bright (Uncoated) |
| For Use With | Toolholders, Boring Bars |
| Grade | HCK10, HWK15 |
| Hardened (H) Compatibil. | No |
| Included Angle | 55 ?, 55 Degrees |
| Inscribed Circle | 3/8 in, 3 |
| Insert Application | Finishing |
| Insert Code | DCGT3, DCGT32.51 |
| Insert Holding Type | 40 Degrees to 60 Degre. |
| Insert Material | Carbide |
| Insert Shape | Diamond |
| Insert Size | 3251 |
| Insert Style | DCGT |
| Insert Thickness | 0.1563" |
| ISO Number | DCGT11T304AL3 |
| Item | Diamond Turning Insert |
| Item? | 433A93 |
| Manufacturer Grade | HWK15 |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch, Decima. |
| Mfr. Model? | DCGT3251AL3 |
| Mounting Hole Dia. | 0.173" |
| Mounting Style | Screw |
| No. of Edges | 2 |
| Non Ferrous (N) Compati. | Yes |
| Nose Radius | 0.016" |
| Number of Cutting Edges | 2 |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N |
| Rake | Positive |
| Relief Angle | 7 Degrees |
| Shape | Rhombic |
| Stainless (M) Compatibi. | No |
| Steel (P) Compatibility | No |
| Super Alloy (S) Compati. | No |
| Thickness | 2.5, 5/32 in |
| UNSPSC | 23171618 |
| Workpiece Compatibility | Nonferrous (N) |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Grainger | 433A93 | 13.94 | 1 | 10 | | WIDIA | | 13.94 @ 10 |
 | Zoro | G2908031 | 16.49 | 10 | 10 | 26 | Widia Metal Removal | 0.15 | 16.49 @ 10 |
