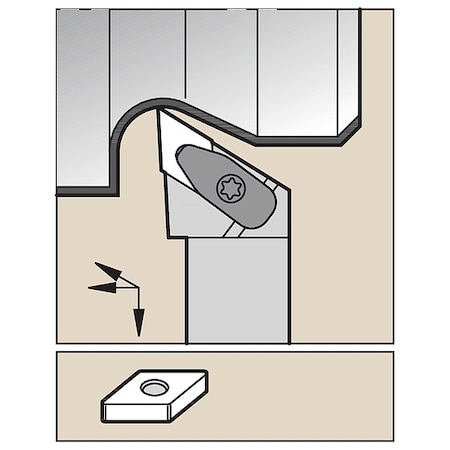

WIDIA DDJNR2525M11KC04 DDJN D-Style Clamping Toolholder for Negative Inserts, 93? Angle, Steel, 25mm Square Shank, Right, 150mm Length

WIDIA DDJNR2525M11KC04 DDJN D-Style Clamping Toolholder for Negative Inserts, 93? Angle, Steel, 25mm Square Shank, Right, 150mm Lengthzoom

Attributes

Key Value
ANSI CodeDDJNR2525M11KC04
Approach Angle93 Degrees
Compatible Hardware15IP Clamp Screw, 15IP .
Coolant FedNon-Coolant Through
Cutting ApplicationProfiling, Turning
Cutting DirectionRight Hand
Cutting Length11.6280mm
Insert Clearance Angle0 Degrees
Insert Holding TypeTop and Hole Clamping
Insert Shape55 Degrees Diamond
Insert Size110408
Insert StyleDN
ISO NumberDDJNR2525M11KC04
ItemIndexable Turning Toolh.
MaterialSteel
Number of Inserts Requi.1
Overall Length150.00mm
RakeNegative
ShankSquare
Shank Height25.00mm
Shank Length121.20mm
Shank Width25.00mm
Side Cutting Edge Angle-3 Degrees
Toolholder StyleDDJN

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3786719156.991In StockWidia0.9156.99 @ 1
