WIDIA 4158048

B01MPYCK4P

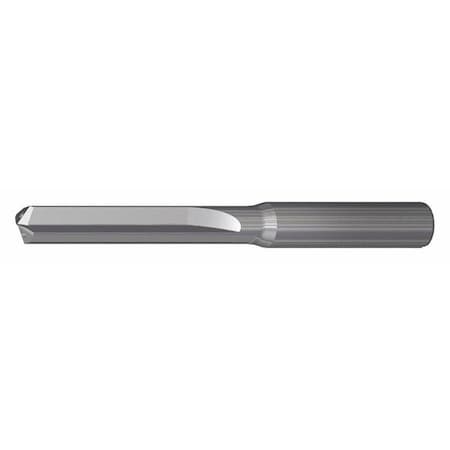

WIDIA TDG532A08000 TOP Drill G TDG532A Drill, 8 mm Dia, 130? Cutting Angle, Right Hand Cut, Carbide, Uncoated

WIDIA TDG532A08000 TOP Drill G TDG532A Drill, 8 mm Dia, 130? Cutting Angle, Right Hand Cut, Carbide, Uncoatedzoom

Attributes

Key Value
Aircraft DrillNo
ApplicationMetalworking
Coolant FedCoolant Through
Cutting DirectionRight Hand
Decimal Equivalent0.3150
Depth x Dia. Ratio5xD
Depth:Dia. Ratio5xD
Drill Bit Dimension TypeMetric
Drill Bit FinishBlack and Gold Oxide
Drill Bit GroupingDrill Bit, Individual
Drill Bit MaterialCarbide
Drill Bit Point Angle130 Degrees, 130 Degre.
Drill Bit Point Type4 Facet Point
Drill Bit Size8.00 mm
Drill Diameter ToleranceK7
Drill Length ClassJobber Length
Drill Point Length1.8650 mm
Drilling Depth43.00mm
FinishBlack and Gold Oxide
Finish - MachiningBright (Uncoated)
Flute Length53.00 mm
Flute TypeHelical
Helix Angle0 Degrees
ItemJobber Length Drill Bit.
List NumberTDG532
MaterialCarbide
Material - MachiningCarbide
Material Grade - Machin.WN10HD
Maximum Drilling Depth43.00mm, 43.00 mm
Measurement SystemMetric
Number of Coolant Holes2
Number of Flutes2
Overall Length91.00 mm
Primary Material Applic.Cast Iron, Non Ferrous .
Primary Material Applic.K, N
SeriesTDG532
Shank Dia.8.00 mm
Shank Length36.00mm, 36.00 mm
Shank TypeStraight
Shank Type - MachiningStraight
Sheeter DrillNo
StandardsANSI, DIN 6535, ISO

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG252880895.1911Widia0.0595.19 @ 1
grainger.caWIDTDG532A08000157.905050861In StockWIDIA0.048157.90505086 @ 1
