WIDIA 3850942

B01MPYD392

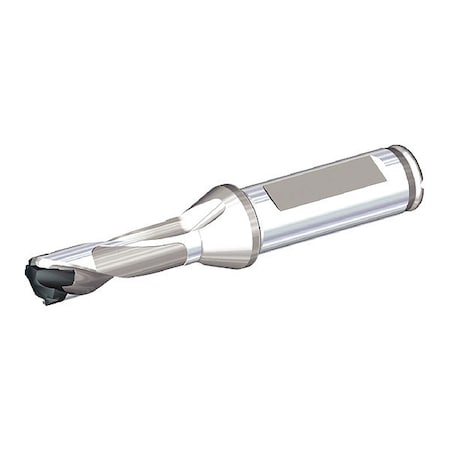

WIDIA TDM150R3SCF20M TOP Drill M1 Modular Drill Body, 15 mm Cutting Diameter, 3xD, 20 mm Flanged Shank, W24 Seat Size

WIDIA TDM150R3SCF20M TOP Drill M1 Modular Drill Body, 15 mm Cutting Diameter, 3xD, 20 mm Flanged Shank, W24 Seat Sizezoom

Attributes

Key Value
ANSI CodeTDM150R3SCF20M
Body Length50.00mm
Coolant FedCoolant Through
Cutting DirectionRight Hand
Depth x Dia. Ratio3xD
Diameter20.00mm
Flute Length66.00mm
IncludesInsert Wrench
Insert StyleTDM1
ISO NumberTDM150R3SCF20M
ItemExchangeable Drill Tip
Material - MachiningHigh Speed Steel
Max. Dia.15.9900mm
Max. Drill Dia.48.00mm
Max. Drilling Depth15.99mm
Min. Drill Dia.15.00mm
Overall Length121.50mm
Seat SizeW24
Shank Dia.20.00mm
Shank Dia. Measurement .Metric
Shank Length50.00mm
Shank Type - MachiningStraight with Three Fla.
Spiral DirectionRight Hand
Toolholder StyleTDM

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG3920285290.011Widia0.66290.0 @ 1
