WIDIA 4173544

B01M5GC8M2

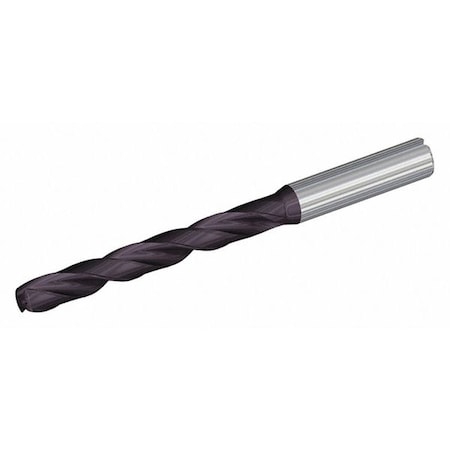

WIDIA TDS504A20000 TOP Drill S+ TDS504A, 20 mm Diameter, 132? Cutting Angle, Right Hand Cut, 23TDS Point, 12XD, Carbide, TiAlN Coating

WIDIA TDS504A20000 TOP Drill S+ TDS504A, 20 mm Diameter, 132? Cutting Angle, Right Hand Cut, 23TDS Point, 12XD, Carbide, TiAlN Coatingzoom

Attributes

Key Value
ApplicationMetalworking
Coolant FedCoolant Through
Coolant ThroughYes
Country of Origin (subj.Germany
Cutting DirectionRight Hand
Decimal Equivalent0.7874
Depth x Dia. Ratio12xD
Depth:Dia. Ratio12xD
Drill Bit Dimension TypeMetric
Drill Bit FinishTiAlN
Drill Bit MaterialSolid Carbide
Drill Bit Point Angle132 Degrees
Drill Bit Point TypeTDS Point
Drill Bit Size20.00mm
Drill Diameter ToleranceM7
Drill Length ClassJobber Length
Drill Point Length4.3160mm
Drilling Depth240.00mm
Finish - MachiningTiAlN
Flute Length281.00 mm
Flute TypeSpiral
GradeWU20PD
Helix Angle30 Degrees
ItemJobber Length Drill Bit
List NumberTDS504
Material - MachiningCarbide
Material Grade - Machin.WU20PD
Maximum Drilling Depth240 mm
Measurement SystemMetric
Number of Coolant Holes2
Number of Flutes2
Number of Pieces1
Overall Length334.00 mm
Point TypeTDS Point
Primary Material Applic.Cast Iron, Stainless St.
Primary Material Applic.K, M, P
SeriesTDS504
Shank Dia.20.00 mm
Shank Length50.00 mm
Shank TypeStraight
Shank Type - MachiningStraight
Sheeter DrillNo
Spiral DirectionRight Hand
StandardsANSI, DIN 6535,ISO

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG76775791454.01In Stock38Widia1.831454.0 @ 1
