WIDIA VBMT331 WP15CT

B01NA8VFC8

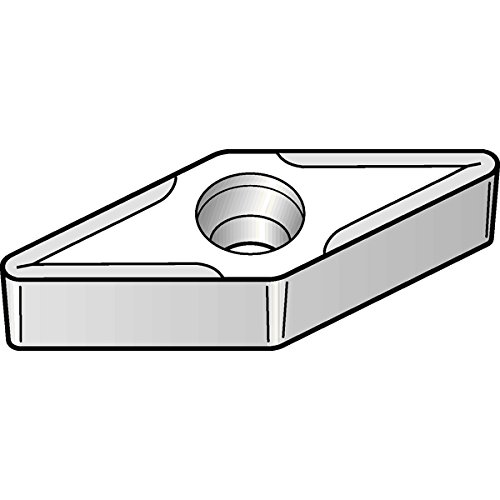

WIDIA VBMT331 WP15CT Victory VBMT High Performance Turning Inserts, Carbide, 0.0156"/0.4 mm Radius, CVD Grade WP15CT

WIDIA VBMT331 WP15CT Victory VBMT High Performance Turning Inserts, Carbide, 0.0156"/0.4 mm Radius, CVD Grade WP15CTzoom

Attributes

Key Value
ANSI CodeVBMT331
Chip-BreakerNone
Chip-Breaker StyleOn One Side
Clearance Angle5 Degrees
Coolant FedNon-Coolant Through
Corner Radius1/64 in
Cutting ApplicationTurning
Cutting DirectionNeutral
Cutting Edge Length16.00mm
Finish - MachiningTiN
Included Angle35 Degrees
Inscribed Circle0.375"
Insert Holding Type40 Degrees to 60 Degre.
Insert StyleVBMT
ISO NumberVBMT160404
ItemTurning Insert
Manufacturer GradeWP15CT
Material - MachiningCarbide
Measurement SystemFractional Inch
Number of Cutting Edges2
Primary Material Applic.Steel
Primary Material Applic.P
RakePositive
Seat Size331
Secondary Material Appl.Cast Iron
Secondary Material Appl.K
ShapeRhombic
Thickness3/16 in
