- mpnWNGG432FS
- brandname: WIDIA
- manufacturername: WIDIA

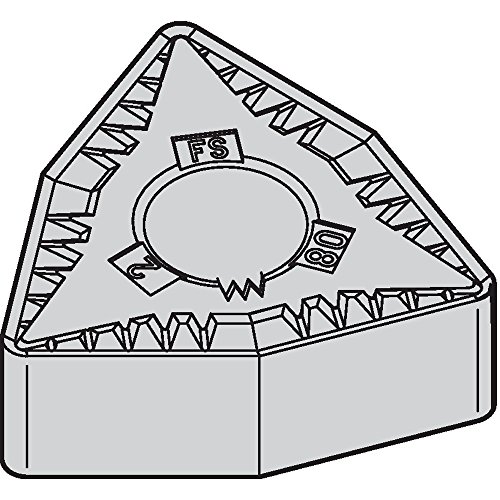

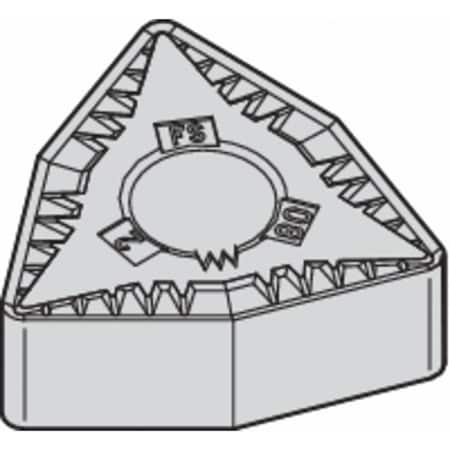

WIDIA WNGG432FS WU10HT Victory WNGG-FS High Performance Turning Inserts, Carbide, 0.031" / 0.8mm Radius, Finishing High-Temp, Grade WU10HT (Pack of 5)
- Brand: WIDIA
- PartNumber: 5550004
- Model: 5550004
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: WIDIA Products Group
- Label: WIDIA Products Group
Attributes
| Key | Value |
|---|
| ANSI Code | WNGG432FS |
| ANSI Number | WNGG432FS |
| Cast Iron (K) Compatibi. | Yes |
| Chip-Breaker | Yes, FS |
| Chip-Breaker Code | FS |
| Chip-Breaker Style | Double Sided |
| Clearance Angle | 0 Degrees, 0 Degrees |
| Coating | ALOX-SN |
| Coating Process | PVD |
| Corner Radius | 1/32", 1/32 in |
| Country of Origin (subj. | United States |
| Cutting Application | Outside and Inside Diam. |
| Cutting Direction | Neutral |
| Cutting Edge Length | 8.69mm |
| Finish - Machining | Bright (Uncoated), AlTiN |
| For Use With | Toolholders, Boring Bars |
| Grade | WS25PT |
| Hardened (H) Compatibil. | No |
| Included Angle | 80 Degrees, 80 Degrees |
| Inscribed Circle | 0.500", 1/2" |
| Insert Application | Finishing |
| Insert Holding Type | Straight Hole |
| Insert Material | Carbide |
| Insert Shape | Trigon |
| Insert Size | 432 |
| Insert Style | WNGG |
| Insert Thickness | 0.1875" |
| ISO Number | WNGG080408FS |
| Item | Turning Insert |
| Manufacturer Grade | WU10HT, WS25PT |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Hole Dia. | 0.203" |
| Mounting Style | Clamp |
| No. of Edges | 6 |
| Non Ferrous (N) Compati. | Yes |
| Nose Radius | 0.031" |
| Number of Cutting Edges | 6 |
| Primary Material Applic. | Nickel, Stainless Steel. |
| Primary Material Applic. | M, S |
| Rake | Negative |
| Relief Angle | 0 Degrees |
| Seat Size | 432 |
| Secondary Material Appl. | Aluminum, Brass, Bronze. |
| Secondary Material Appl. | N, P, K, N, P |
| Shape | Trigon |
| Stainless (M) Compatibi. | Yes |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compati. | Yes |
| Thickness | 3/16", 3/16 in |
| Through Hole Inside Dia. | 0.2030", 0.2030 in |
| Workpiece Compatibility | Cast Iron (K), Nonferro. |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| grainger.ca | WID5550004 | 15.48144198 | 1 | 5 | | WIDIA | 0.25 | 15.48144198 @ 5 |
 | Zoro | G2816727 | 144.3 | 10 | 5 | 27 | Widia | | 144.3 @ 10 |
