Description:

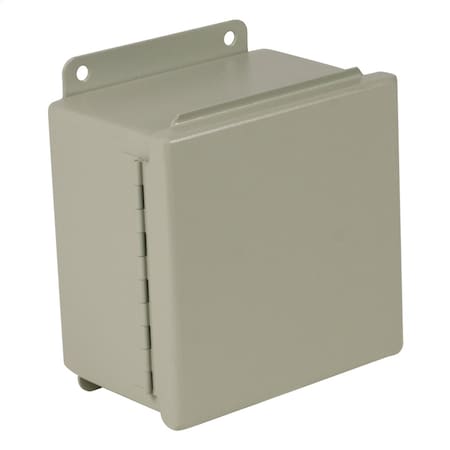

The B483611CH is produced by Wiegmann and is described as a WIEGMANN B483611CH JICCHOIL-TIGHTCS48X36X11
Weight:
129.0
Weight:
129.0 LB
Preferred Price:
2134.62
Price:
2134.62
Min Simple Price:
1206.0
Absolute Min Price:
1712.52
Min Price:
1712.52
Dimensions:
[48.0, 36.0, 11.0]
qty:
21
simpleSku:
NDkxMA:::B483611CH
sku:
NDkxMA::HK:B483611CH@y0
condition:
11
seller:
Automation Direct
amzMan:
wiegmann
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Application | Intended for use as electrical junction boxes, terminal wiring boxes, and instrument housings. Hinged door provides convenient access. Designed to provide protection from dust, dirt, oil, and water. |
| Approvals | CSA, UL |
| Certified Listed, Standard | cULus |
| Color | Ansi-61 Gray Textured |
| Composition | Metallic |
| Construction | Continuously Welded Seams |
| Cover Design | Hinged |
| Cover Type | Hinged Cover |
| Cubic Capacity | 19008 cu.in |
| Depth | 11 in |
| Each - Width, Width | 36.000 in |
| Family Series | Wiegmann Enclosures, B-CH Series |
| Features | Bodies and doors fabricated from 14 gauge steel. Continuously welded seams ground smooth, less knockouts or holes. Doors are sealed with poured-in-place polyurethane gasket. External screw clamps on door. Continuously hinged door is removable by pulling hinged pin. Print pocket is provided. Door and body stiffeners are provided for added rigidity. Collar studs are provided for mounting optional back panels. External mounting feet. Ground stud located in door. |
| Finish, Finish Type | Textured |
| Gross Weight, Net Weight | 129 lbs |
| Height | 48 in |
| Item Number, Manufacturer Part Number | B483611CH |
| Latches Type, Latching Mechanism | Clamps |
| Listings | UL, CSA |
| Manufacturer | Wiegmann |
| Material | Steel, Carbon Steel |
| Mounting, Mounting Type | External Mounting Feet |
| Nema Rating | 12 |
| Nominal Depth | 11 " |
| Nominal Height | 48 " |
| Nominal Width | 36 " |
| Number of Doors | 1 |
| Options Included | Gasketed Cover |
| Panel Included, Window/Clear Cover | No |
| Product Series | B-CH |
| Type | Enclosure |
| UL Listed | Yes |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Automation Direct | B483611CH | 1206.0 | 1206.0 | 1 | 1 | Wiegmann | 129.0 | 1206.0 @ Qty: 1+ | |
 | Galco | B483611CH-WIEG | 1549.7 | 1549.7 | 1 | In Stock | Wiegmann | 129.0 | 1549.7 @ Qty: 1+ | |
| standardelectricsupply.com | 2261947 | 1696.9 | 1696.9 | 1 | In Stock | Wiegmann | 1696.9 @ Qty: 1+ | |||
 | MRO Supply | 1089640 | 2056.2 | 2056.2 | 1 | In Stock | Wiegmann | 2056.2 @ Qty: 1+ | ||
 | Zoro | G7340115 | 2243.99 | 2243.99 | 1 | In Stock | Wiegmann | 2243.99 @ Qty: 1+ |
