Attributes
| Key ^ | Value |
|---|---|
| Actual Depth, Depth | 3.5 in |
| Actual Width | 2.750 in |
| Application | Designed to hold all standard brands of miniature oil-tight pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil, and water. |
| Approvals | CSA, UL |
| Brand, Manufacturer | Wiegmann |
| Color | ANSI 61 Gray Polyester Powder |
| Composition | Metallic |
| Conduit Size | No Conduit Entrance Holes Provided |
| Construction | Continuously Welded Seams |
| Cover Design | Lift-Off Cover |
| Cover Type | Pushbutton;Screw |
| Current Stock | 22 |
| Dimensions | 7.00 in H x 2.75 in W x 3.50 in D |
| Family Series | Wiegmann Enclosures, PBGX Series |
| Features | Fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" miniature pushbutton holes accept all standard brands of miniature push buttons, switches, and pilot lights. Grounding provisions provided. |
| Gross Weight, Net Weight | 3 lbs |
| Height | 7 in |
| Hole Size, Hole Size (mm) | 22 mm |
| Includes | Captive Cover Screws, Closed Cell Oil Resistant Gasket, Grounding Stud |
| International Shipping, RoHS | No |

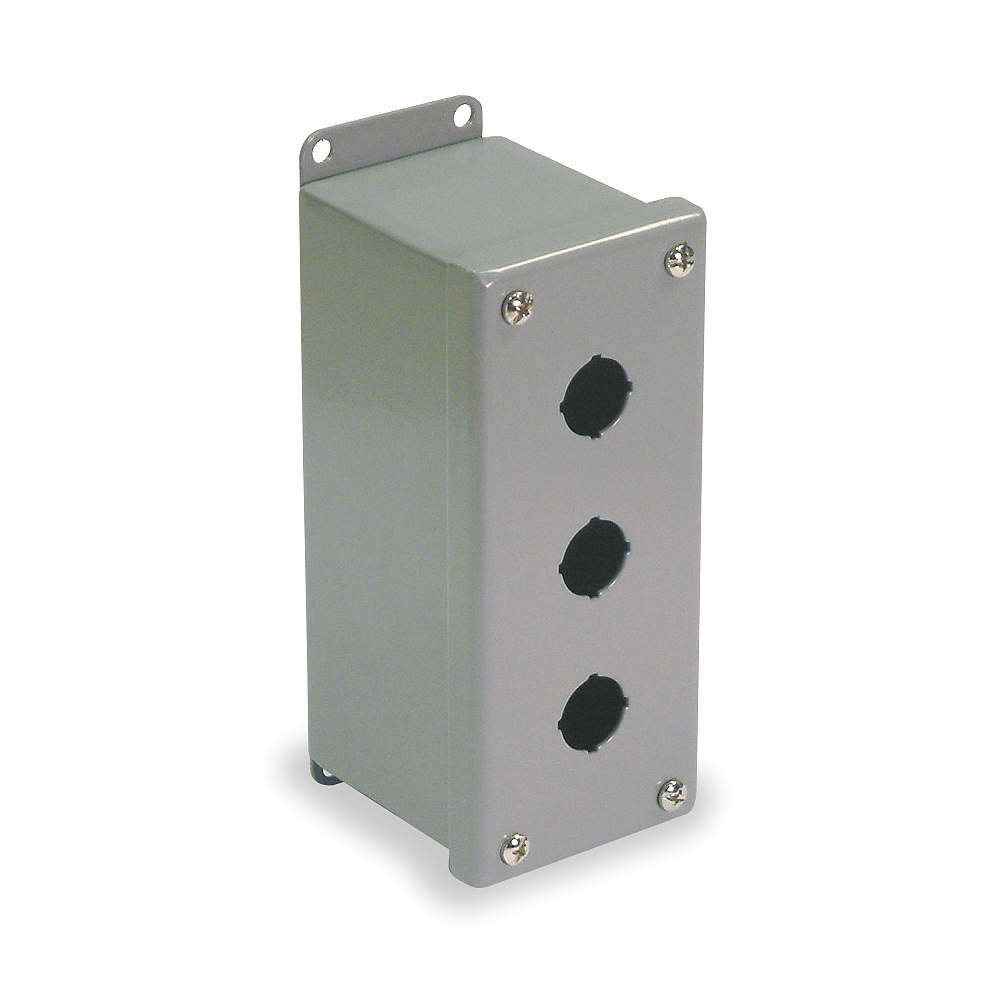

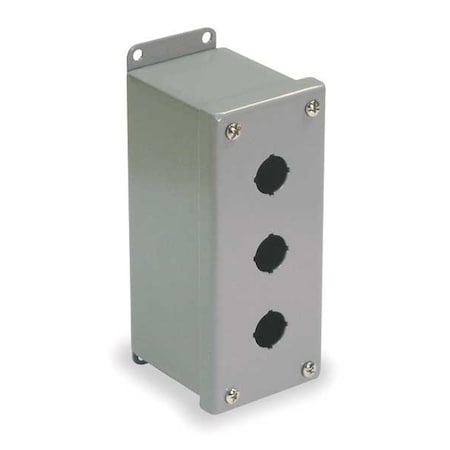

| Item | Pushbutton Enclosure |
| Item Number, Manufacturer Part Number, Mpn | PBGX3 |
| Latching Mechanism | Screws |
| Material | Steel |
| Material, Material type | Carbon Steel |
| Mounting Style | External Feet |
| NEMA Rating | 12, 13 |
| Nominal Depth | 3 " |
| Number of Columns | 1 |
| Number of Holes | 3 |
| Product Series | PBGX |
| SKU | ZO-G1358883 |
| Standard, Standards | cULus |
| SubCategory | Electrical |
| Type | Miniature |
| UPC, UPC Code | 786725431861 |
| Width | 2.75 in |
