mpn:
brand:
manufacturer:
MPN:
Description:

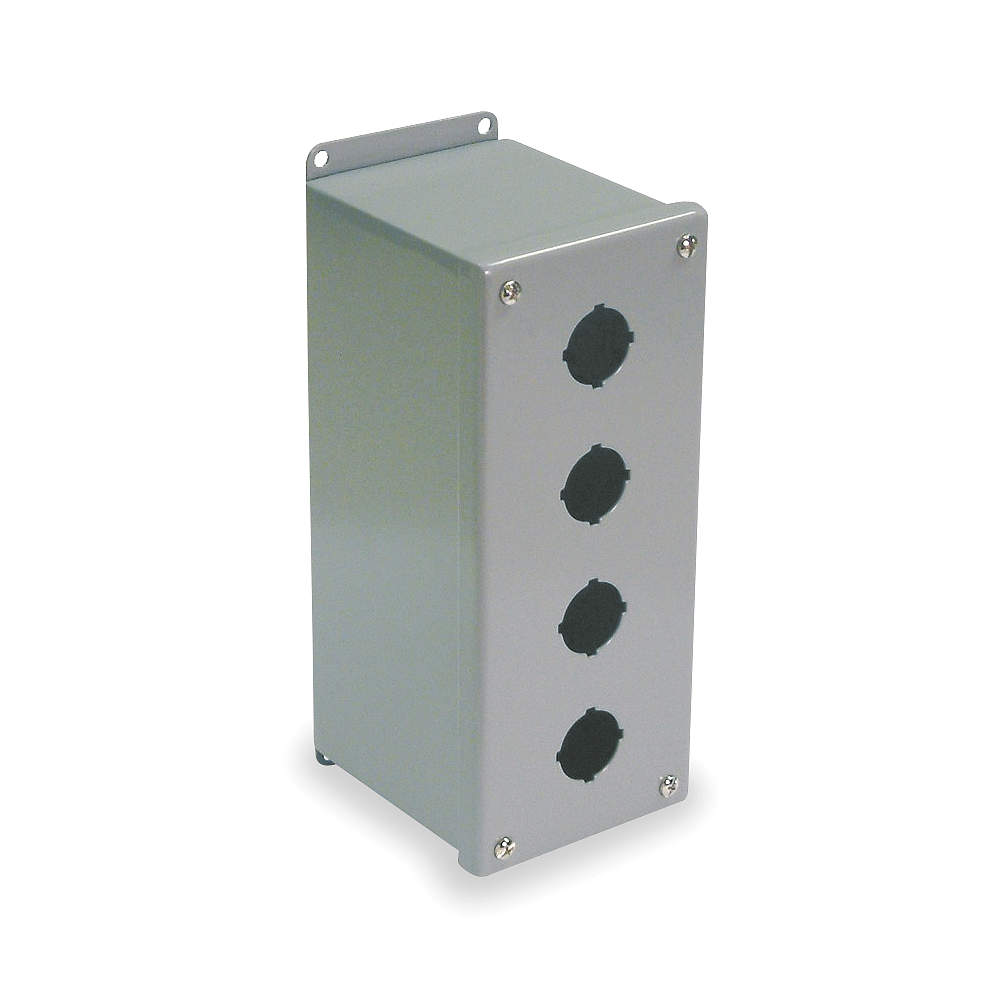

Pushbutton Enclosure, Number of Columns 1, Number of Holes 4, NEMA Rating 12, 13, Conduit Size No Conduit Entrance Holes Provided, Dimensions 8.88 in H x 2.75 in W x 3.50 in D, Hole Size 22 mm, Material Carbon Steel, Height 8.88 in, Width 2.75 in, Depth 3.5 in, Color ANSI 61 Gray Polyester Powder, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Grounding Stud, Type Miniature, Mounting Style External Feet, Standards cULus
Weight:
4.0
Weight:
3.0 LB
Preferred Price:
196.47
Min Offer Price:
92.79
Price:
196.47
Min Simple Price:
111.0
Absolute Min Price:
157.62
Min Price:
157.62
Dimensions:
[14.0, 6.0, 4.0]
qty:
21
simpleSku:
NDkxMA:::PBGX4
sku:
NDkxMA::HQ:PBGX4@y0
condition:
11
seller:
Automation Direct
amzMan:
wiegmann
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Actual Depth, Depth | 3.5 in |
| Actual Height | 8.880 in |
| Actual Width | 2.750 in |
| Approvals | CSA, UL |
| Color | ANSI 61 Gray Polyester Powder |
| Composition | Metallic |
| Conduit Size | No Conduit Entrance Holes Provided |
| Cover Design | Lift-Off Cover |
| Dimensions | 8.88 in H x 2.75 in W x 3.50 in D |
| Family Series | Wiegmann Enclosures, PBGX Series |
| Features | Fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" miniature pushbutton holes accept all standard brands of miniature push buttons, switches, and pilot lights. Grounding provisions provided. |
| Finish Type | Polyester Powder |
| Gross Weight | 2.82 lbs |
| Height | 8.88 in |
| Hole Size, Hole Size (mm) | 22 mm |
| Includes | Captive Cover Screws, Closed Cell Oil Resistant Gasket, Grounding Stud |
| Item | Pushbutton Enclosure |
| Item Number, Manufacturer Part Number | PBGX4 |
| Latching Mechanism | Screws |
| Listings | UL, CSA |
| Manufacturer | Wiegmann |
| Material | Steel, Carbon Steel |
| Mounting Style | External Feet |
| Mounting, Mounting Type | External Mounting Plates |
| NEMA Rating | 12, 13 |
| Net Weight | 2.62 lbs |
| Nominal Depth | 3 " |
| Number of Columns | 1 |
| Number of Holes | 4 |
| Product Series | PBGX |
| RoHS | No |
| Standards | cULus |
| Type | Miniature |
| Width | 2.75 in |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Automation Direct | PBGX4 | 111.0 | 111.0 | 1 | 54 | Wiegmann | 4.0 | 111.0 @ Qty: 1+ | |
 | Zoro | G3408946 | 122.99 | 122.99 | 1 | 47 | Wiegmann | 3.35 | 122.99 @ Qty: 1+ | |
 | Galco | PBGX4-WIEG | 133.5 | 133.5 | 1 | 3 | Wiegmann | 2.82 | 133.5 @ Qty: 1+ | |
| standardelectricsupply.com | 2260171 | 156.31 | 156.31 | 1 | In Stock | Wiegmann | 156.31 @ Qty: 1+ | |||
 | MRO Supply | 1091541 | 189.4 | 265.16 | 2 | In Stock | Wiegmann | 189.4 @ Qty: 2+ | ||
 | gordonelectricsupply.com | PBGX4 | 215.93 | 215.93 | 1 | In Stock | 380 | WIEGMANN | 215.93 @ Qty: 1+ | |
 | Raptor Supplies | AC3PDQ | 308.433294 | 308.433294 | 1 | In Stock | WIEGMANN | 308.433294 @ Qty: 1+ |
