Description:

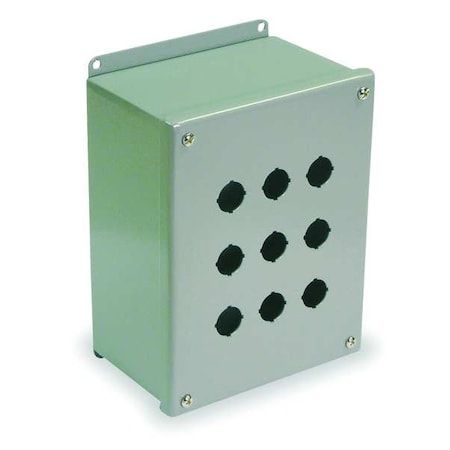

Pushbutton Enclosure, Number of Columns 3, Number of Holes 9, NEMA Rating 12, 13, Conduit Size No Conduit Entrance Holes Provided, Dimensions 8.50 in H x 6.50 in W x 4.25 in D, Hole Size 22 mm, Material Carbon Steel, Height 8.5 in, Width 6.5 in, Depth 4.25 in, Color ANSI 61 Gray Polyester Powder, Includes Captive Cover Screws, Closed Cell Oil Resistant Gasket, Grounding Stud, Type Miniature, Mounting Style External Feet, Standards cULus
Weight:
6.0
Weight:
6.0 LB
Preferred Price:
291.0
Min Offer Price:
177.88
Price:
291.0
Min Simple Price:
164.5
Absolute Min Price:
233.42
Min Price:
233.42
Dimensions:
[12.0, 8.0, 6.0]
qty:
21
simpleSku:
NDkxMA:::PBGX9
sku:
NDkxMA::2W:PBGX9@y0
condition:
11
seller:
Grainger
amzMan:
wiegmann
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| Actual Depth, Depth | 4.25 in |
| Actual Height | 8.500 in |
| Actual Width | 6.500 in |
| Application | Designed to hold all standard brands of miniature oil-tight pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil, and water. |
| Color | ANSI 61 Gray Polyester Powder |
| Conduit Size | No Conduit Entrance Holes Provided |
| Dimensions | 8.50 in H x 6.50 in W x 4.25 in D |
| Features | Fabricated from 14 gauge steel. Continuously welded seams ground smooth. Closed cell oil resistant neoprene gasket. External mounting plates, top and bottom of enclosure. Captivated cover screws thread into sealed wells. Standard "4-way" miniature pushbutton holes accept all standard brands of miniature push buttons, switches, and pilot lights. Enclosures have internal detachable hinges to hold cover open during wiring, yet permit quick removal. Grounding provisions provided. |
| Height | 8.5 in |
| Hole Size | 22 mm |
| Includes | Captive Cover Screws, Closed Cell Oil Resistant Gasket, Grounding Stud |
| Item | Pushbutton Enclosure |
| Material | Carbon Steel |
| Mounting Style | External Feet |
| Mounting, Mounting Type | External Mounting Plates |
| NEMA Rating | 12, 13 |
| Number of Columns | 3 |
| Number of Holes | 9 |
| Series | PBGX |
| Standards | cULus |
| Type | Miniature |
| Width | 6.5 in |
