WIKA LFS-220-100#/KPA-G

B07H2251SJ

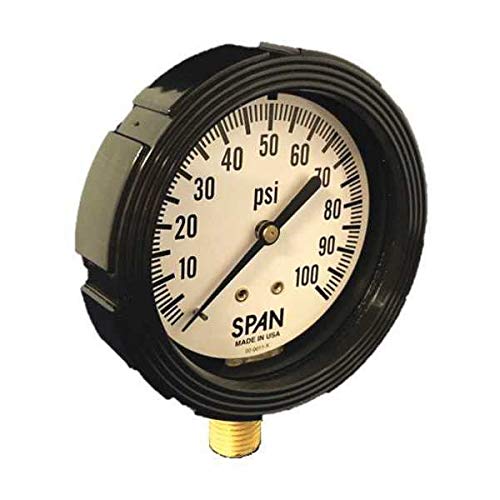

Pressure Gauge, 3-1/2" Dial Size, Bottom

Pressure Gauge, 3-1/2" Dial Size, Bottomzoom

Attributes

Key Value
Accuracy+/-2-1-2%
Accuracy GradeASME B40.1 Grade A
Accuracy ScaleMid-Scale
Ambient Operating Tempe.-40 Degrees to 150 Deg.
Bezel MaterialZytel Nylon
Bezel Mounting TypeRemovable
Blowout Safety BackNo
Calibration Certificate.No
Case ColorBlack
Case ConstructionCorrosion Resistant
Case Depth1.41 in
Case Diameter2.8 in
CharacteristicsWith Brass Internals
Cleaned for Oxygen Serv.No
ColorBlack
Connection LocationBottom
Connection Size1/4 in NPT
Country of Origin (subj.United States
Dial ColorWhite
Dial Face MaterialAluminum
Dial Size (In.)2-1/2
Diameter3.20"
Dry Dampening FeatureNone
Field FillableNo
For Use WithBrass, Industrial Appli.
Freeze Resistant Moveme.No
Gauge Accuracy+/-1.00%
Gauge Accuracy GradeGrade A - Industrial
Gauge ApplicationMobile Hydraulic Equipm.
Gauge Case ColorBlack
Gauge Case LiquidGlycerin
Gauge Case MaterialZytel Nylon
Gauge Connection Locati.Bottom
Gauge Connection Size1/4 in
Gauge Connection TypeMNPT
Gauge Filled WithGlycerin
Gauge Lens MaterialPlastic
Gauge Nominal Dial Size2 1/2 in
Gauge Primary Range Num.20
Gauge Primary Range Sma.20
Gauge Primary Range Uni.psi
Gauge Primary Range Val.0 to 100
Gauge Secondary Range U.kPa
Gauge Secondary Range V.0 to 100
Gauge Sensor MaterialBronze
Gauge Socket MaterialBrass
Gauge Special OptionsHeavy Duty
Gauge Wetted PartsBrass / Bronze
Graduations20 psi
Hazardous Location Rati.Not Rated
IncludesVent Plug
Includes Calibration Ce.No
Includes Mounting Hardw.No
Includes Vent PlugYes
IP/NEMA RatingIP65, NEMA 4X
ItemIndustrial Pressure Gau.
Lens MaterialAcrylic
Lens Material - GaugePlastic
Liquid FilledYes
Liquid-Filled CaseYes
Manufacturer Warranty L.1 yr
Manufacturers Warranty .1 yr
MaterialZytel Nylon
Max. Pressure (PSI)100
Movement MaterialCopper Alloy
Movement TypeSwiss
Nominal Dial Size2 1/2 in
Non-SparkingNo
Operating Temp. Range-20 Degrees to 150 Deg.
Panel-MountableNo
Pointer ColorBlack
Pointer MaterialAluminum
Pressure Gauge TypeGeneral Purpose Dial Pr.
Pressure Range0 to 100 psi
Pressure Range (Seconda.0 to 100 psi ( 0 to 690.
Pressure Range TypePressure
Primary Graduations20 / 20
Primary Pressure Range0 to 100
Primary Scale Minor Gra.20
Primary Scale Numeric I.20
Primary Scale Unitspsi
Process Connection Gend.Male
Process Connection Loca.Bottom
Process Connection Size1/4 in
Process Connection TypeNPT
Range0 to 100 psi
Removable BezelYes
Scale TypeDual
Secondary Pressure Range0 to 690 kPa
Secondary Scale UnitskPa
Sensor MaterialPhosphor Bronze
Sensor TypeBourdon Tube
SeriesLFS-220
Smallest Graduation5 psi
Socket MaterialBrass
Vibration ResistanceLiquid-Filled

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG592413028.591247Wika0.628.59 @ 1
AmazonTPB07H2251SJ35.181In Stock3WIKA35.18 @ 1
