Attributes
| Key ^ | Value |
|---|---|
| Accuracy | +/- 1% |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Operating Temperature Range, Process Temperature Range | -40 Degrees to 150 Degrees F |
| Bezel Gasket Material | Buna-N |
| Bezel Material, Gauge Case Material, Movement Material | 304 Stainless Steel |
| Bezel Mounting Type | Bayonet Ring |
| Blowout Safety Back, Includes Vent Plug, Liquid Filled, Liquid-Filled Case, Removable Bezel | Yes |
| Brand | Winters |
| Calibration Certificate Included, Cleaned for Oxygen Service, Field Fillable, Freeze Resistant Movement, Includes Calibration Certificate, Includes Mounting Hardware, International Shipping, Non-Sparking, Panel-Mountable | No |
| Case Color, Color, Gauge Case Color | Gray |
| Case Construction | Welded Joint |
| Case Depth | 1.95 in |
| Case Diameter | 3.964 in |
| Case Material, Gauge Sensor Material, Gauge Socket Material, Gauge Wetted Parts | Stainless Steel |
| Characteristics | Protects Against Vibration and Pulsation |
| Compatible Process Media | Oil |
| Connection Location, Gauge Connection Location, Process Connection Location | Bottom |
| Connection Size | 1/4 in NPT |
| Country of Origin (subject to change) | China |
| Current Stock | 3 |
| Dial Color | Glow-in-the-Dark White |
| Dial Face Color | Multiple |
| Dial Face Material, Pointer Material | Aluminum |
| Dial Size (In.) | 4 |
| Diameter | 5.260" |
| Dry Dampening Feature | None |
| For Use With | Compressors, Hydraulic and Oil Field Equipment, Process Industries, Pumps |
| Gauge Accuracy | +/-1.00% |
| Gauge Accuracy Grade | Grade 1A - Industrial |
| Gauge Application | Hydraulic Equipment, Oil Field Equipment, Pumps, Compressors and Process Industries |
| Gauge Case Liquid, Gauge Filled With | Glycerin |
| Gauge Connection Size, Process Connection Size | 1/4 in |
| Gauge Connection Type | MNPT |
| Gauge Lens Material, Lens Material | Polycarbonate |
| Gauge Nominal Dial Size, Nominal Dial Size | 4 in |
| Gauge Primary Range Values | -30 to 0 |
| Gauge Special Options | Heavy Duty |
| Hazardous Location Rating | Not Rated |
| Includes | Bayonet Ring, Glow-In-The-Dark White Dial, Liquid Filled Case, Restrictor Screw |
| IP/NEMA Rating | IP66, NEMA 4X |

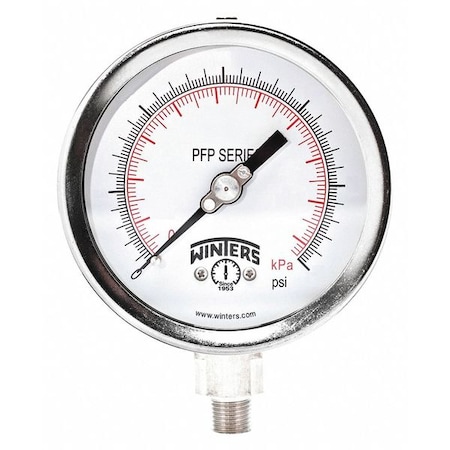

| Item | Industrial Vacuum Gauge |
| Lead Time | Expected to ship in 1-2 business days |
| Lens Material - Gauge | Plastic |
| Manufacturer Warranty Length, Manufacturers Warranty Length | 5 yr |
| Material | AISI 304 Stainless Steel |
| Mpn | PFP640WBG |
| Operating Temp. Range | -4 Degrees to 150 Degrees F |
| Over-Pressure Limit | 25% |
| Pointer Characteristics | Micrometer Adjustable |
| Pointer Color | Black |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range Type | Vacuum |
| Primary Pressure Range | 30 to 0 |
| Primary Scale Units | in Hg |
| Process Connection Gender | Male |
| Process Connection Type | NPT |
| Range | 30 in Hg Vac to 0 |
| Scale Type | Dual |
| Secondary Pressure Range | -101 to 0 |
| Secondary Scale Units | kPa |
| Sensor Material, Socket Material | 316L Stainless Steel |
| Sensor Type | Bourdon Tube |
| Series | PFP |
| SKU | ZO-G6629353 |
| SubCategory | Test Instruments |
| Vibration Resistance | Liquid-Filled |
