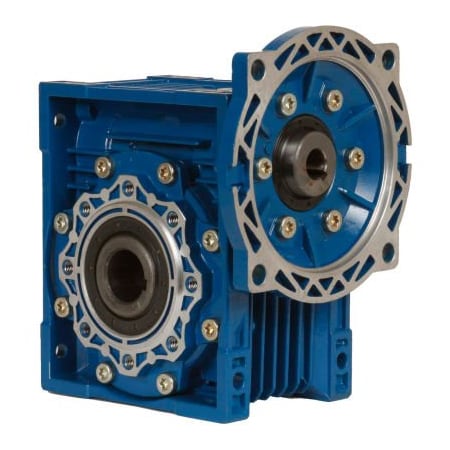

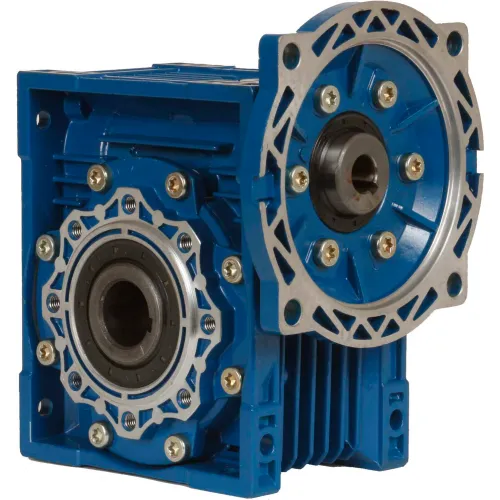

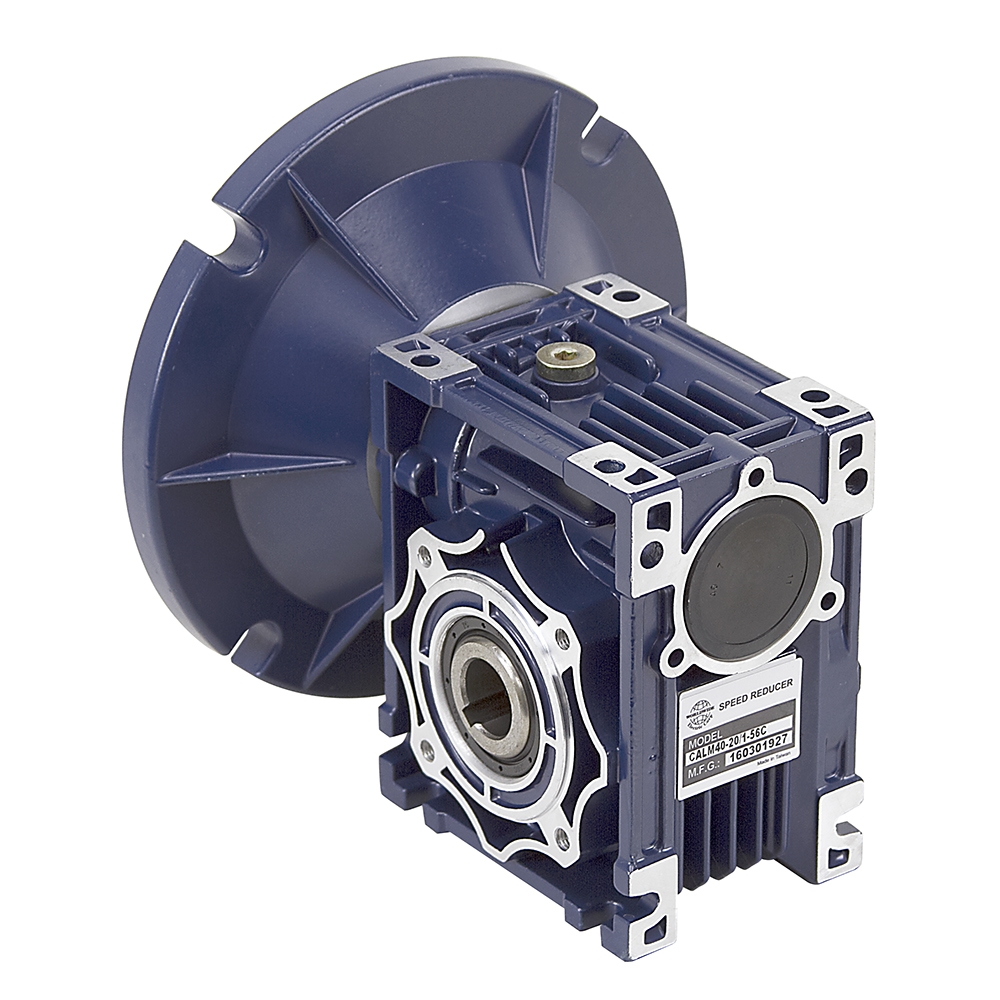

Worldwide Electric CALM40-15/1-56C Aluminum Worm Gear Reducer, 40mm, 15:1, 56C NEMA Frame

Worldwide Electric CALM40-15/1-56C Aluminum Worm Gear Reducer, 40mm, 15:1, 56C NEMA Framezoom

Attributes

Key Value
Back Mount90mm x 60mm
Box Size40 mm Center Distance
BrandWorld Wide Electric
Center Distance1.574 "
center distance mm40
Efficiency83 %
Family SeriesWorldwide Electric Corp.
Gear Ratio15:1
Gearbox TypeWorm
Gross Weight0 lbs
hp0.8
Input Bore5/8&QUOT keyed, 3/16&QU.
Input Bore Size0.625 "
Input Hp (1.0 S.F.)0.83 Hp Max
Input TypeFlange
Item NumberCALM40-15/1-56C
ManufacturerWorldwide Electric Corp.
Manufacturer Part NumberCALM40-15/1-56C
MaterialAluminum Alloy
materialAluminium
Max Input HP (@ 1750 RP.0.83 hp
Max OverHung Load (OHL)346
Model NumberCALM40-15/1-56C
Motor Frame SizeNEMA 56C
Motor Mount56C
nema frame56C
Net Weight0 lbs
Nominal Torque (in-lbs)370 in-lbs
Output Bore3/4&QUOT keyed, 3/16&Q.
Output RPM @ 1750 RPM I.117 RPM
output rpm at 1800 rpm .117
Output Shaft Diameter0.75 "
Output Shaft Thrust Load69 lbs. Max
Output Shaft TypeHollow Shaft
Output Speed (RPM)117 RPM
Output Torque370 in.-lb. Max
Over-Hung Load346 lbs. Max
Overall Size5.37&QUOT x 6.5&QUOT x .
Package Quantity1
Product SeriesCALM
Ratio15:1
Shpg.6.2 lbs.
Top & Bottom Mount70mm x 60mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomNational Supply NetworkB1742192174.941In StockWorldwide Electric Corporation174.94 @ 1
thumbzoomsurpluscenter.com13-1579-15-56C175.951In StockWorldWide Electric6.2175.95 @ 1
thumbzoomGlobal IndustrialWBB1742192188.951In StockWorldwide Electric Corporation188.95 @ 1
thumbzoomGalcoCALM40-15/1-56C-WWEC195.641In StockWorldwide Electric Corporation195.64 @ 1
thumbzoomZoroG104902061263.991In Stock10Worldwide Electric263.99 @ 1
