WorldWide Electric Corporation

B07D6KCXQ8

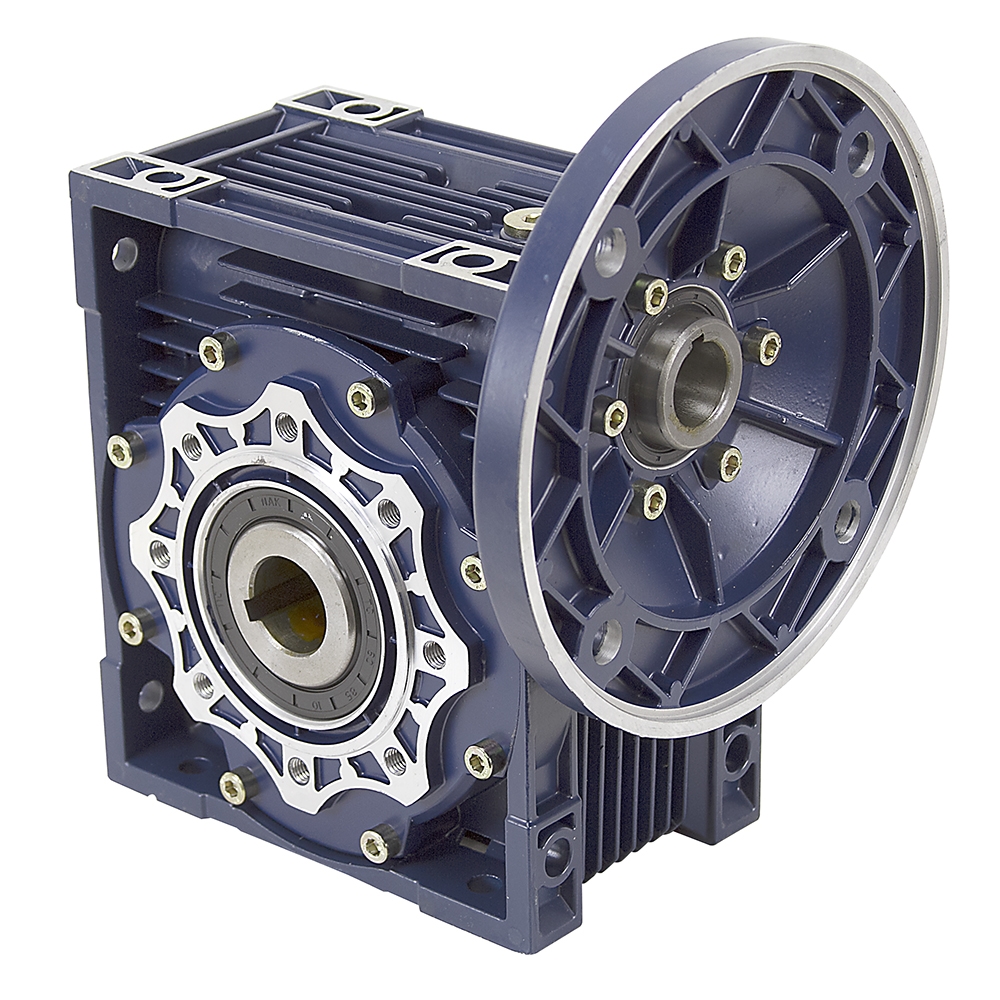

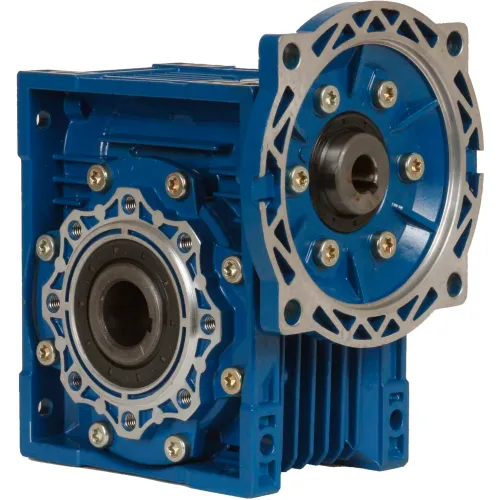

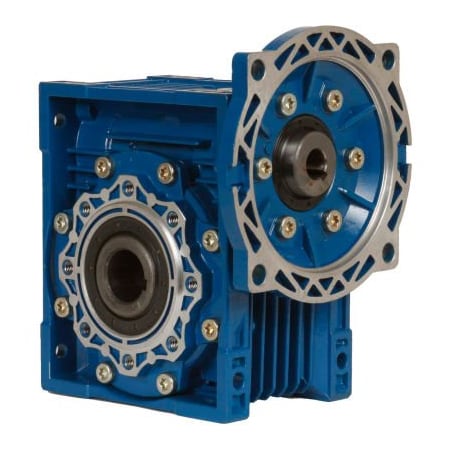

Worldwide Electric CALM90-20/1-145TC Aluminum Worm Gear Reducer, 90mm, 20:1, 145TC NEMA Frame

Worldwide Electric CALM90-20/1-145TC Aluminum Worm Gear Reducer, 90mm, 20:1, 145TC NEMA Framezoom

Attributes

Key Value
Back Mount172mm x 100mm
Box Size90 mm Center Distance
BrandWorld Wide Electric
Center Distance3.543 "
Efficiency86 %
Family SeriesWorldwide Electric Corp.
Gear Ratio20:1
Gearbox TypeWorm
Gross Weight0 lbs
Input Bore7/8&QUOT keyed, 3/16&QU.
Input Bore Size0.875 "
Input Hp (1.0 S.F.)5.33 Hp Max
Input TypeFlange
Item NumberCALM90-20/1-145TC
ManufacturerWorldwide Electric Corp.
Manufacturer Part NumberCALM90-20/1-145TC
MaterialAluminum Alloy
Max Input HP (@ 1750 RP.5.33 hp
Max OverHung Load (OHL)892
Model NumberCALM90-20/1-145TC
Motor Frame SizeNEMA 145TC
Motor Mount145TC
Net Weight0 lbs
Nominal Torque (in-lbs)3,288 in-lbs
Output Bore1-3/8&QUOT keyed, 5/16.
Output RPM @ 1750 RPM I.88 RPM
Output Shaft Diameter1.375 "
Output Shaft Thrust Load178 lbs. Max
Output Shaft TypeHollow Shaft
Output Speed (RPM)88 RPM
Output Torque3288 in.-lb. Max
Over-Hung Load892 lbs. Max
Overall Size9.62&QUOT x 6.5&QUOT x .
Package Quantity1
Product SeriesCALM
Ratio20:1
Shpg.28 lbs.
Top & Bottom Mount140mm x 100mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGlobal IndustrialWBB1742146464.951In StockWorldwide Electric Corporation464.95 @ 1
thumbzoomNational Supply NetworkB1742146482.511In StockWorldwide Electric Corporation482.51 @ 1
thumbzoomsurpluscenter.com13-1583-20-145TC503.11In StockWorldWide Electric28.0503.1 @ 1
thumbzoomGalcoCALM90-20/1-145TC-WWEC578.781In StockWorldwide Electric Corporation578.78 @ 1
thumbzoomZoroG204902145779.991In Stock7Worldwide Electric779.99 @ 1
